Johnson Controls ZY Series User Manual

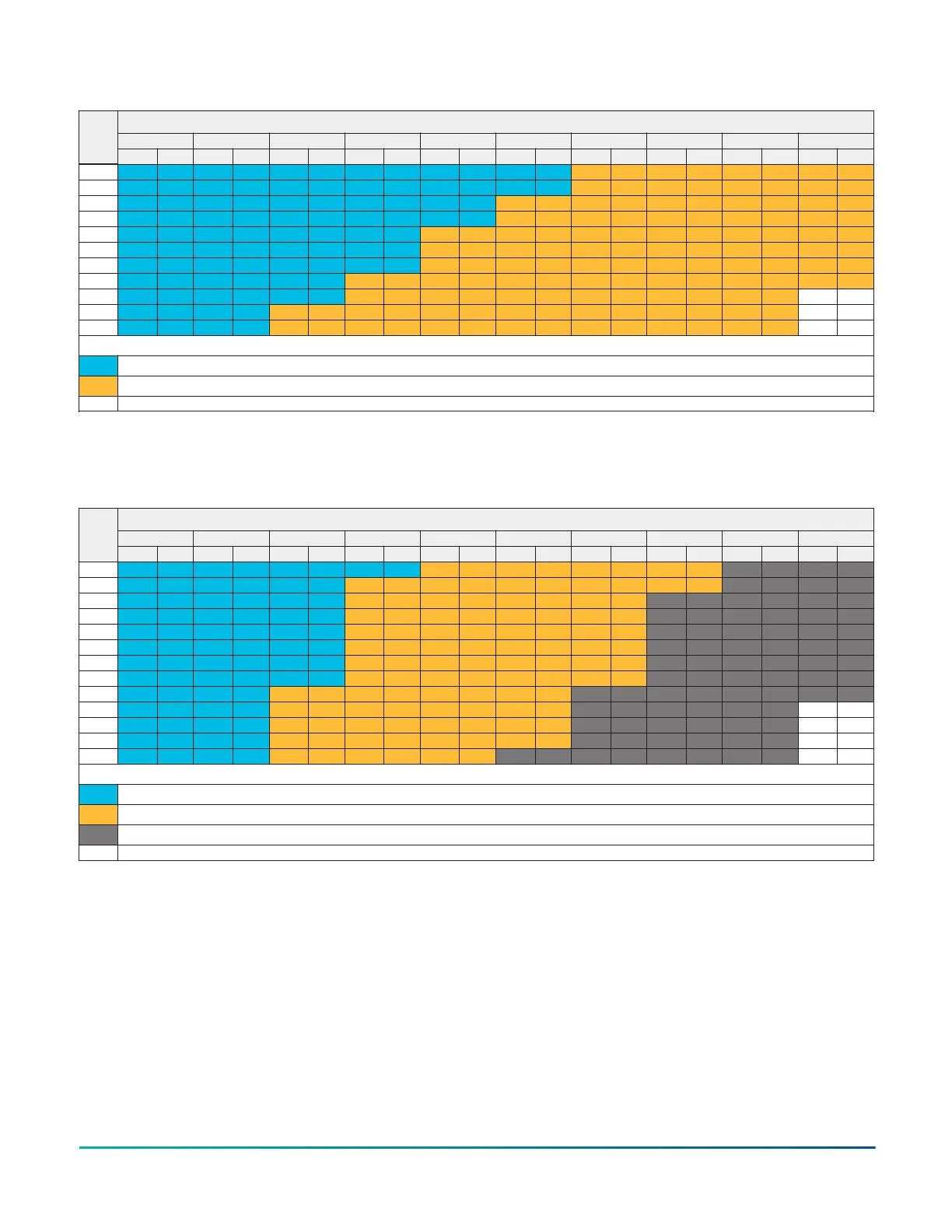

Table 44: ZY06 (5.0 Ton) Bottom Duct
1
AVAILABLE EXTERNAL STATIC PRESSURE - IWG
1
0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0
CFM
RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
1500 840 0.48 910 0.58 977 0.67 1042 0.77 1106 0.87 1166 0.98 1225 1.08 1280 1.19 1334 1.30 1384 1.41
1600 866 0.55 935 0.65 1003 0.74 1068 0.84 1131 0.94 1192 1.04 1250 1.15 1306 1.26 1359 1.37 1410 1.48
1700 892 0.63 961 0.72 1029 0.82 1094 0.92 1157 1.02 1218 1.12 1276 1.23 1332 1.33 1385 1.44 1436 1.56
1800 918 0.71 987 0.81 1055 0.90 1120 1.00 1183 1.10 1244 1.21 1302 1.31 1358 1.42 1411 1.53 1462 1.64
1900 944 0.80 1014 0.90 1081 1.00 1146 1.09 1209 1.19 1270 1.30 1329 1.40 1384 1.51 1438 1.62 1488 1.73
2000 971 0.90 1041 1.00 1108 1.09 1174 1.19 1237 1.29 1297 1.39 1356 1.50 1412 1.61 1465 1.72 1516 1.83
2100 999 1.01 1069 1.10 1136 1.20 1202 1.30 1265 1.40 1326 1.50 1384 1.60 1440 1.71 1493 1.82 1544 1.93
2200 1028 1.12 1098 1.21 1165 1.31 1231 1.41 1294 1.51 1355 1.61 1413 1.72 1469 1.82 1522 1.93 1573 2.05
2300 1058 1.24 1128 1.33 1195 1.43 1261 1.53 1324 1.63 1385 1.73 1443 1.83 1499 1.94 1552 2.05 -- --
2400 1090 1.36 1159 1.46 1227 1.55 1292 1.65 1355 1.75 1416 1.85 1474 1.96 1530 2.07 1583 2.18 -- --
2500 1122 1.49 1191 1.59 1259 1.68 1324 1.78 1387 1.88 1448 1.98 1506 2.09 1562 2.20 1615 2.31 -- --
Medium Static Option with Motor rated at 2.4-hp
High Static Option with Motor rated at 2.9-hp
-- Exceeds recommended blower speed
1 Blower performance includes gas heat exchangers and 2 in. filters. See STATIC RESISTANCE table for additional applications. Note:
See RPM SELECTION table to determine desired motor sheave setting and to determine the maximum continuous BHP. kW = 0.857
x BHP
Table 45: ZY07 (6.0 Ton) Bottom Duct
1
AVAILABLE EXTERNAL STATIC PRESSURE - IWG
1
0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0
CFM
RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
1800 525 0.31 590 0.48 653 0.65 713 0.82 770 0.98 825 1.15 878 1.31 928 1.48 976 1.65 1022 1.83
1900 534 0.36 599 0.53 661 0.71 721 0.87 779 1.03 834 1.20 886 1.36 936 1.53 984 1.70 1030 1.88
2000 542 0.41 607 0.59 670 0.76 730 0.93 787 1.09 842 1.25 895 1.42 945 1.58 993 1.75 1039 1.93
2100 551 0.47 616 0.65 678 0.82 738 0.99 796 1.15 850 1.31 903 1.47 953 1.64 1001 1.81 1047 1.99
2200 559 0.53 624 0.71 687 0.88 747 1.05 804 1.21 859 1.37 912 1.54 962 1.70 1010 1.88 1056 2.05
2300 568 0.60 634 0.78 696 0.95 756 1.11 813 1.28 868 1.44 921 1.60 971 1.77 1019 1.94 1065 2.12
2400 578 0.66 643 0.84 705 1.01 765 1.18 823 1.34 878 1.51 930 1.67 981 1.84 1029 2.01 1074 2.19
2500 588 0.74 653 0.91 715 1.08 775 1.25 833 1.41 888 1.58 940 1.74 991 1.91 1039 2.08 1084 2.26
2600 598 0.81 663 0.99 725 1.16 785 1.32 843 1.49 898 1.65 950 1.81 1001 1.98 1049 2.15 1094 2.33
2700 609 0.88 674 1.06 736 1.23 796 1.40 853 1.56 908 1.72 961 1.89 1011 2.05 1059 2.23 -- --
2800 620 0.96 685 1.14 747 1.31 807 1.47 864 1.64 919 1.80 972 1.96 1022 2.13 1070 2.30 -- --
2900 631 1.04 696 1.22 759 1.39 819 1.55 876 1.72 931 1.88 984 2.04 1034 2.21 1082 2.38 -- --
3000 643 1.12 708 1.30 771 1.47 830 1.64 888 1.80 943 1.96 996 2.12 1046 2.29 1094 2.46 -- --
Standard Static Option with Motor rated at 2.4-hp
Medium Static Option with Motor rated at 2.9-hp
High Static Option with Motor rated at 3.7-hp
-- Exceeds recommended blower speed
1 Blower performance includes gas heat exchangers and 2 in. filters. See STATIC RESISTANCE table for additional applications. Note:
See RPM SELECTION table to determine desired motor sheave setting and to determine the maximum continuous BHP. kW = 0.929
x BHP
INSTALLATION MANUAL ZY SERIES 3-10ton 60 Hertz R-410A92
