Johnson Controls ZY Series User Manual

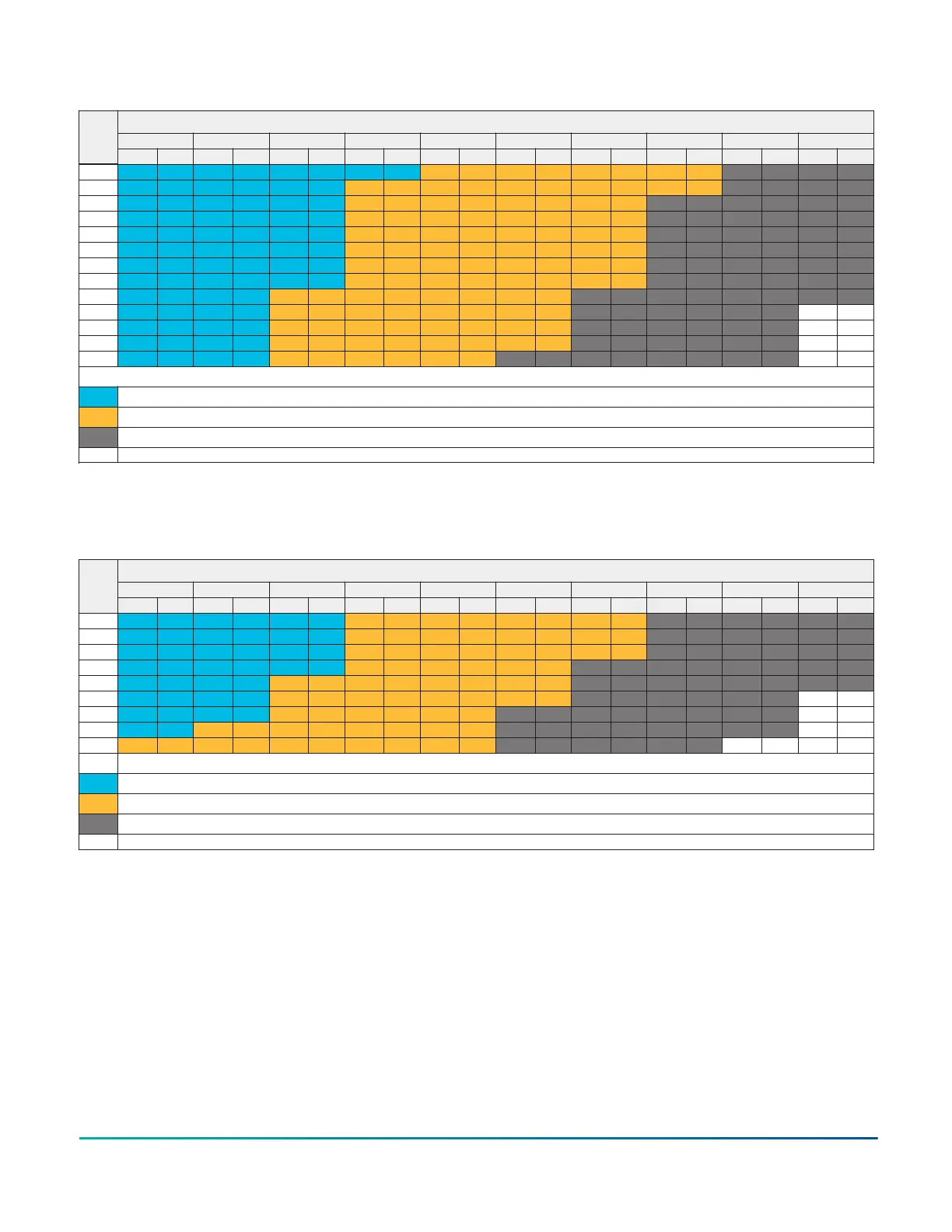

Table 46: ZYA7 (6.0 Ton) Bottom Duct
1
AVAILABLE EXTERNAL STATIC PRESSURE - IWG
1
0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0
CFM
RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
1800 525 0.31 590 0.48 653 0.65 713 0.82 770 0.98 825 1.15 878 1.31 928 1.48 976 1.65 1022 1.83
1900 534 0.36 599 0.53 661 0.71 721 0.87 779 1.03 834 1.20 886 1.36 936 1.53 984 1.70 1030 1.88
2000 542 0.41 607 0.59 670 0.76 730 0.93 787 1.09 842 1.25 895 1.42 945 1.58 993 1.75 1039 1.93
2100 551 0.47 616 0.65 678 0.82 738 0.99 796 1.15 850 1.31 903 1.47 953 1.64 1001 1.81 1047 1.99
2200 559 0.53 624 0.71 687 0.88 747 1.05 804 1.21 859 1.37 912 1.54 962 1.70 1010 1.88 1056 2.05
2300 568 0.60 634 0.78 696 0.95 756 1.11 813 1.28 868 1.44 921 1.60 971 1.77 1019 1.94 1065 2.12
2400 578 0.66 643 0.84 705 1.01 765 1.18 823 1.34 878 1.51 930 1.67 981 1.84 1029 2.01 1074 2.19
2500 588 0.74 653 0.91 715 1.08 775 1.25 833 1.41 888 1.58 940 1.74 991 1.91 1039 2.08 1084 2.26
2600 598 0.81 663 0.99 725 1.16 785 1.32 843 1.49 898 1.65 950 1.81 1001 1.98 1049 2.15 1094 2.33
2700 609 0.88 674 1.06 736 1.23 796 1.40 853 1.56 908 1.72 961 1.89 1011 2.05 1059 2.23 -- --
2800 620 0.96 685 1.14 747 1.31 807 1.47 864 1.64 919 1.80 972 1.96 1022 2.13 1070 2.30 -- --
2900 631 1.04 696 1.22 759 1.39 819 1.55 876 1.72 931 1.88 984 2.04 1034 2.21 1082 2.38 -- --
3000 643 1.12 708 1.30 771 1.47 830 1.64 888 1.80 943 1.96 996 2.12 1046 2.29 1094 2.46 -- --
Standard Static Option with Motor rated at 2.4-hp
Medium Static Option with Motor rated at 2.9-hp
High Static Option with Motor rated at 3.7-hp
-- Exceeds recommended blower speed
1 Blower performance includes gas heat exchangers and 2 in. filters. See STATIC RESISTANCE table for additional applications. Note:
See RPM SELECTION table to determine desired motor sheave setting and to determine the maximum continuous BHP. kW = 0.929
x BHP
Table 47: ZY08 (7.5 Ton) Bottom Duct
1
AVAILABLE EXTERNAL STATIC PRESSURE - IWG
1
0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0
CFM
RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
2250 556 0.45 621 0.65 683 0.83 742 1.00 798 1.18 852 1.34 904 1.51 954 1.69 1003 1.87 1050 2.06
2400 567 0.53 632 0.73 694 0.91 753 1.09 809 1.26 863 1.43 914 1.60 964 1.77 1013 1.95 1060 2.14
2600 580 0.65 646 0.85 707 1.03 766 1.21 823 1.38 876 1.55 928 1.72 978 1.89 1027 2.07 1074 2.27
2800 595 0.79 660 0.99 722 1.17 780 1.35 837 1.52 890 1.69 942 1.86 992 2.03 1041 2.21 1088 2.40
3000 609 0.94 674 1.14 736 1.32 795 1.50 851 1.67 905 1.83 957 2.00 1007 2.18 1056 2.36 1100 2.55
3200 625 1.10 690 1.30 752 1.48 810 1.66 867 1.83 921 2.00 972 2.17 1022 2.34 1071 2.52 -- --
3400 641 1.28 706 1.47 768 1.66 827 1.83 883 2.00 937 2.17 989 2.34 1039 2.52 1087 2.70 -- --
3600 658 1.47 723 1.66 785 1.85 844 2.02 900 2.19 954 2.36 1006 2.53 1056 2.70 1100 2.89 -- --
3750 672 1.61 737 1.81 799 1.99 858 2.17 914 2.34 968 2.51 1019 2.68 1069 2.85 -- -- -- --
Standard Static Option with Motor rated at 2.4-hp
Medium Static Option with Motor rated at 2.4-hp
High Static Option with Motor rated at 3.7-hp
-- Exceeds recommended blower speed
1 Blower performance includes gas heat exchangers and 2 in. filters. See STATIC RESISTANCE table for additional applications. Note:
See RPM SELECTION table to determine desired motor sheave setting and to determine the maximum continuous BHP. kW = 0.929
x BHP
INSTALLATION MANUAL ZY SERIES 3-10ton 60 Hertz R-410A 93
Johnson Controls Ducted Systems
