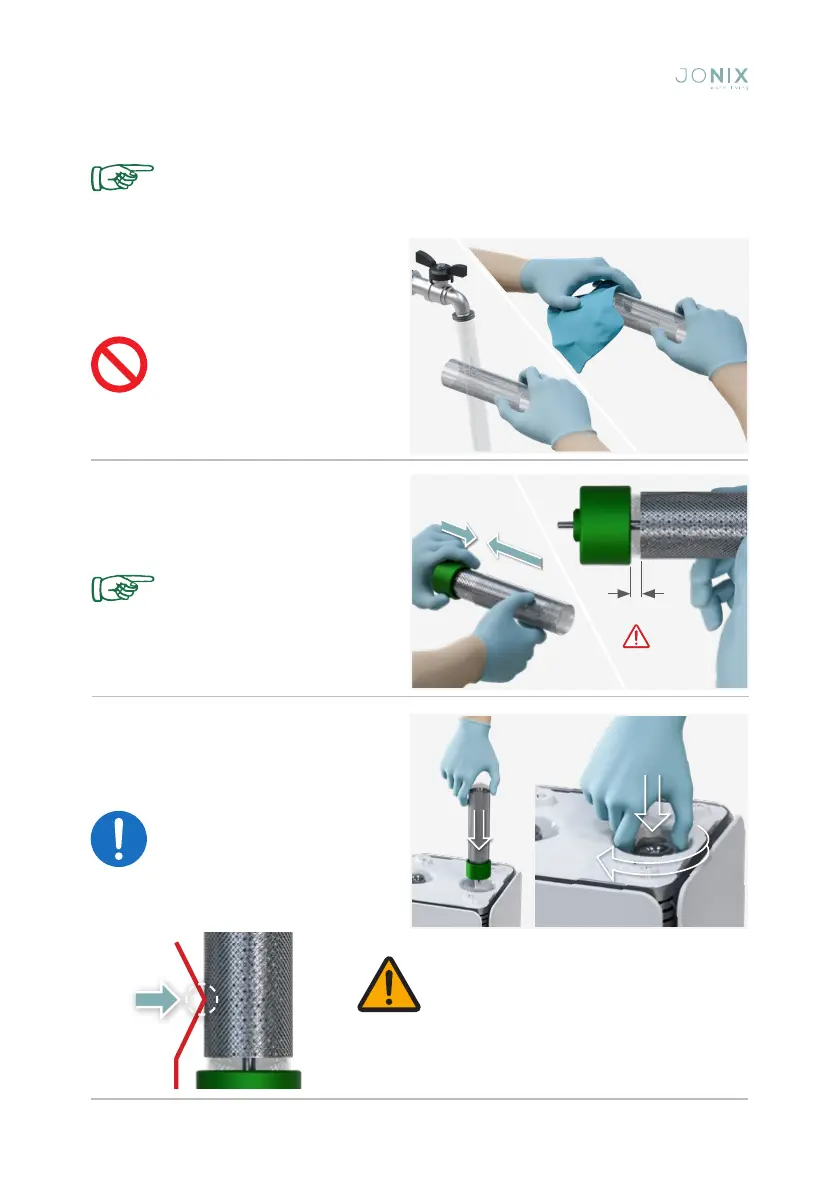

Fig. 17: Screw the ionizing tubes back into
place by acting again on the glass surface
that can be reached by hand through the
special slots.
The presence of a whitish layer on the perforated metal sheet inside the glass indicates
the need to replace the pipe. The tube must usually be replaced within 18 months of
use.
Fig. 15: Wash the mesh under running
hot water and dry it thoroughly with a
non-fraying cloth.
Do not put back the mesh
on the ionising tube if it is
even partially wet.
Fig. 16: Put the outer metal mesh
back on the glass tube so that it fully
overlaps the internal plate.
In any case ensure a
minimum distance of at
least 3 mm from the base
of the tube.
Once the ionising tubes have been screwed
back into place, the earthing spring is in
contact with the outer mesh. Otherwise
contact the manufacturer.
ATTENTION: do not
overtighten the screw after
reaching its end stop.
