J+J J4C S20 Handbook

_
04
HANDBOOK_J4C SERIES 06
INDEX

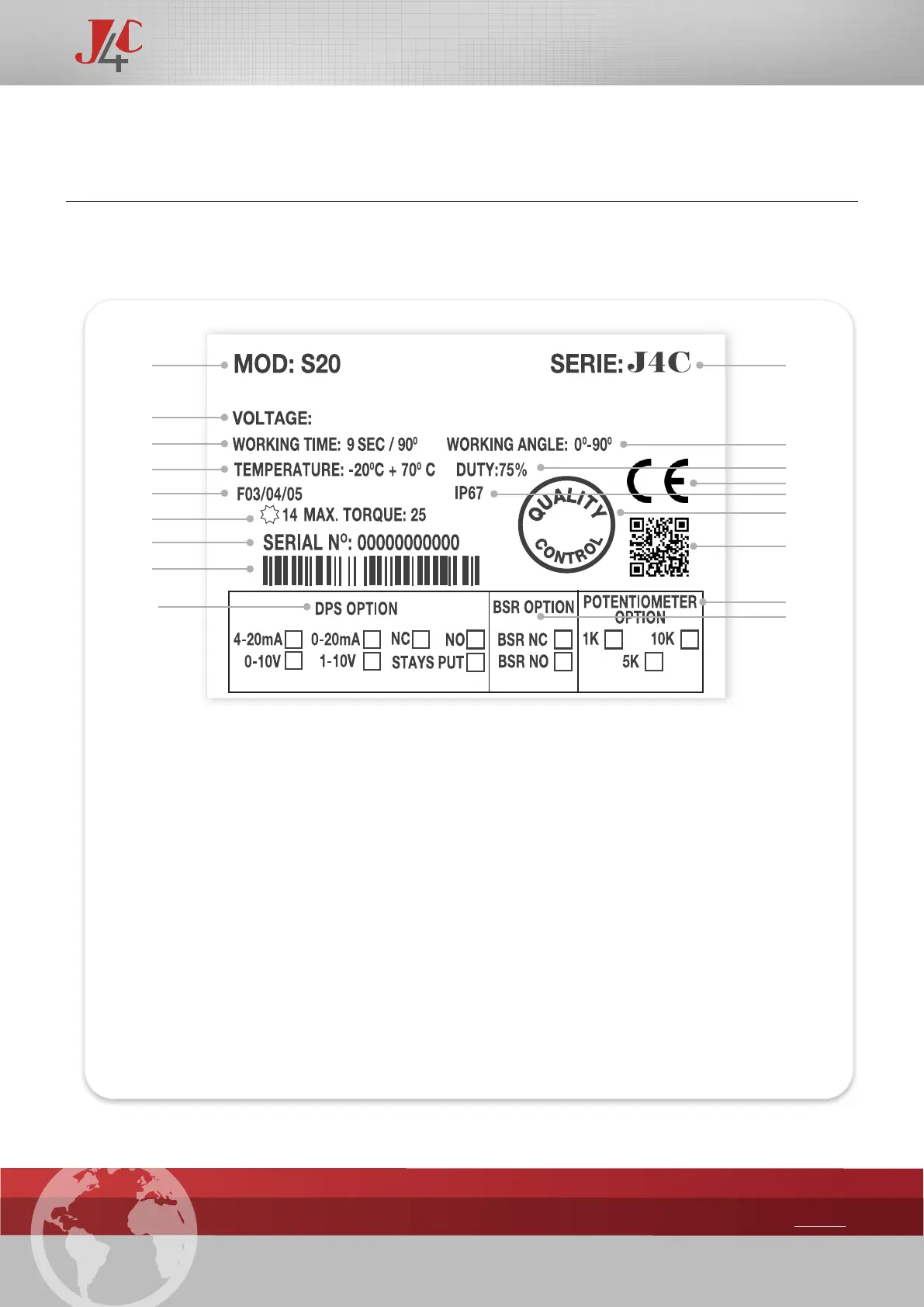

ID ACTUATOR LABEL
1 - Actuator Model.
2 - Voltage to be connected.
3 - Time the actuator needs to run to the
indicated degrees.
4 - Actuator ready to bear between –20ºC
& + 70ºC.
5 - Plate to fix the valve to the actuator,
following ISO 5211.
6 - Female output drive size, following DIN3337.
7 - Maximum torque break.
8 - Actuator serial number.
9 - Bar code of the serial number.
10 - Actuator Series.
11 - Working angle.
12 - Duty: 75%. Example: S20 Model -
Maneuver me = 10sec.
Time between maneuvers = 3.3 sec.
13 - Actuator with the IP67 protecon.
14 - Actuator with the CE cerficate.
15 - Quality Control Conformity .
16 - QR code for manufacturing.
17 - DPS opons.
18 - BSR opons.
19 - POTENTIOMETER opons.
1 10
11
12
14
13
15
16
19
18
2
3
4
5
6
8
9
17
24-240 AC (50/60HZ) / 24-135 DC (PATENT PENDING)
OUT different of IN:
Nm
