JRC JFE-582 - 1. Introduction; 1.5 System Configuration

1. Introduction 5

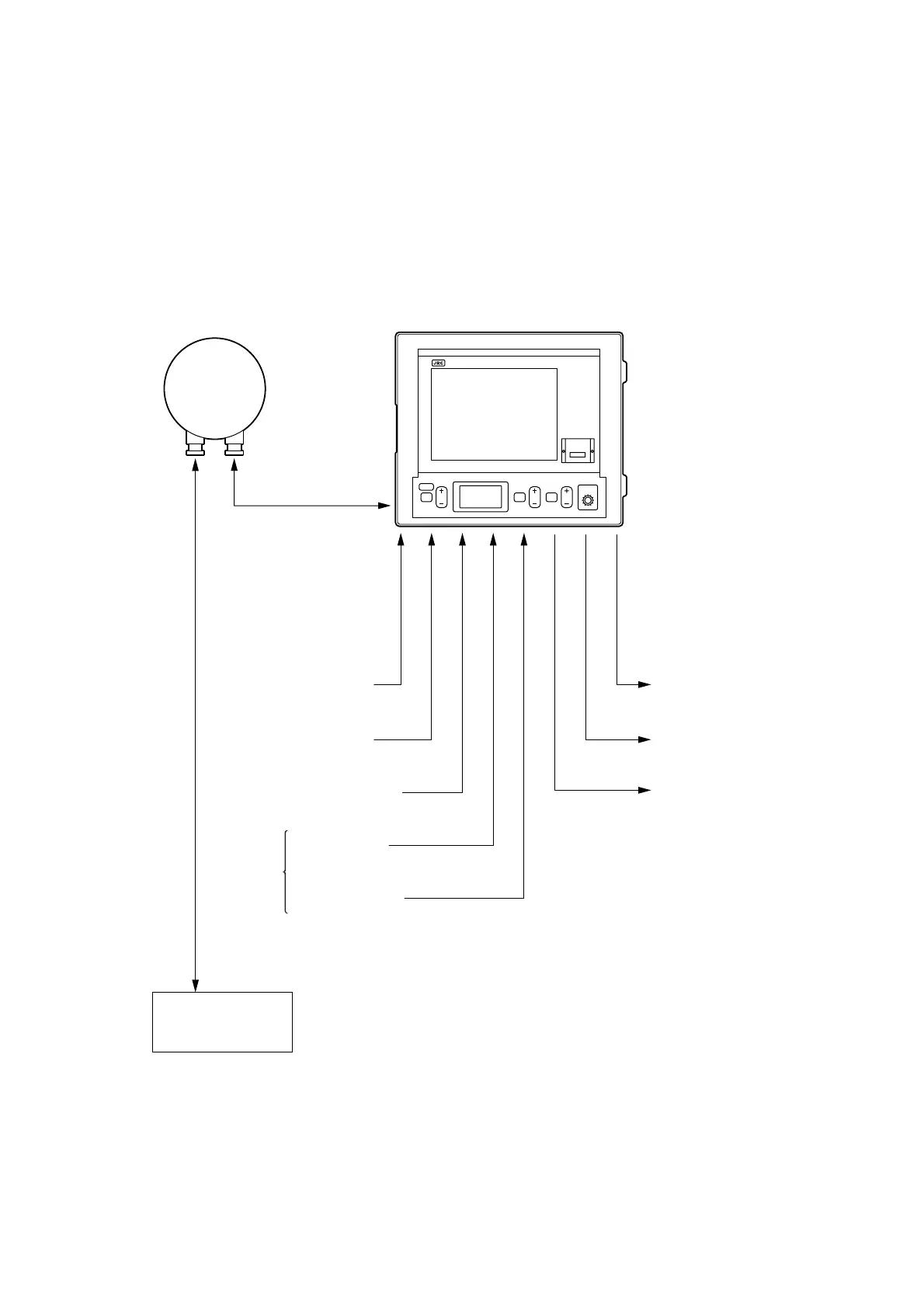

1.5 System Configuration
Cabtire cable
(20m, supplied)
660V-DPYCS-2.0
(Shipbuilding yard)
Depth data output
(NMEA0183/JRC format)
Depth alarm output
(relay contact)
Power fail alarm output
(relay contact)
Transducer
Transducer mounting: NKF-341 or NKF-392C
AW-154F
Matching box
JFE-582
Recorder
250V-DPYC-1.25
(Shipbuilding yard)
250V-DPYC-1.25
(Shipbuilding yard)
250V-TTYCS-1
(Shipbuilding yard)
250V-TTYCS-1
(Shipbuilding yard)
250V-TTYCS-1
(Shipbuilding yard)
250V-DPYC-1.25
(Shipbuilding yard)
250V-DPYC-1.25
(Shipbuilding yard)
250V-TTYCS-1
(Shipbuilding yard)
Power fail alarm
buzzer control
AC100/110/115/
200/220/230V
(On-board power supply)
DC24V
(On-board power supply)
External navigation equipment
(NMEA0183/0180/JRC format)
External
console
Depth alarm
buzzer control
