6 2. Names and Functions of the Components
2.
Names and Functions of the Components
This section describes the names and functions of the control panel and its controls.

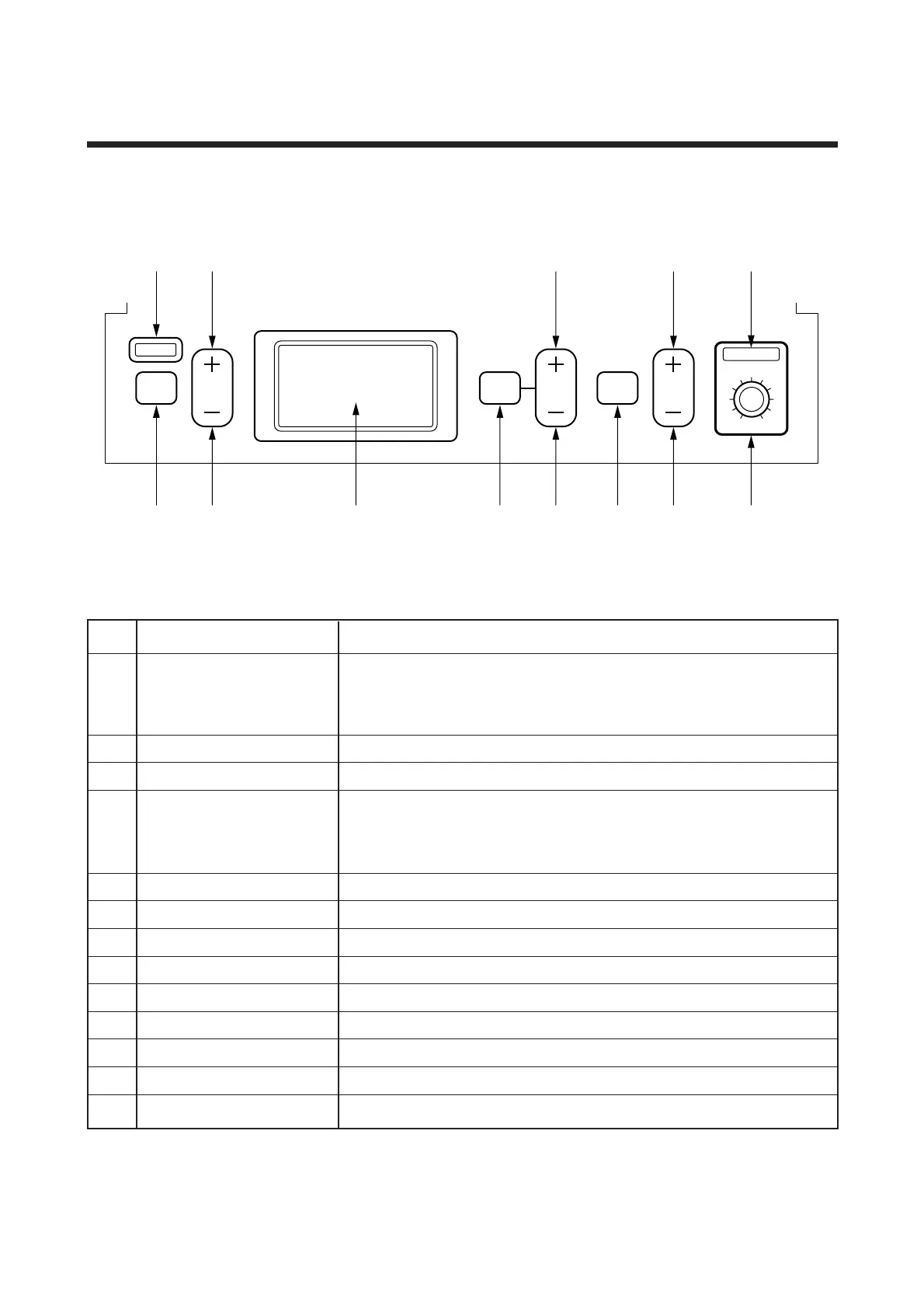

Figure 2-1 Control Panel
No. Name Function
① Power/Brightness Switches the equipment power on and off, adjusts the
brightness of the panel and plotter illumination, and stops the
buzzer from sounding in the event of a power fail alarm.
② Depth range (+) Switches the depth range to deep.
③ Depth range (-) Switches the depth range to shallow.
④ Recording line Prints a vertical line on the recording paper while the key is pressed
and held. When the key is released, the water depth and longitude
and latitude, date, and time (* see Note 1) are printed.
⑤ Menu setting (+) Increases the value of the item selected from the menu.
⑥ Menu setting (-) Decreases the value of the item selected from the menu.
⑦ Select menu item Selects an item from the menu.
⑧ Depth alarm (+) Switches the depth alarm to deep.
⑨ Depth alarm (-) Switches the depth alarm to shallow.
⑩ Cancel depth alarm Cancels the buzzer that sounds when a depth alarm occurs.
⑪
Power failure warning lamp
The warning lamp blinks in the event of a power failure.
⑫ Depth warning lamp The depth-warning lamp blinks in the event of a depth alarm.
⑬ LCD display Displays water depth and other settings.
Note 1: Longitude and latitude, date, and time are recorded from data input from external navigation
equipment.
ALARM
ACK
DEPTH
DEPTH
ALARM
SET
RANGE
MARK
OFF
PWR FAIL
PWR/PANEL
SELECT
!2 i t w !1
!0
o !3 u y r e q
