Chapter 3 INSTALLATION OF THE DISPLAY UNIT
3.11 CONNECTING CONTACT SIGNALS TO EXTERNAL BUZZERS/EXTERNAL DEVICES
3-33
3
NSTALLATION MANUAL
Using jumper TB2, set whether the buzzer contact is opened or closed at the normal
condition according to the utilization condition.
Set the output with TB2 on the I/F circuit CMH-2235.
Normal open with 1-2 pins linked. ( Factory setting )
Normal close with 2-3 pins linked.

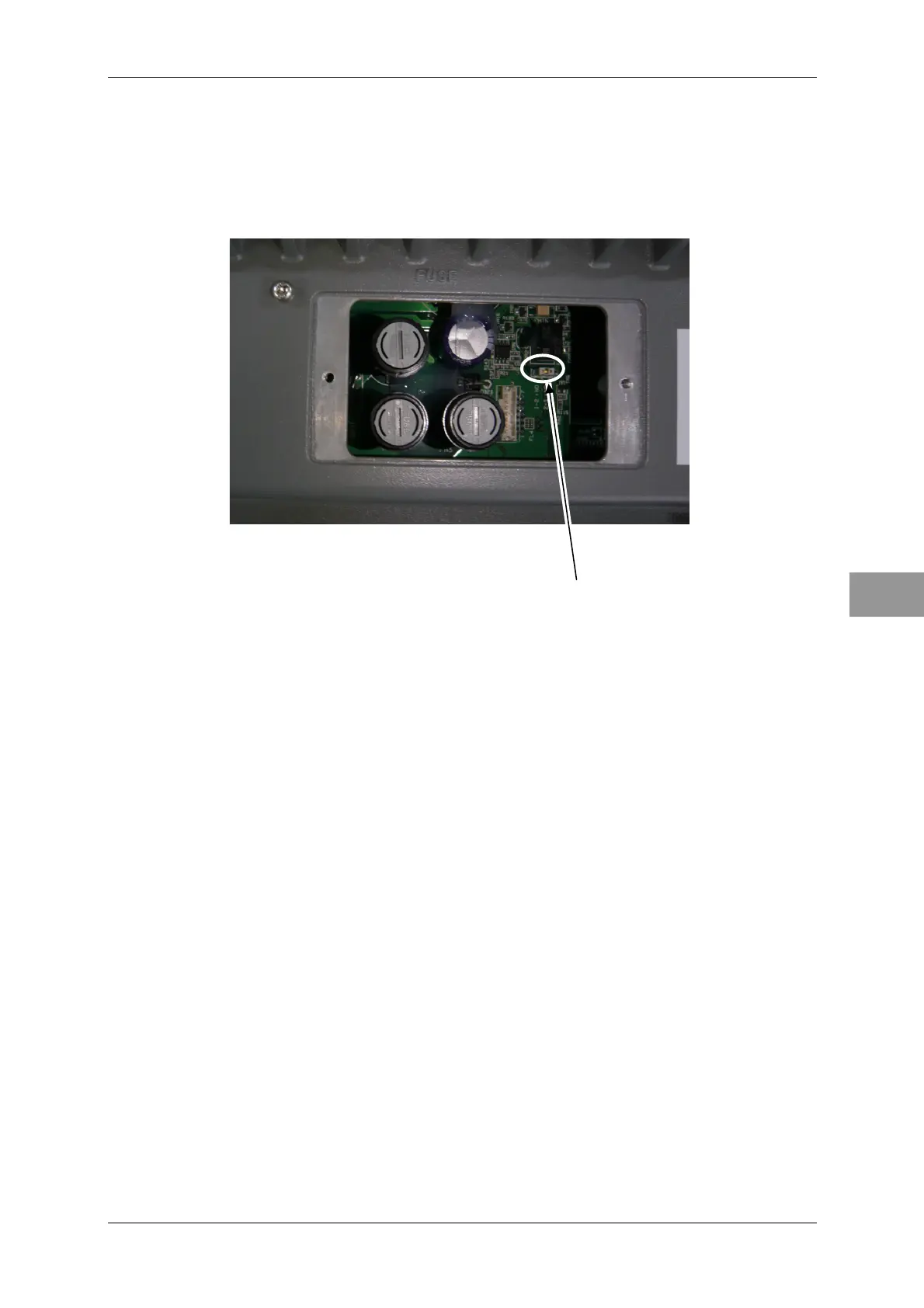

CMH-2235 TB2(1-2) short-circuit
