3.10 POWER SUPPLY (OPTION)
If the ship's mains are alternating current, use the power supply.
NBA-5111

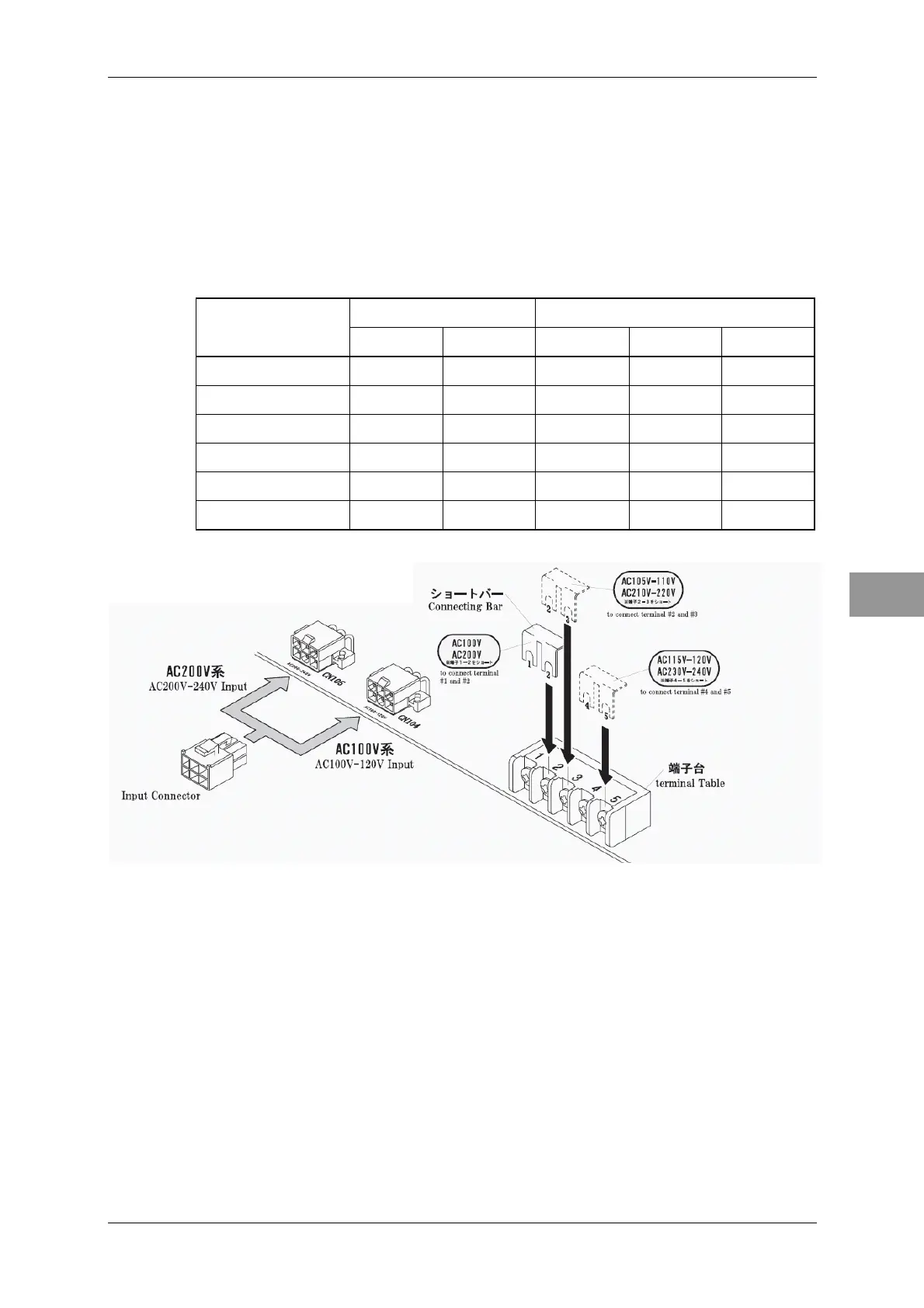

The power supply can be used for both 100/110/115 VAC and 200/220/230 VAC of the
ship's mains, however, the input connector and the connecting bar must be changed.
Input connector Connecting bar
INPUT VOLTAGE
CN105 CN104 1-2 2-3 4-5
AC100V ○ ○
AC105V～110V ○ ○
AC115V～120V ○ ○
AC200V ○ ○
AC210V～220V ○ ○
AC230V～240V ○ ○
