Chapter 4 ADJUST MENU SETTINGS
4.3 RADAR ECHO
4-13
4
NSTALLATION MANUAL

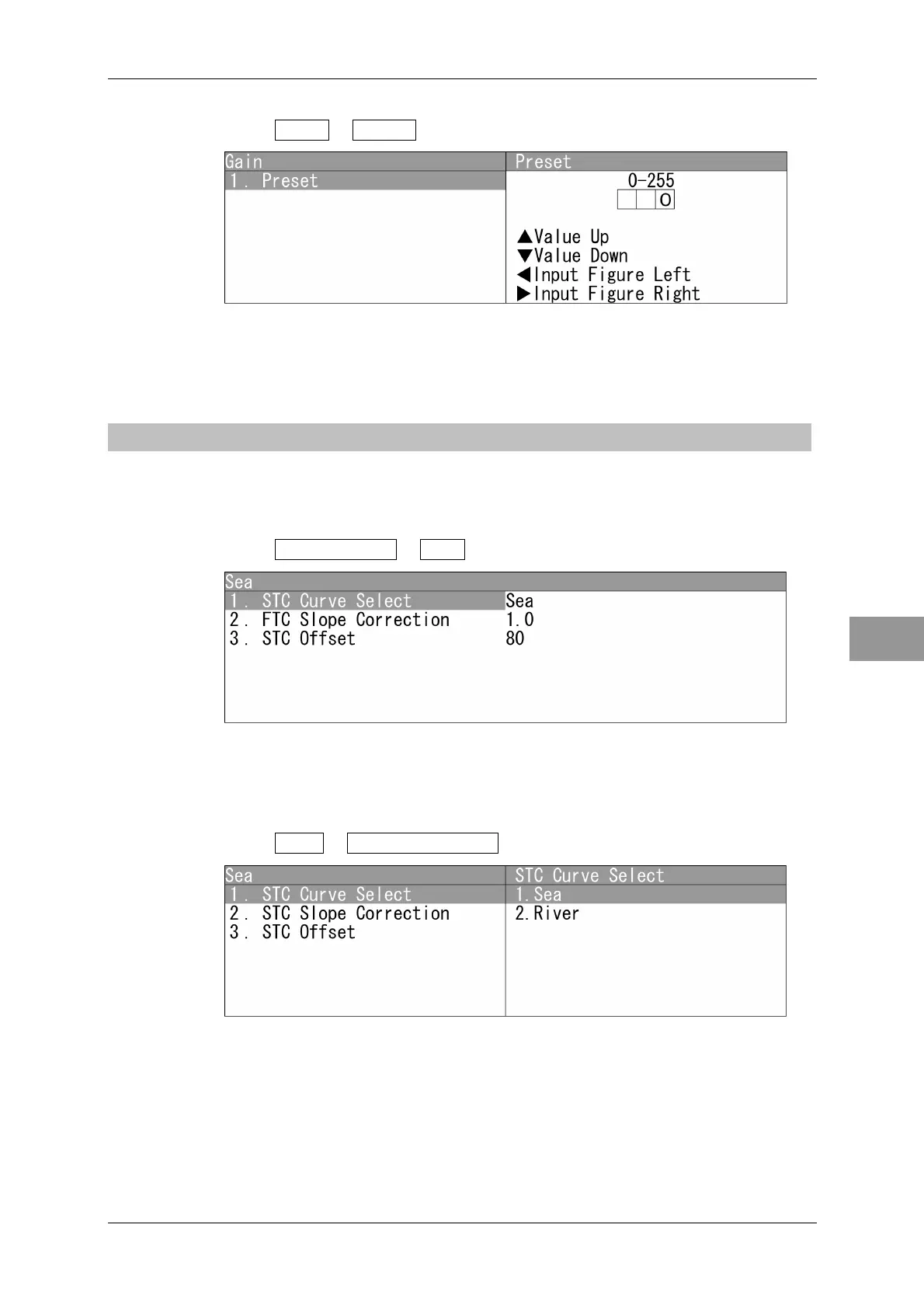

Adjusting the Presetting of Sensitivity
1 Open Gain - Preset .
"Preset" menu appears.
Press the cursor key or turn the [MULTI] control to adjust the presetting.
The presetting can be adjusted between 0 and 255.
4.3.5 SEA CLUTTER SUPPRESSION
Sets the STC Curve.
"Sea" operations
1 Open RADAR Echo - Sea .
"Sea" menu appears.
STC Curve Select
Switches the STC Curve.
1 Open Sea - STC Curve Select .
"STC Curve Select" menu appears.
Sea and rivers can be set.
To Next Page
