CONNECTION
4
4.1
Connection to a
JST-135
Transceiver
To connect you JRL-2000F to a JST-135 transceiver, the optional CFQ-3890 Control Cable
can be used. You may also construct your own custom control cable according to the wiring
diagram shown in section 4.1.2 of this manual.
4.1
.I

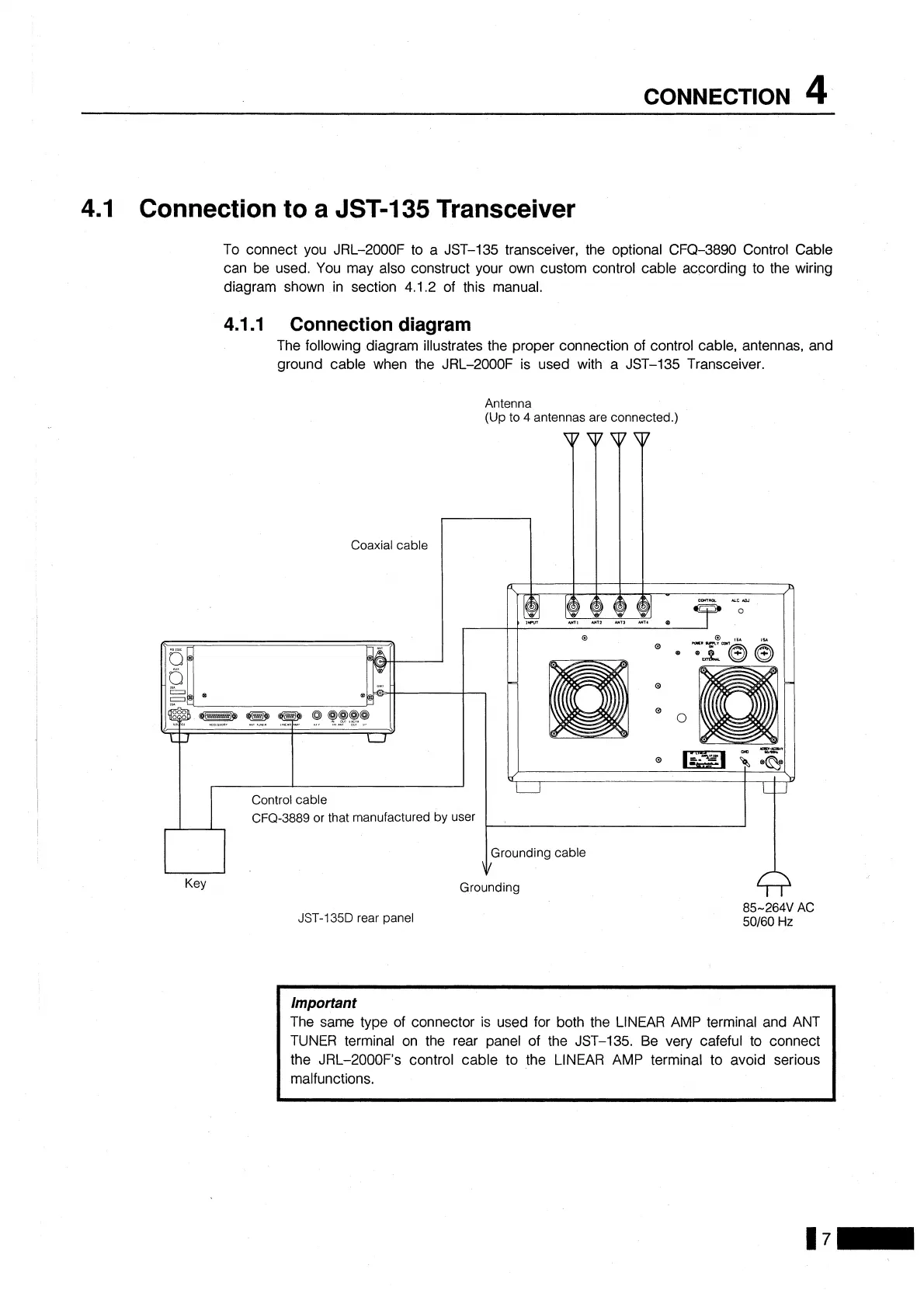

Connection diagram
The following diagram illustrates the proper connection of control cable, antennas, and
ground cable when the JRL-2000F is used with
a
JST-135 Transceiver.
Antenna
(Up
to
4
antennas are connected.)
JST-135D
rear panel
Important
The same type of connector is used for both the LINEAR AMP terminal and ANT
TUNER terminal on the rear panel of the JST-135. Be very cafeful to connect
the
JRL-2000F's control cable to the LINEAR AMP terminal to avoid serious
malfunctions.
To Next Page
