CONNECTION
4
4.2
Connection to
a
Non-JRC Exciter
You may prepare your own special control cable by using the 15-pin connector included with
your JRL-2000F (cable and connectors for exciter end not supplied). Alternatively, you may
purchase the optional CFQ-3889 Control Cable, which is 3m long and is equipped with the
proper 15-pin connector for the JRL-2000F; you must supply all other connectors required
for connection to your exciter.
4.2.1
Connection
diagram

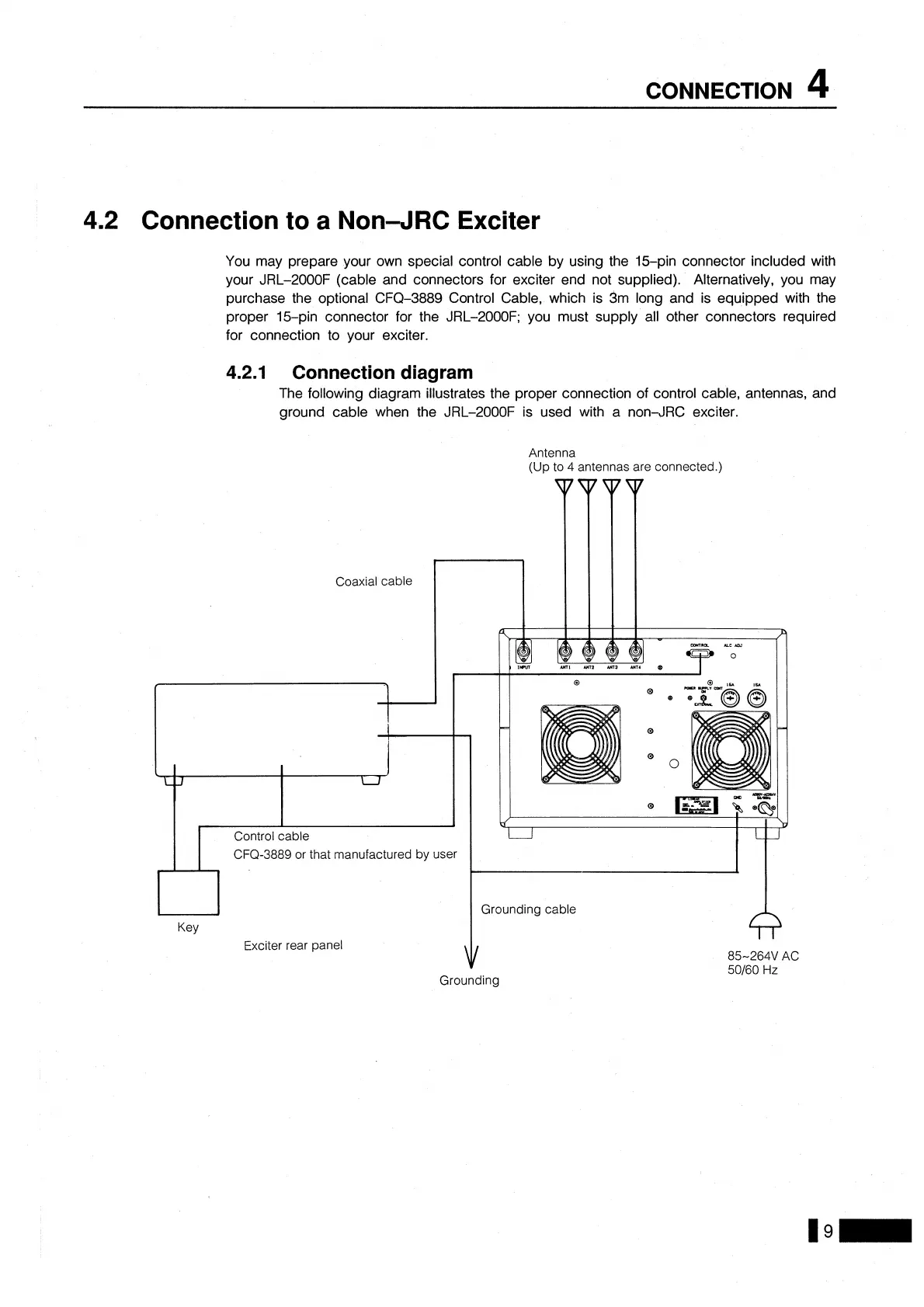

The following diagram illustrates the proper connection of control cable, antennas, and
ground cable when the JRL-2000F is used with
a
non-JRC exciter.
Antenna
(Up
to
4
antennas are connected.)
