JRC JRL-2000F - Control Cable Wiring Diagram

4 CONNECTION
4.2.2 Control cable wiring Ddiagram

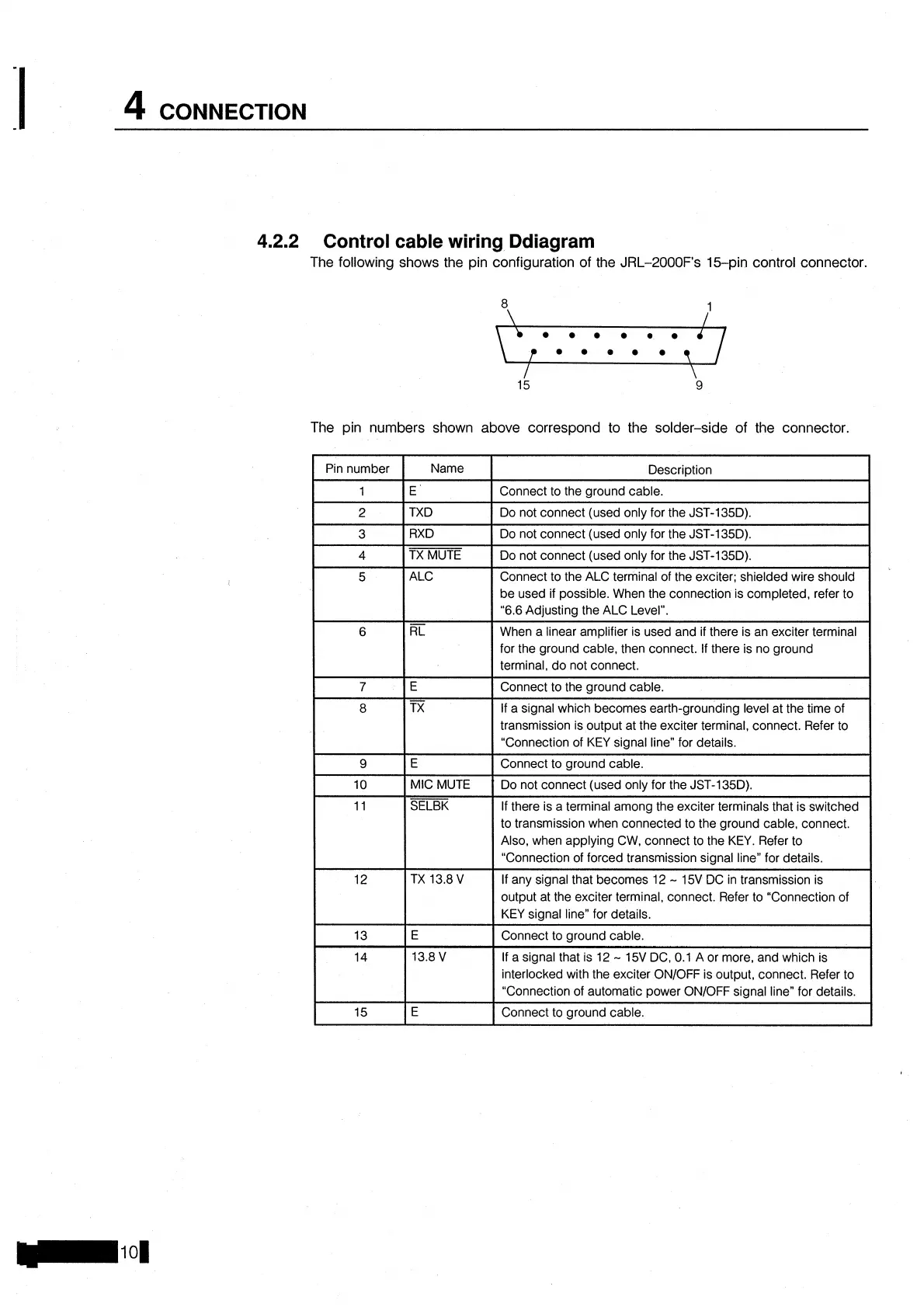

The following shows the pin configuration of the JRL-2000F's 15-pin control connector.
4,
15 9
The pin numbers shown above correspond to the solder-side of the connector.
