Important
The preset data store the matching data for a single selected antenna output
(one of four). Therefore, if a different antenna is used or if the antenna
feedline
is changed to a different antenna input on the amplifier, it is necessary to implement
the automatic tuning operation once again after erasing the previous antenna preset
data (see section
7.1).
-

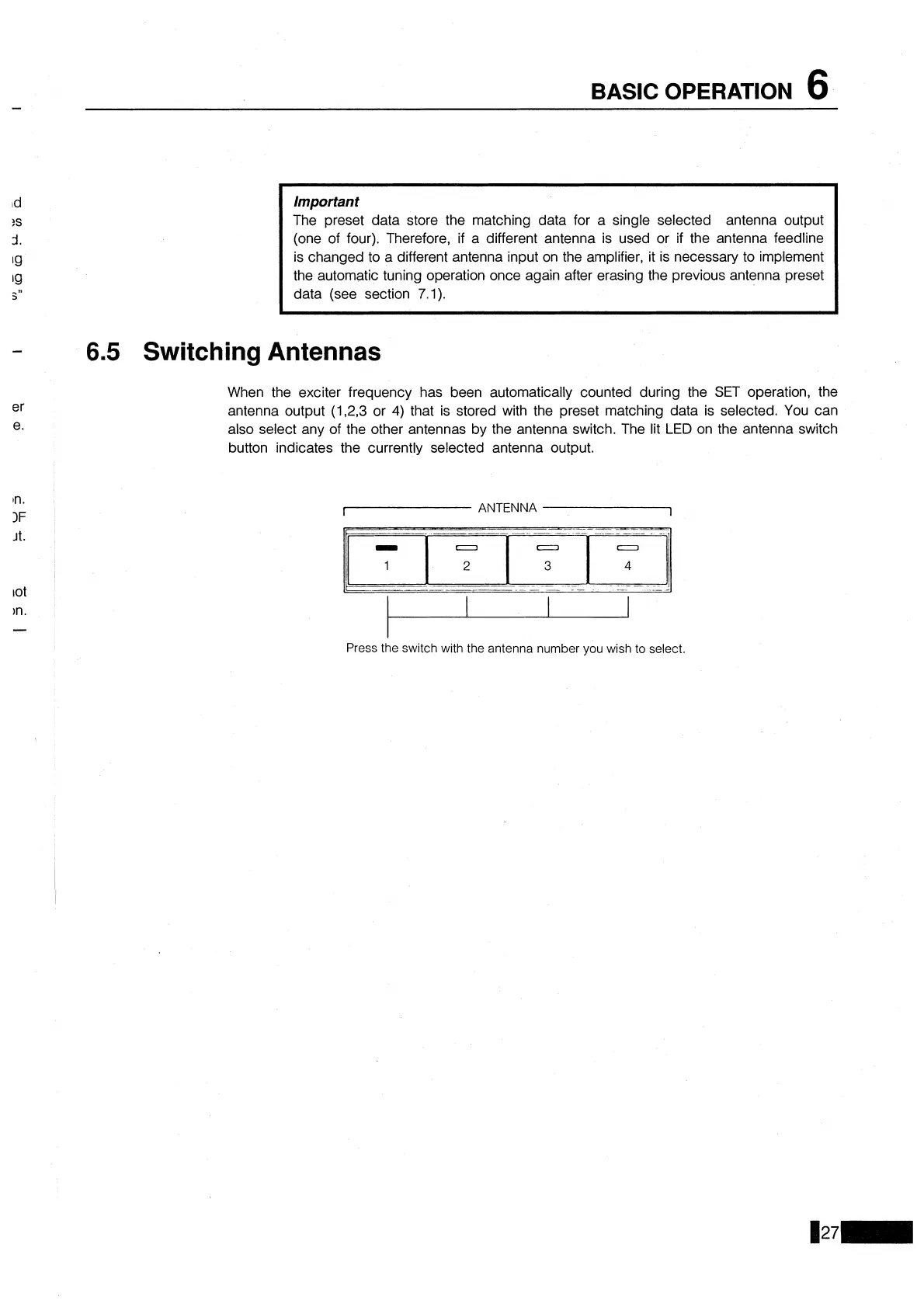

6.5
Switching Antennas
When the exciter frequency has been automatically counted during the SET operation, the
antenna output
(1,2,3
or
4)
that is stored with the preset matching data is selected. You can
also select any of the other antennas by the antenna switch. The lit LED on the antenna switch
button indicates the currently selected antenna output.
In.
IF
1-
ANTENNA
I
Press the switch with the antenna number you wish to select
