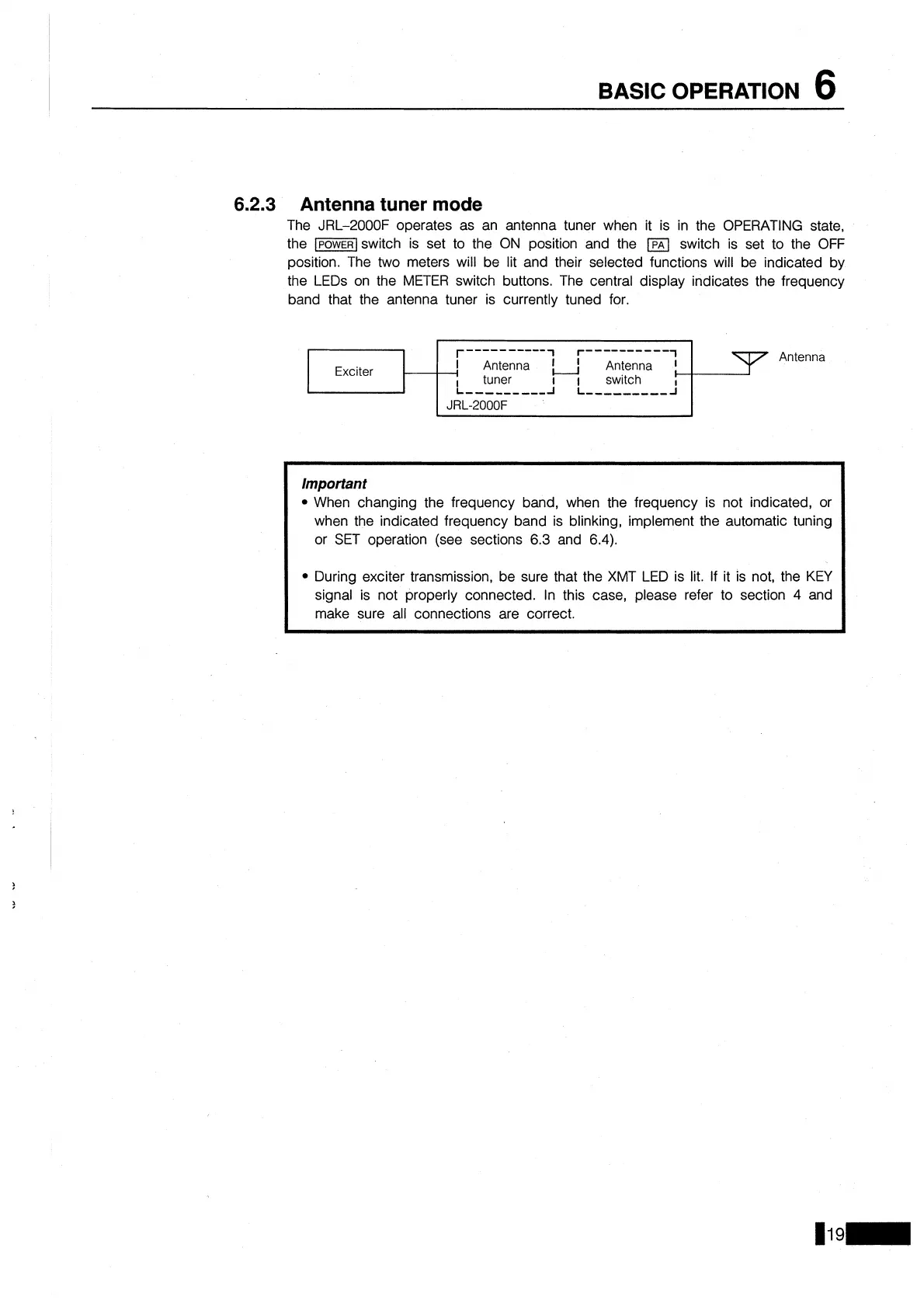

6.2.3
Antenna tuner mode
The JRL-2000F operates as an antenna tuner when it is in the OPERATING state,
the
-1
switch is set to the
ON
position and the switch is set to the OFF
position. The two meters will be lit and their selected functions will be indicated by
the
LEDs on the METER switch buttons. The central display indicates the frequency
band that the antenna tuner is currently tuned for.
1
r----------
1
Antenna
Antenna
I
Antenna
I
tuner
switch
Important
When changing the frequency band, when the frequency is not indicated, or
when the indicated frequency band is blinking, implement the automatic tuning
or SET operation (see sections
6.3
and
6.4).
During exciter transmission, be sure that the XMT
LED
is lit.
If
it is not, the
KEY
signal is not properly connected. In this case, please refer to section 4 and
make sure all connections are correct.
