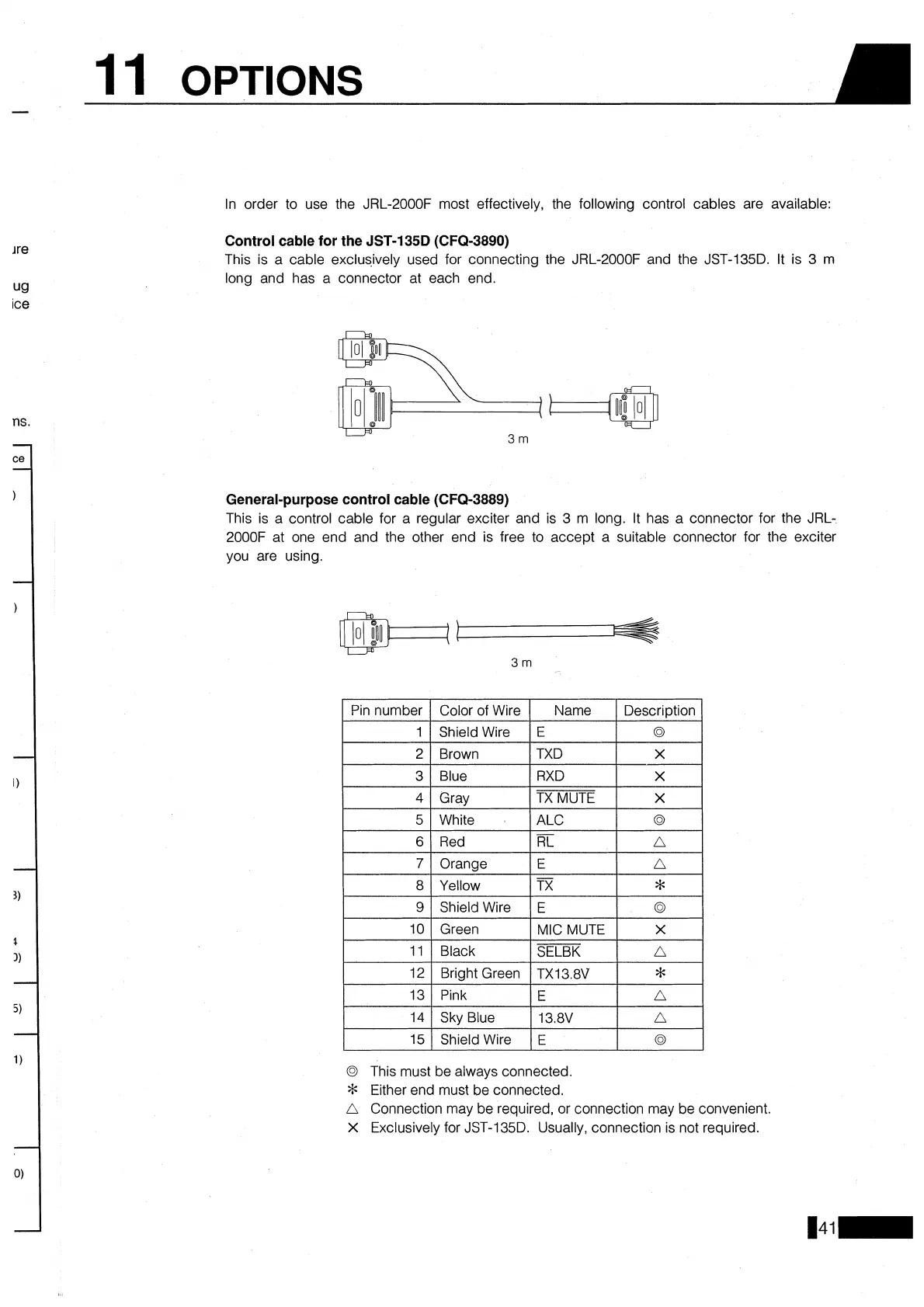

In order to use the JRL-2000F most effectively, the following control cables are available:
Control cable
for the JST-135D (CFQ-3890)
This is a cable exclusively used for connecting the
JRL-2000F and the JST-135D. It is 3 m
long and has a connector at each end.
General-purpose control cable (CFQ-3889)
This is a control cable for a regular exciter and is
3 m long. It has a connector for the JRL-
2000F at one end and the other end is free to accept a suitable connector for the exciter
you are using.
8 This must be always connected.
* Either end must be connected.
A Connection may be required, or connection may be convenient.
X Exclusively for JST-135D. Usually, connection is not required.
