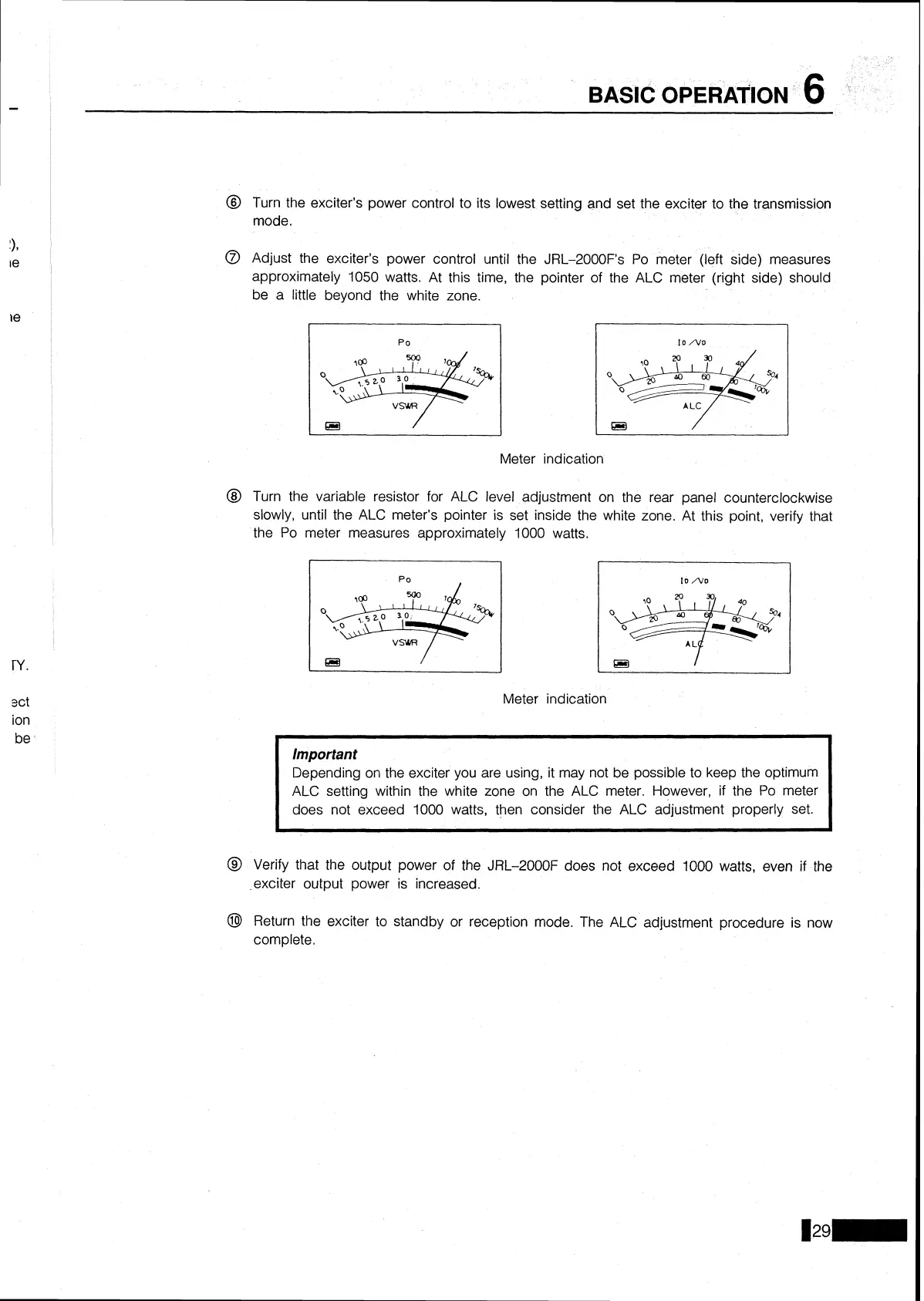

Turn the exciter's power control to its lowest setting and set the exciter to the transmission
mode.
@
Adjust the exciter's power control until the JRL-2000F's Po meter (left side) measures
approximately 1050 watts. At this time, the pointer of the ALC meter (right side) should
be a little beyond the white zone.
Meter indication
@
Turn the variable resistor for ALC level adjustment on the rear panel counterclockwise
slowly, until the ALC meter's pointer is set inside the white zone. At this point, verify that
the Po meter measures approximately
1000 watts.
Meter indication
Depending on the exciter you are using, it may not be possible to keep the optimum
@
Verify that the output power of the JRL-2000F does not exceed 1000 watts, even if the
exciter output power is increased.
@
Return the exciter to standby or reception mode. The ALC adjustment procedure is now
complete.
