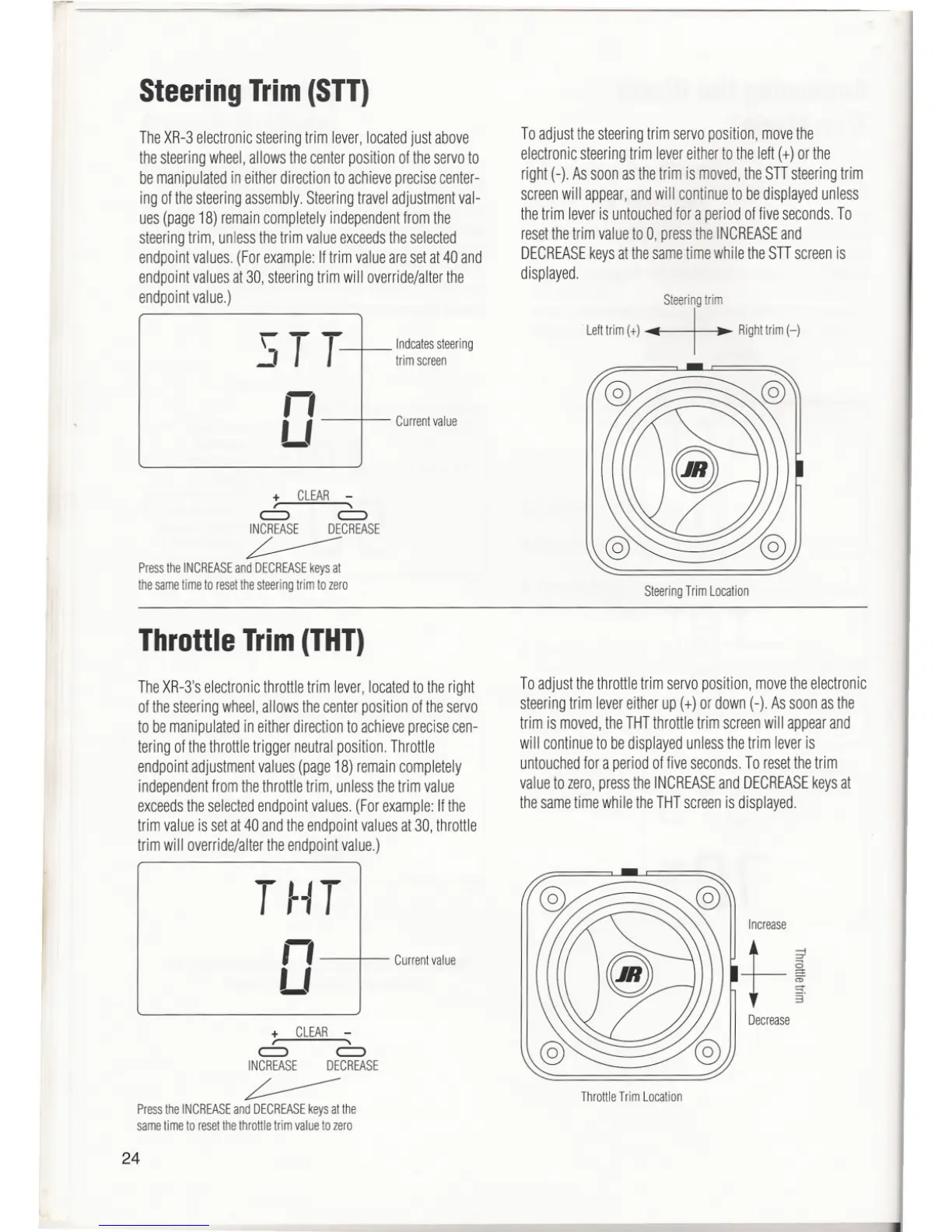

SteeringTrim(STT)
TheXR-3electronicsteeringtrim lever,locatedjustabove
thesteeringwheel,allowsthecenterpositionoftheservoto
bemanipulatedineitherdirectiontoachieveprecisecenter-
ingofthesteeringassembly.Steeringtraveladjustmentval-
ues(page18)remaincompletelyindependentfromthe
steeringtrim,unlessthetrimvalueexceedstheselected
endpointvalues.(Forexample:Iftrimvaluearesetat40and
endpointvaluesat30,steeringtrimwill override/alterthe
endpointvalue.)
STr
n
Lf
Indcates steering
trimscreen
Currentvalue
+ CLEAR -
6 6
INCREASE DECREASE
~
Press the INCREASEand DECREASEkeys at
the same time to reset the steering trim to zero
ThrottleTrim(THT)
TheXR-3'selectronicthrottletrimlever,locatedtotheright
ofthesteeringwheel,allowsthecenterpositionoftheservo
to bemanipulatedineitherdirectiontoachieveprecisecen-
teringofthethrottletriggerneutralposition.Throttle
endpointadjustmentvalues(page18)remaincompletely
independentfromthethrottletrim,unlessthetrimvalue
exceedstheselectedendpointvalues.(Forexample:Ifthe
trimvalueissetat40andtheendpointvaluesat30,throttle
trimwill override/altertheendpointvalue.)
Tf-'T
n
Lf
Currentvalue
+ CLEAR
6 6
INCREASE DECREASE
~
Press the INCREASEand DECREASEkeys at the
same time to reset the throttle trim value to zero
24
Toadjustthesteeringtrimservoposition,movethe
electronicsteeringtrimlevereithertotheleft(+)orthe
right(-).Assoonasthetrimis moved,theSTTsteeringtrim
screenwillappear,andwill continueto bedisplayedunless
thetrimleveris untouchedforaperiodoffiveseconds.To
resetthetrimvalueto 0,presstheINCREASEand
DECREASEkeysatthesametimewhiletheSTTscreenis
displayed.
Steeringtrim
Lefttrim(+)
~ Righttrim(-)
SteeringTrimLocation
Toadjustthethrottletrimservoposition,movetheelectronic
steeringtrimlevereitherup(+)ordown(-). Assoonasthe
trim ismoved,theTHTthrottletrimscreenwill appearand
will continueto bedisplayedunlessthetrimleveris
untouchedforaperiodoffiveseconds.Toresetthetrim
valuetozero,presstheINCREASEandDECREASEkeysat
thesametimewhiletheTHTscreenisdisplayed.
Increase
t-!
Decrease
ThrottleTrimLocation
