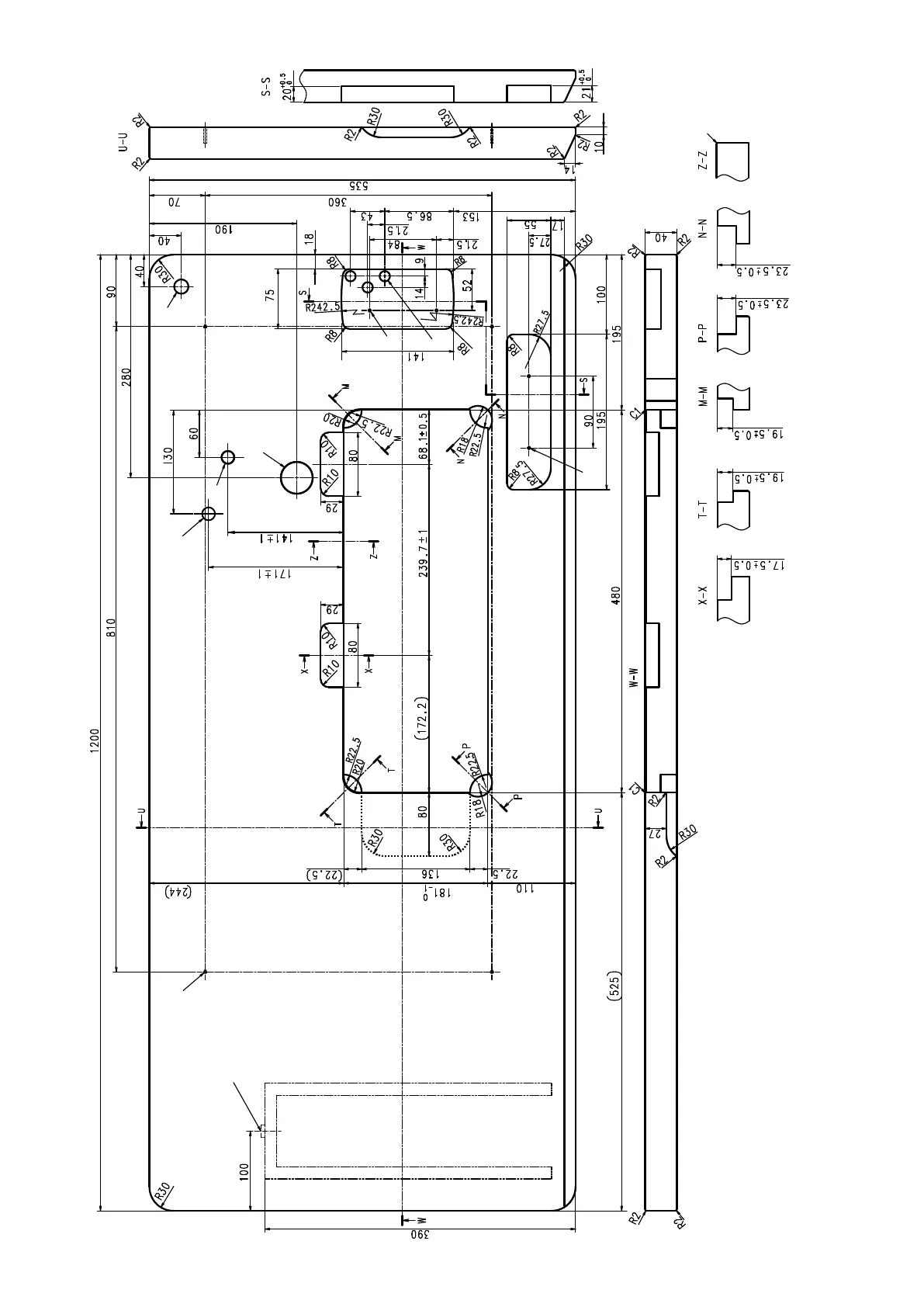

– 2 –
DRA
WING OF T
ABLE
A
B
C
D
E
F
H
G
J
A
4xø3.4 on the bottom surface, depth 20 (Drill a hole at the time of set-up.)
B
Installing position of drawer stopper (on the reverse side)
C
ø18 drilled hole
D
3xø13 drilled hole
E
2xø3.5, depth 10
F
2xø3.5, depth 10
G
ø40±0.5
drilled hole
H
ø16 depth 30
I
ø16 depth 30 (for optional parts)
J
C1.5 to C2.5 (hinge side only)
I
3
5
Table of Contents
Table of Contents
2
Specifications
3
Set-Up
5
Installation
5
Installing the Pedal Sensor
6
Installing the Power Switch (for CE)
6
Connecting the Connector
7
How to Install the Power Plug
8
Attaching the Connecting Rod
8
Winding the Bobbin Thread
9
Adjusting the Height of the Knee Lifter
10
Installing the Thread Stand
10
Lubrication
11
Adjusting the Amount of Oil (Oil Splashes)
12
Attaching the Needle
14
Setting the Bobbin into the Bobbin Case
15
Adjusting the Stitch Length
15
Presser Foot Pressure
15
Hand Lifter
15
Adjusting the Height of the Presser Bar
16
Threading the Machine Head
16
Thread Tension
17
Thread Take-Up Spring
17
Adjusting the Thread Take-Up Stroke
17
Needle-To-Hook Relationship
18
Height of the Feed Dog
18
Tilt of the Feed Dog
19
Adjusting the Feed Timing
19
Counter Knife
20
Pedal Pressure and Pedal Stroke
20
Adjustment of the Pedal
21
Marker Dots on the Handwheel
21
For the Operator
22
Operating Procedure of the Sewing Machine
22
Setting Procedure of the Machine Head
23
Operation Panel Built in the Machine Head
24
Operating Procedure of the Sewing Pattern
25
One-Touch Setting
27
Setting of Functions
28
Production Support Function
29
Setting of Thread Clamp (NB Type Only)
31
Function Setting List
33
Detailed Explanation of Selection of Functions
37
Automatic Compensation of Neutral Point of the Pedal Sensor
47
Selection of the Pedal Specifications
48
Setting of the Auto Lifter Function
48
Selecting Procedure of the Key-Lock Function
49
Initialization of the Setting Data
49
LED Hand Light
50
Height Adjustable One-Touch Type Reverse Stitching Switch
50
Maintenance
51
Adjusting the Machine Head
51
Error Codes
52
