JUKI DDL-900B User Manual

– 5 –

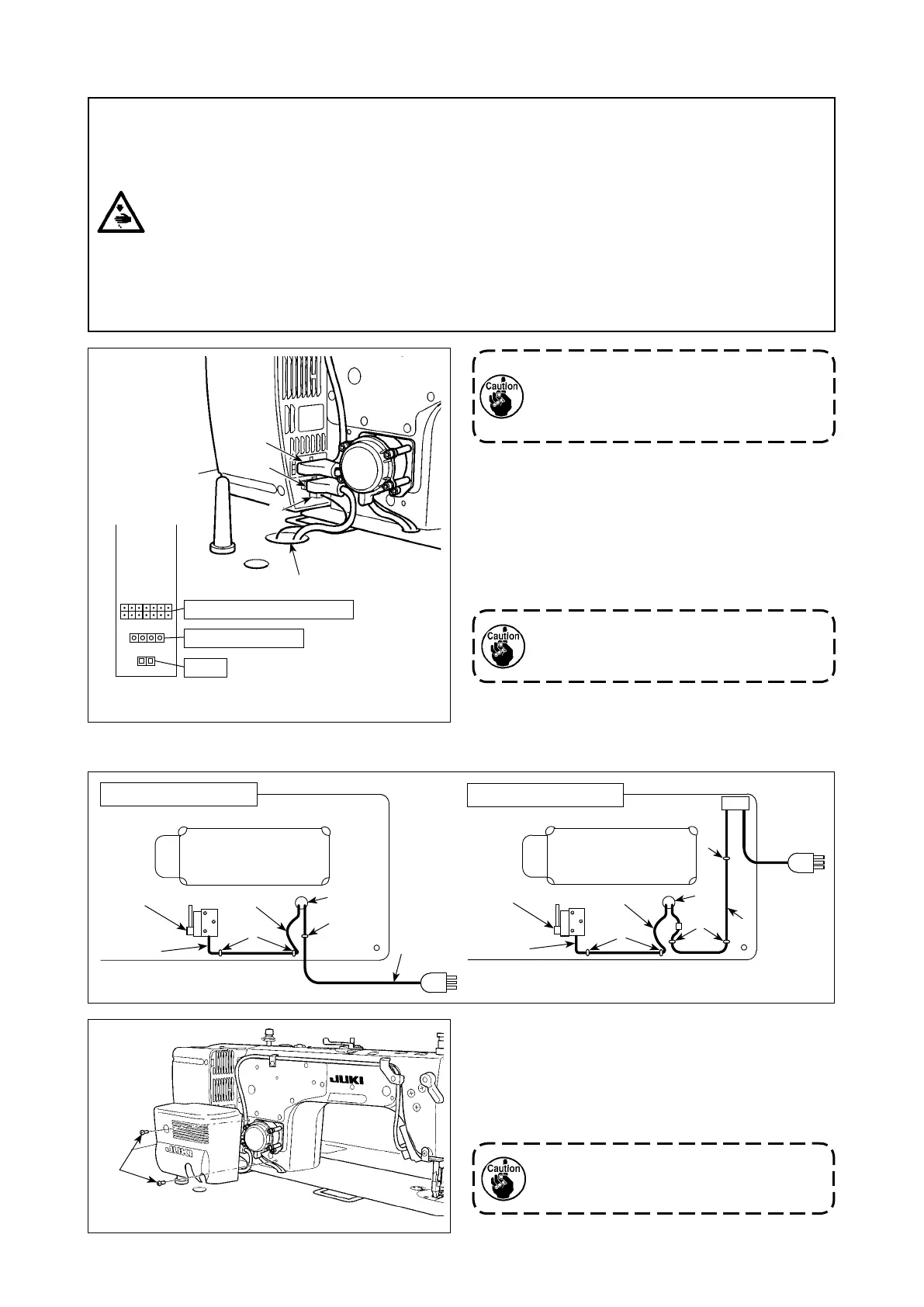

4. Connecting the connector
WARNING :
• To protect against personal injury resulting from abrupt start of the sewing machine, be sure to
turn the power OFF, unplug the machine and wait for ve minutes or more before installing the
pedal sensor.
• To prevent damage of device caused by maloperation and wrong specications, be sure to connect
all the corresponding connectors to the specied places. (If any of the connectors is inserted into
a wrong connector, not only the device corresponding to the connector can break but also it can
start abruptly, inviting the risk of personal injury.)
• To prevent personal injury caused by maloperation, be sure to lock the connector with lock.
• Do not connect the power plug until the connection of cords is completed.
• Fix the cords while taking care not to forcibly bend them or excessively clamp them with staples.
• As for the details of handling respective devices, read carefully the Instruction Manuals supplied
with the devices before handling the devices.
Do not insert the power plug into the wall
outlet.
Check to be sure that the power switch is
turned OFF.
1) Connect the connectors listed below to the con-
trol box in the order of ❶ to ❸.
❶ Pedal sensor cable
❷ AC input cable
❸ Machine head connector
For the connection ports of the cables, refer to
the connector layout drawing.
Be sure to fully insert the connectors into
the corresponding ports until they are
locked.
2) Draw out cable of the control box through cable
draw-out hole ❹ to route it to the underside of
the sewing machine table.
3) Fix pedal sensor cable ❶ and AC input cable ❷
with a staple ❺.
4) Attach the solenoid cover with two solenoid cover
setscrews ❻ which are supplied with the unit as
accessories.
Pedal sensor
❶
Slack
Underside of the table
❺
❺
❺
❹
❷
Pedal sensor
❶
Slack
Underside of the table
❺
❺
❹
❷
(For CE)
Connector connection diagram
Pedal
AC power supply
Machine head connector
Take care not to allow the cords to be
caught under the cover when attaching
the cover.
❶
❹
❷
❸
❻
