JUKI LU-1508H Engineer's Manual

−33 −

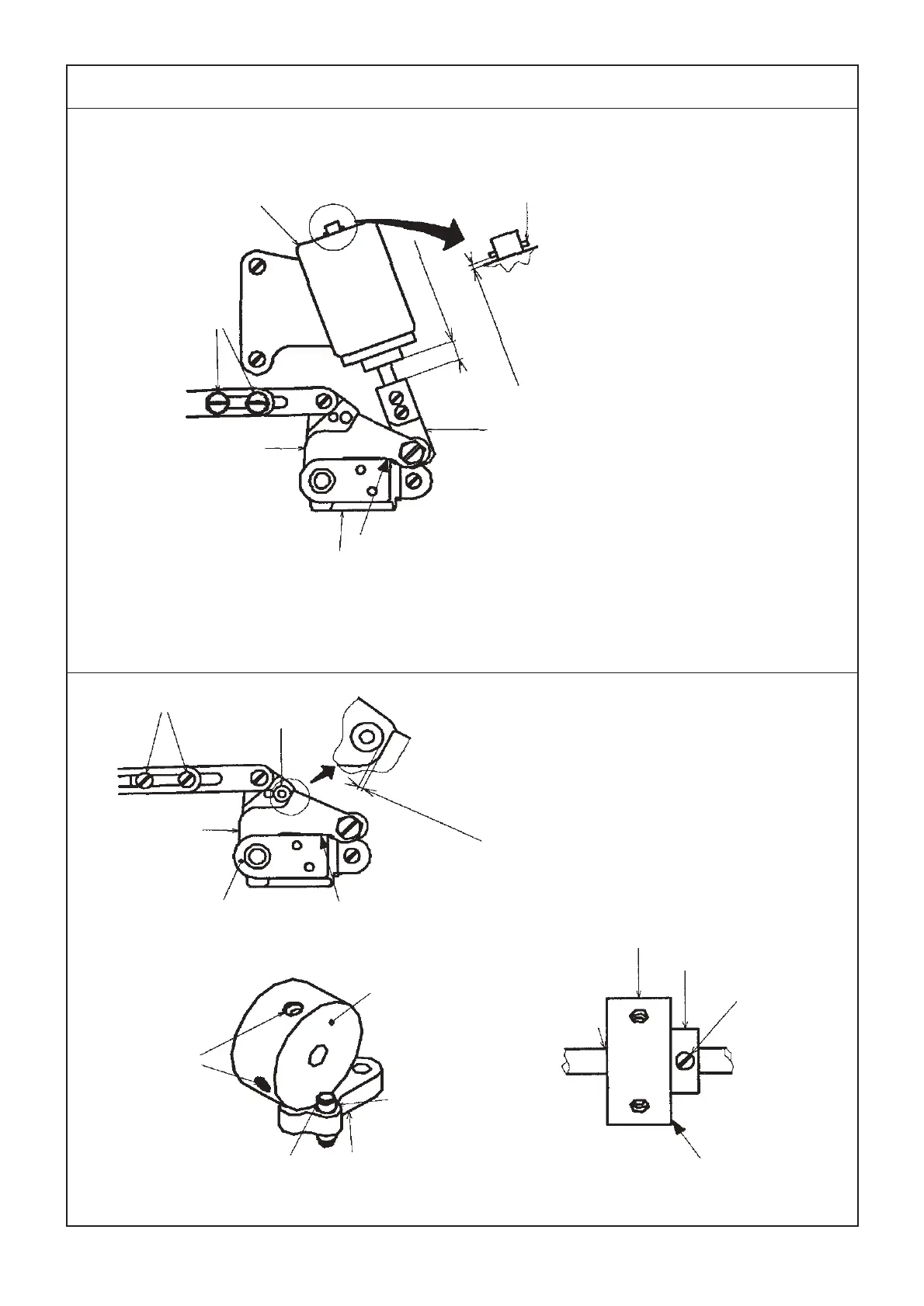

5) Thread trimmer solenoid
6) Thread trimmer cam
①
②
③
④
⑤
⑥
0.05 to 0.15 mm
(9 to 10 mm)
①
②
③
0.1 to 0.2 mm
Fig. 59
Fig. 60
Fig. 61
To come in close contact with each other
Condition
• Link installing base comes in close
contact with thread trimmer driving
plate.
Condition
• Thread trimmer driving plate comes in close
contact with link installing base.
④
⑦
⑧
Fig. 62
Hook driving shaft
To come in close contact
with each other
Link installing base To come in close contact
with each other
④
⑤
⑥
To come in close
contact with each other
Thread trimmer roller shaft
Standard Adjustment
