5. PORTION TO WHICH LOCKTITE IS APPLIED
LOCKTITE has been applied to the following parts at the time of assembly at the factory.
When an assembly which includes the aforementioned parts has been disassembled, be sure to wash the
LOCKTITE applied part using a paint thinner or the like, and re-assemble it using LOCKTITE after removing
any moisture from the mating faces.
If it is hard to remove a part which has been fixed using LOCKTITE, heat it using a torch lamp or the like to
help remove the part.
(Note) Avoid disassembling to the utmost.

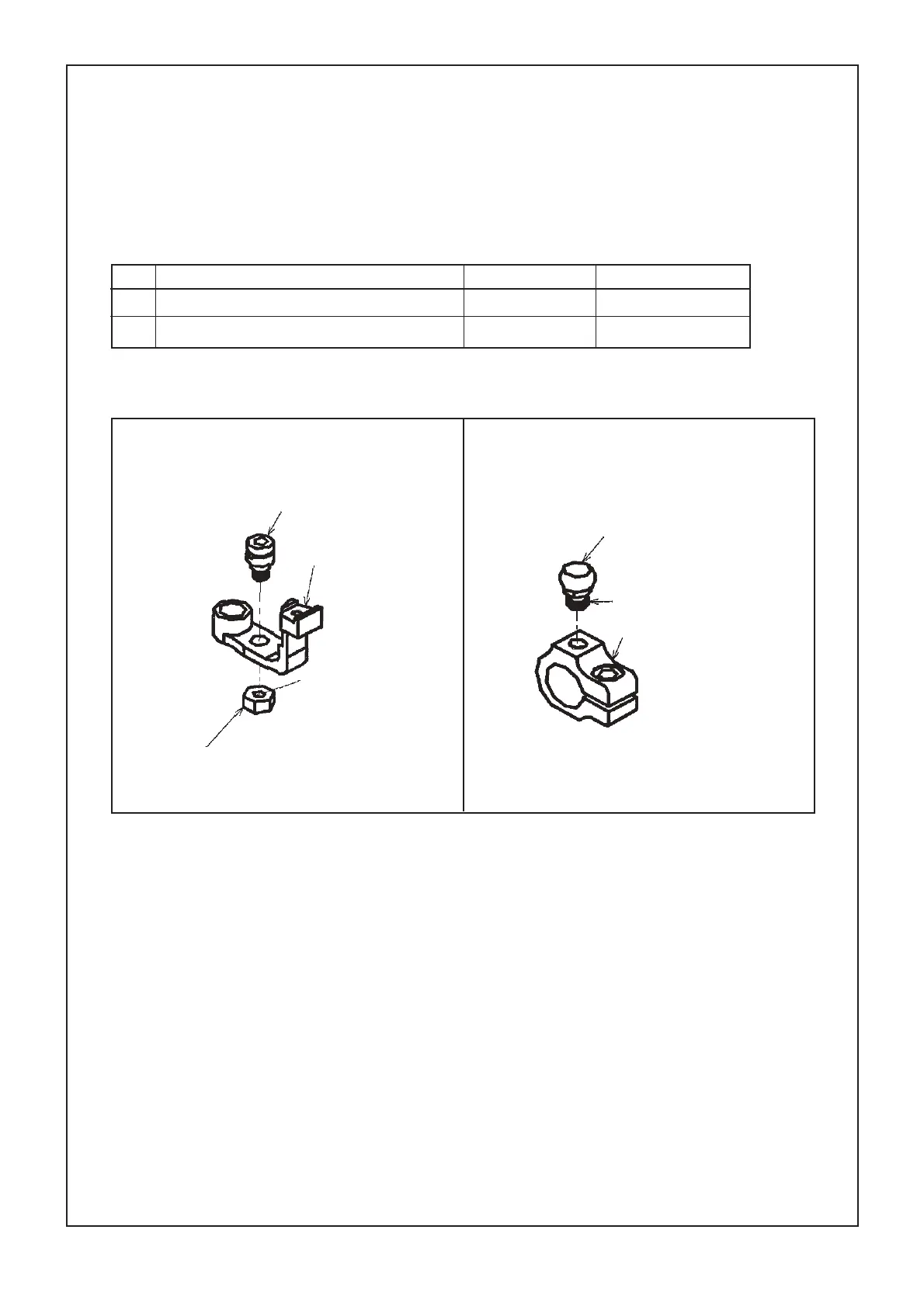

No. 1
No. Portion to which LOCKTITE is applied Part No. LOCKTITE No.
1 Crank screw stud pin NS6110420SP LOCKTITE #242
2 Vertical change base arm pin 10715308 LOCKTITE #638
No. 2
Vertical change base arm pin
LOCKTITE applied
Vertical adjusting arm
Crank screw stud pin
Inner hook guide arm
LOCKTITE applied
Crank screw stud pin lock nut
