JUKI LU-1508H Engineer's Manual

−9 −
①
②
A
③
④
④
⑤
⑥
⑦
1.5 ± 0.3 mm 2.5 ± 0.3 mm (LU-1508H)
2.3 ± 0.2 mm
⑥
⑦
⑧
0.05 to 0.15 mm
0.1 to 0.2 mm
Fig. 12
Fig. 13
Fig. 14
Fig. 15
Fig. 16

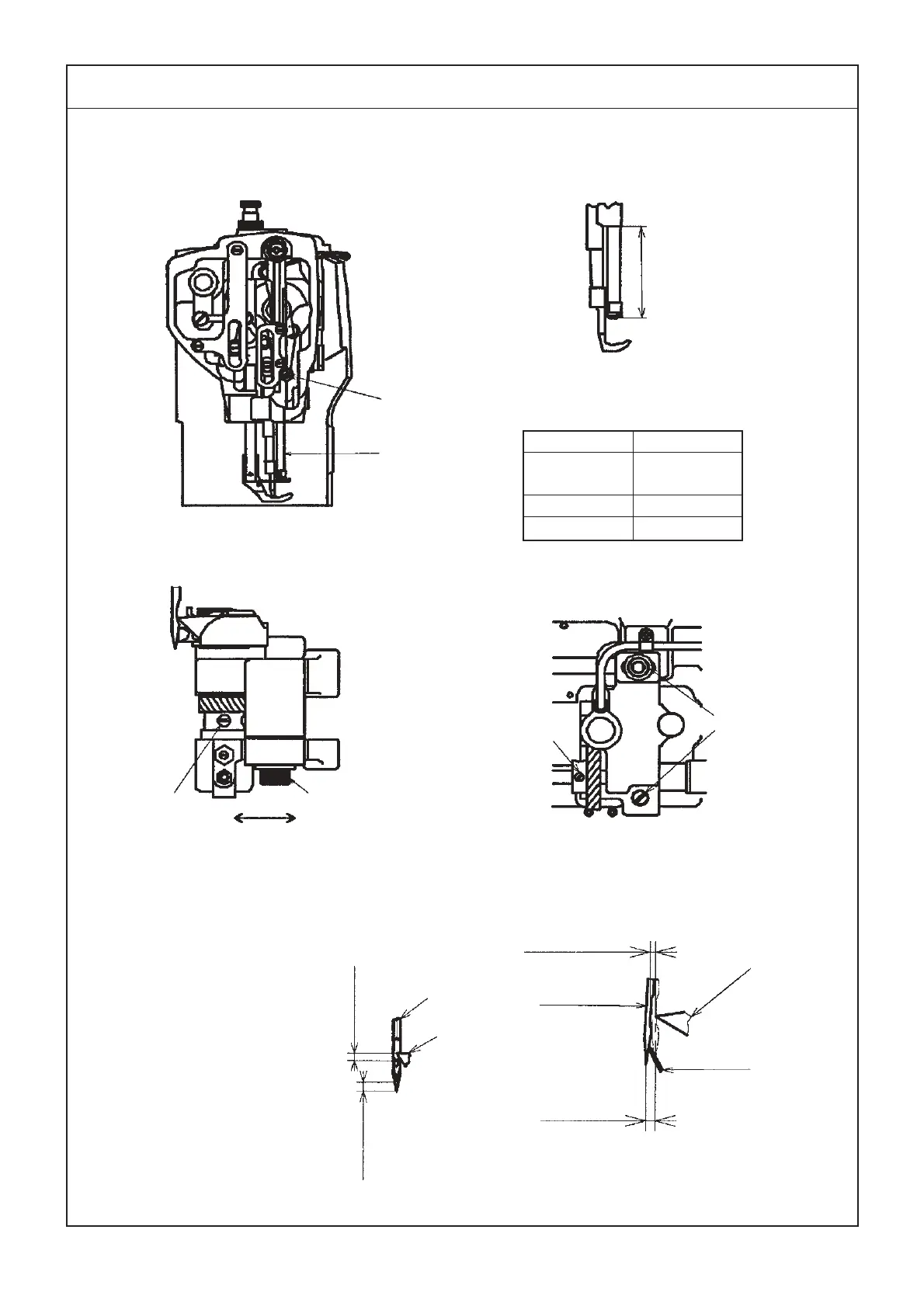

7) Needle-to-hook timing
Conditions
• Feed amount : 0 mm
• Needle bar goes up from the
lower dead point of its stroke.
Fig. 11
Model Dimension A
LU-1510 56.8 mm
LU-1508
LU-1510-7 58.8 mm
LU-1508H 52.3 mm
Standard Adjustment
