−47 −
2) Installing the pneumatic device components
◎ When installing the automatic presser foot lifter to LU-1510-7 after set-up of the machine
◎ When installing the automatic presser foot lifter to LU-1510, LU-1508 and LU-1508H after set-up of the
machine
①
②
③
④
⑤
⑥
⑦
⑧
⑨
⑩
⑪
⑥
①

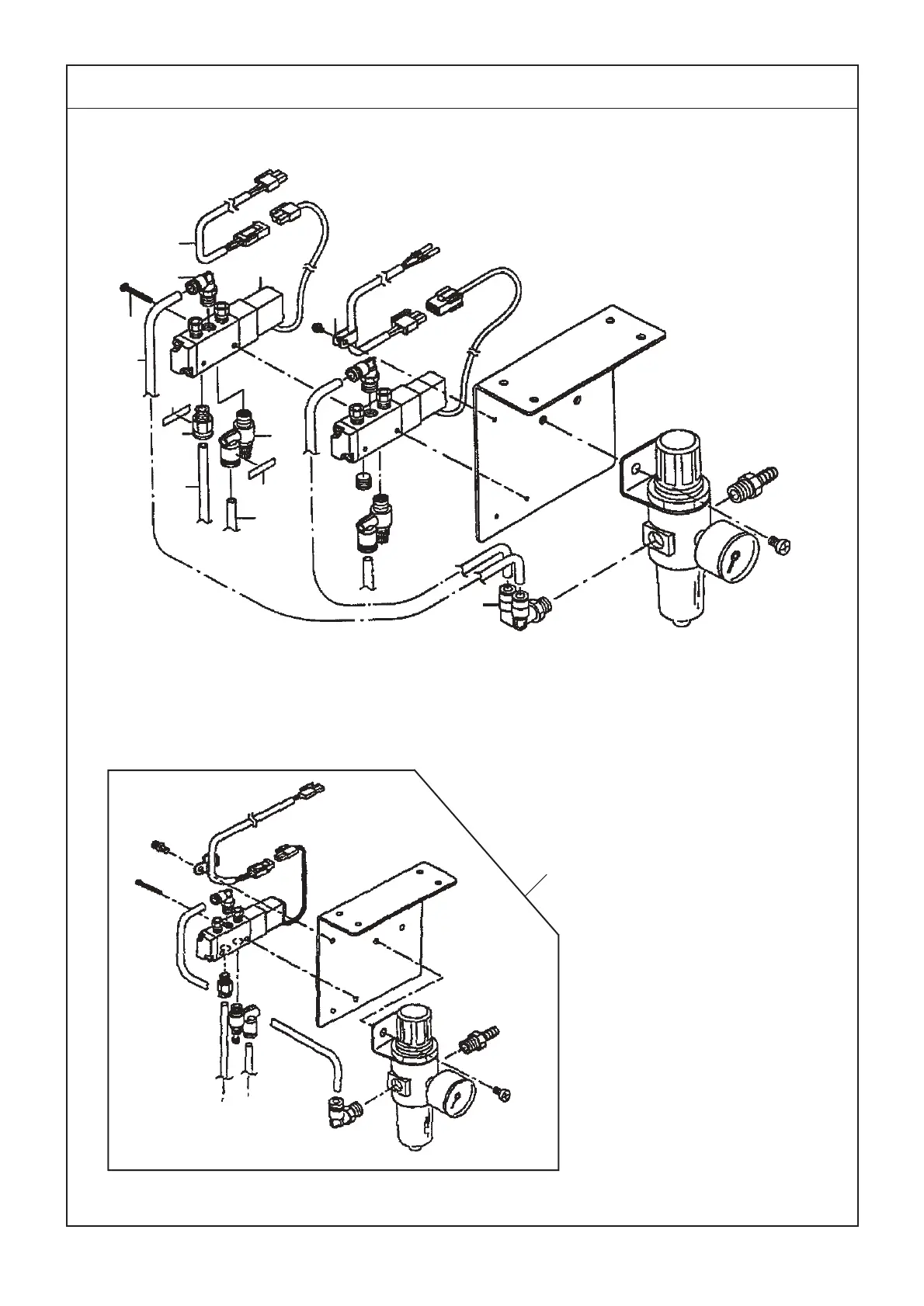

Fig. 77
Fig. 78
◯ Pneumatic device used : AK-119A and AK-119B
• Install the automatic presser foot lifter in the state
of adding this device to the pneumatic
components being used now.
◯ Pneumatic device used : AK-120K and AK-120B
• Install the pneumatic components (asm.) as listed.
※ Specifications of the pneumatic device
• AK- □□□ A : Knee switch type
• AK- □□□ B : Pedal switch type
Installing procedure
