1. PRINCIPAL PARTS

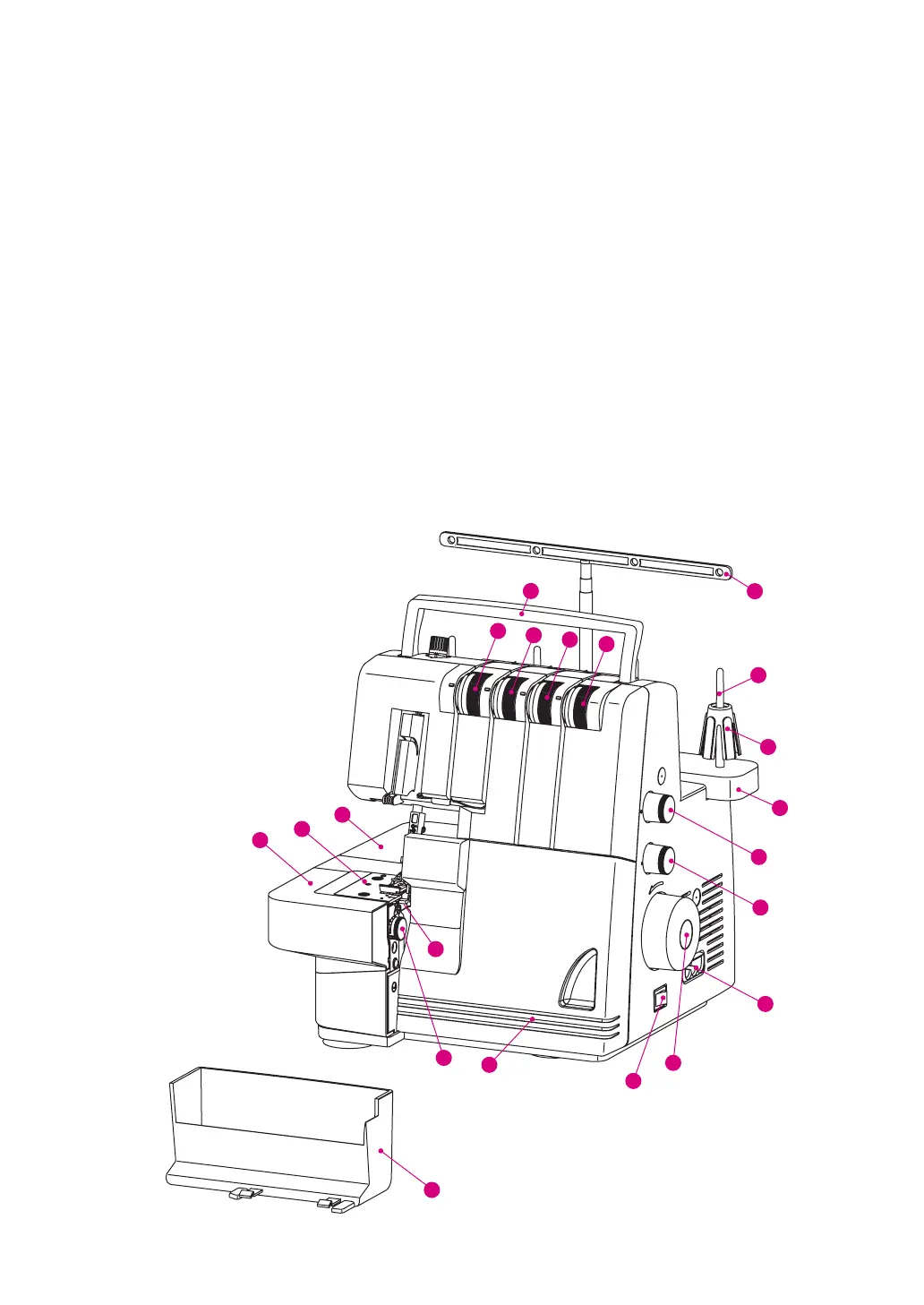

(1) MACHINE OVERVIEW
1. Thread guides and holder
2. Handle
3. Left needle thread tension dial (yellow)
4. Right needle thread tension dial (green)
5. Upper looper thread tension dial (blue)
6. Lower looper thread tension dial (red)
7. Stitch plate
8. Cloth plate
9. Attached extension table
10. Cutting width dial
11. Looper cover
12. Power & light switch
13. Hand wheel
14. Socket
15. Differential feed adjusting dial
16. Stitch length dial
17. Spool stand
18. Spool holder
19. Spool pin
20. Stationary lower knife
21. Chip box
