5 Program editor
40

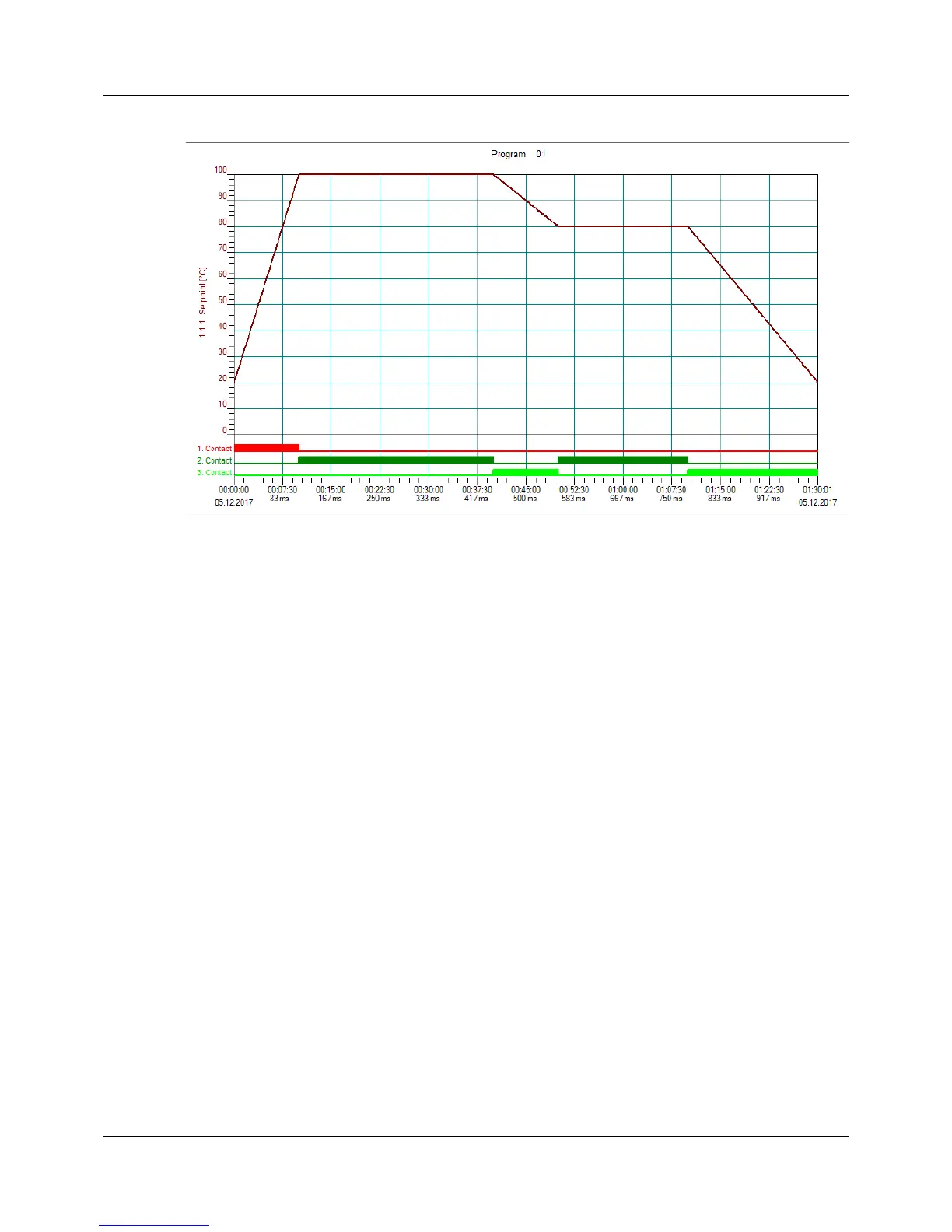

Example 2: Setpoint ramp
The setpoi
nt value
programme
d in
a
section (e.g.
20
in section
1)
changes
gradually
during
that section
to
the
setpoint
value of
the next
section (e.g.
100 in
section
2).
This produces
a
course
in a
ramp
shape.
For
a
setpoint
value
to
remain
constan
t
in
a section
(e.g. 100
in
section
2),
the
same setpoint
value
must
be specifie
d for the next s
ection (e.g.
100 in section 3
).
39
41
Table of Contents
Default Chapter
3
Table of Contents
3
1 Introduction
7
Safety Information
7
Intended Use
8
Qualification of Personnel
8
Acceptance of Goods, Storage, and Transport
8
Checking the Delivery
8
Important Information about Storage and Transport
8
Returning Goods
8
Disposal
9
Identifying the Device Version
10
Nameplate
10
Order Details
11
Scope of Delivery
12
Accessories
12
Brief Description
13
Block Diagram
13
Device Types
14
2 Mounting
15
Installation Instructions
15
Cleaning
15
Dimensions
16
DIN Rail Installation
20
Panel Mounting
21
3 Electrical Connection
23
Installation Notes
23
Connection Elements
24
Connection Diagram
26
Analog Input
26
Digital Inputs
26
Analog Output
27
Digital Outputs
27
RS485 Interface
28
Voltage Supply
28
Galvanic Isolation
28
4 Operation
29
Display and Control Elements
29
Language Selection
31
Basic Status
31
Manual Mode
32
Operating Levels
32
Level Inhibit
34
User Level
34
Device Information
34
Versions
34
Service
35
5 Program Editor
37
Program Administration
37
Program Simulation (Setup Only)
39
6 Parameterization
41
Parameter Blocks
41
Controller Types
43
7 Configuration
45
Identification (Setup Only)
45
Selectors
45
System Data
48
Display/Operation
48
Analog Input
50
Fine Adjustment
53
Analog Output
55
Digital Inputs
56
Digital Outputs
57
Controller
57
Controller Configuration
57
Controller Input
58
Autotuning
59
Control Loop Monitoring (Setup Only)
62
Output Level Monitoring (Setup Only)
64
Setpoint Values
67
Ramp Function
67
Program Controller
68
Timer
69
Limit Value Monitoring Functions
71
Alarm Functions and Switching Behavior
74
Serial Interface
76
8 Configuration - Setup Only
77
ST Code
77
Digital Control Signals
78
User Level
79
Flags
79
Math/Logic
80
Service
81
Ext. Analog Inputs
82
Ext. Digital Inputs
82
Customized Linearization
83
9 Online Parameter (Setup Only)
85
Fine Adjustment
85
Approval of Extra Codes
85
Calibrate/Test
86
Additional Process Values for Online Data
90
10 Start-Up Parameter (Setup Only)
91
Process Values
91
Display
92
11 Technical Data
95
Analog Input
95
Digital Inputs
97
Analog Output
97
Digital Outputs
97
Interfaces
98
Display
98
Electrical Data
98
Environmental Influences
99
Case
99
Approvals/Approval Marks
100
12 China Rohs
101
