55
7 Configuration

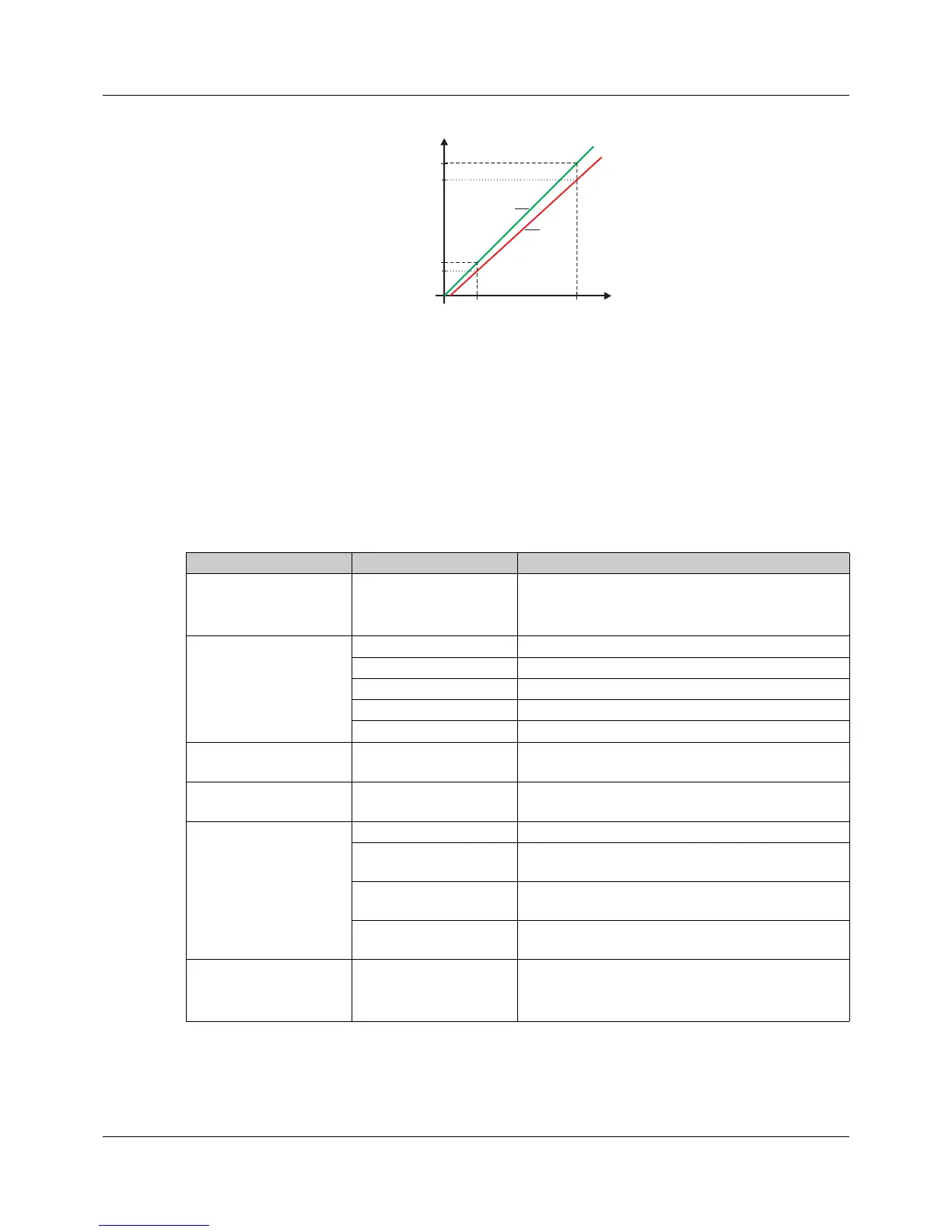

(1) Characteristic line before fine adjustment
(2) Characteristic line after fine adjustment
Reverse fine adjustment
The following settings must be made to reverse the fine adjustment: actual start value = target start val-
ue; actual end value = target end value
Switching off fine adjustment leads to this being reversed.
7.6 Analog output
The device can optionally be equipped with an analog output.
Category Signal Description
Source Analog selector
No selection
Analog signal that is issued on the analog output.
In the event of "No selection" a voltage of 0 V or
0 mA is output (depending on the signal type).
Signal type Physical output signal
0...10 V Voltage signal
0...20 mA Current signal
4...20 mA Current signal
2...10 V Voltage signal
Scaling start -1999 to 9999 (0) Start value of the input signal range
Scaling end -1999 to 9999 (100) End value of the input signal range
Response in case of a
fault
Value of the output signal in case of a fault
Replacement value Configurable value (see "Replacement value" pa-
rameter)
Low value Fixed value for measuring range underflow/short-
circuit
High value Fixed value for measuring range overflow/probe
break
Replacement value 0 to 10 V
or
0 to 20 mA
Replacement value for the output signal in the
event of a fault
(value range depending on the signal type)
