2 Installation - Electrical Connection
10
2.4 Installation notes
• The device is not suitable for installation in explosive areas (Ex areas).
• The choice of cable material, the installation and the electrical connection of the device must
conform to the requirements of DIN VDE 0100 "Installation of low-voltage power circuits"
and/or the appropriate local/national regulations (e.g. based on IEC 60364).
• At maximum load, the cables must be heat resistant up to at least 80 °C.
• The electrical connection must only be carried out by qualified personnel.
• The device is intended to be installed in electrical cabinets or systems. It shall be operated by
mains protected with a branch circuitry overcurrent protection device not more than 20 Amps.
For servicing/repairing a Disconnecting Device shall be provided to disconnect all conduc-
tors.
• The load circuit must be fused for the maximum relay current, in order to prevent the output
relay contacts from becoming welded in the event of a short circuit occurring at that point.
• The electromagnetic compatibility (EMC) meets the standards and regulations cited in the
technical data.
• Run input, output and supply cables separately and not in parallel with one another.
• Sensor and interface cables should be shielded cables with twisted conductors. Do not run
cables close to current-carrying components or cables. Ground the shielding on one side.
• Do not connect other consumers to the power terminals of the device.

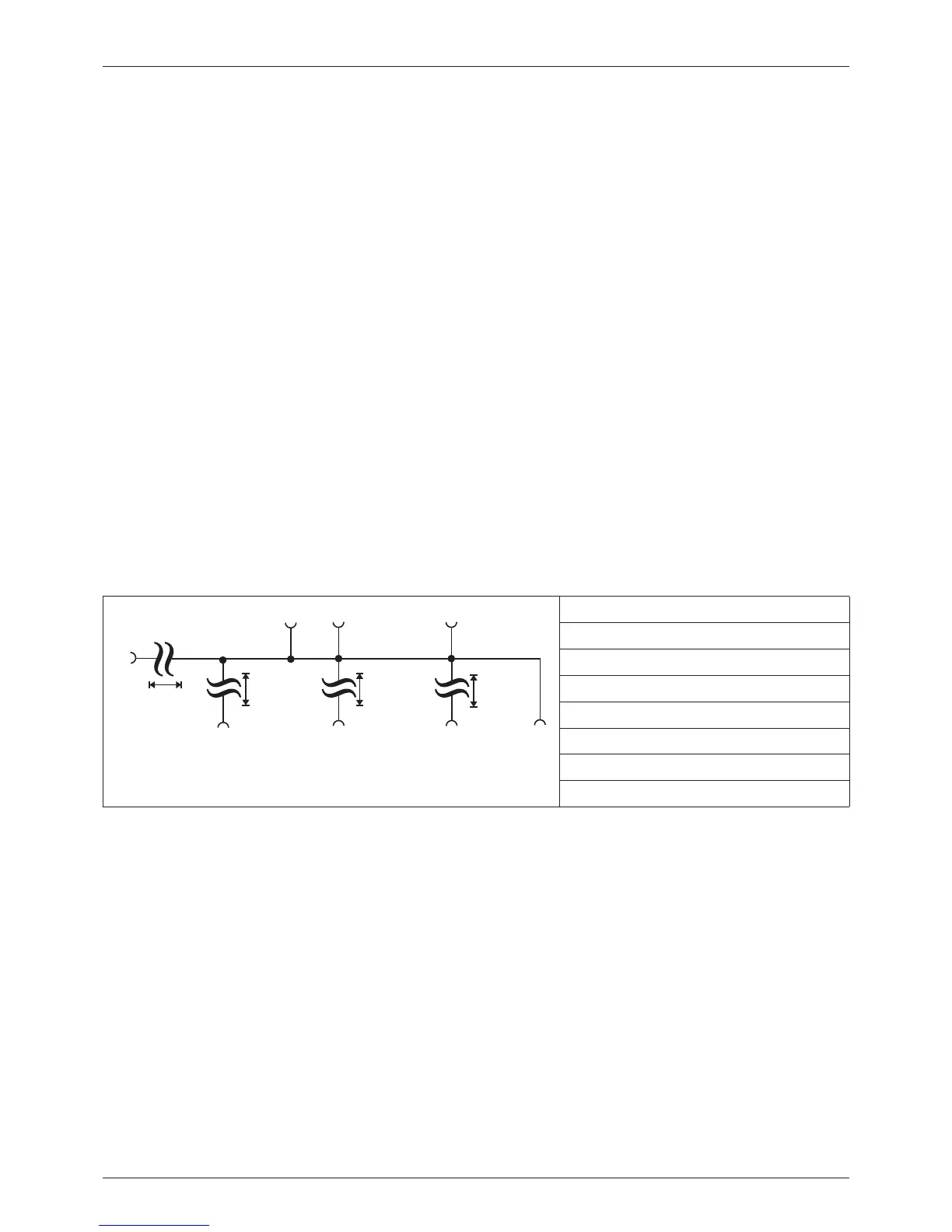

2.5 Electrical isolation
(1) Analog input
(2) Binary input
(3) Setup interface (USB)
(4) Voltage supply
(5) RS485 interface
(6) Analog output
(7) Relay outputs
(8) Logic outputs
