Display 1 Byte (0 ..100%):
The function "Display 1-Byte" (1) is the KNX function for displaying one-bit integer values
(0...100%) in SV-Home.
The function reads the KNX group address entered in the input field "Values (1 Byte)" (2).
As values can be sent without a unit in the KNX system, the input field "Unit" (3) can be
used to enter an individual unit, which is added to the numerical value in the visualisation.
In addition, the current status of the function can be polled by defining two initialisation
addresses (4) on starting the system.

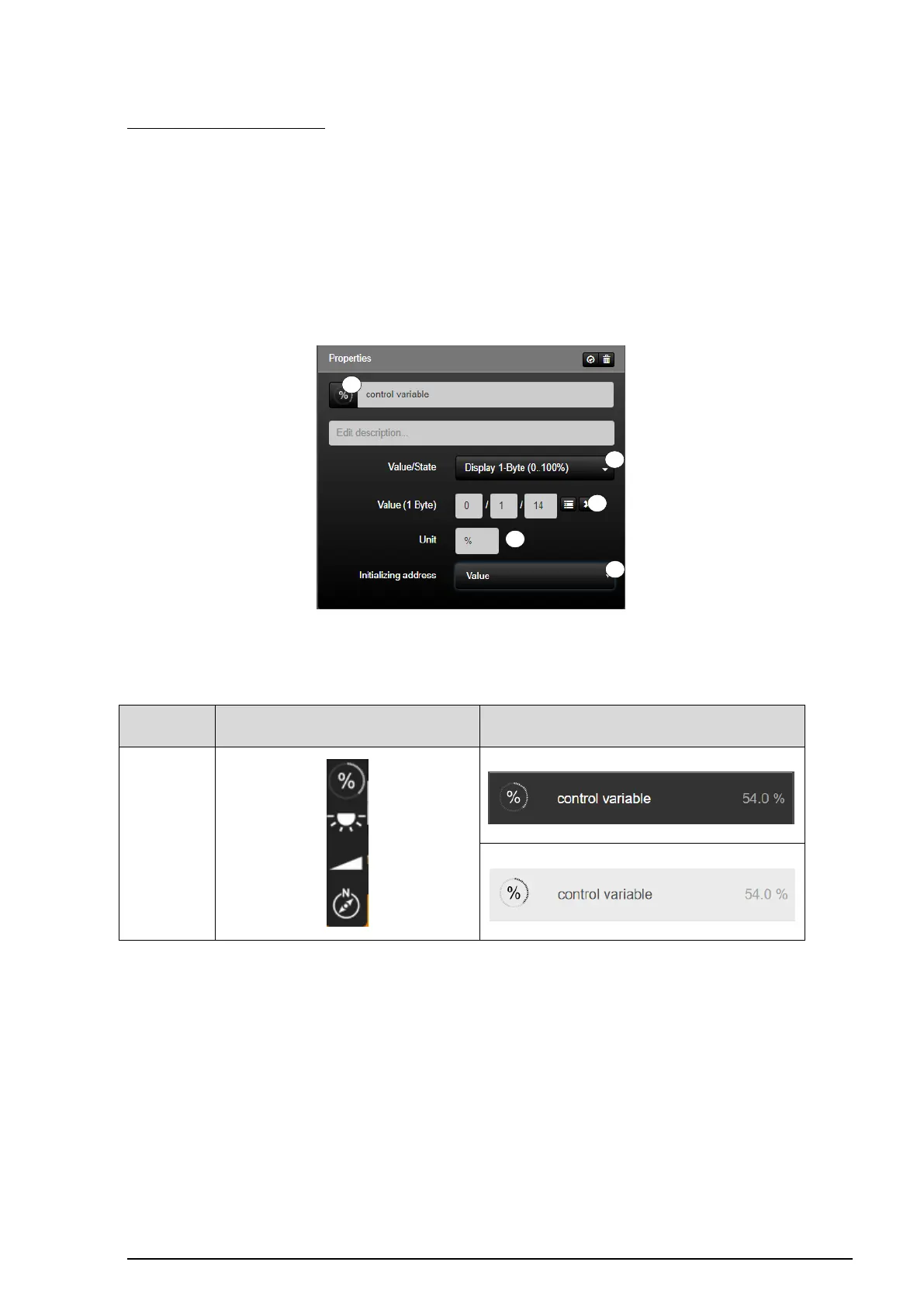

Figure 105: Parameters of the "Display 1-byte" function
The function possesses the following individualisation options within the icon library (5).
KNX function
Selection of the icon library in SV-Control
Operating and display element in SV-Home
Display 1 Byte
(0 ..100%)
Table 54: Display of the "Display 1-Byte" function
