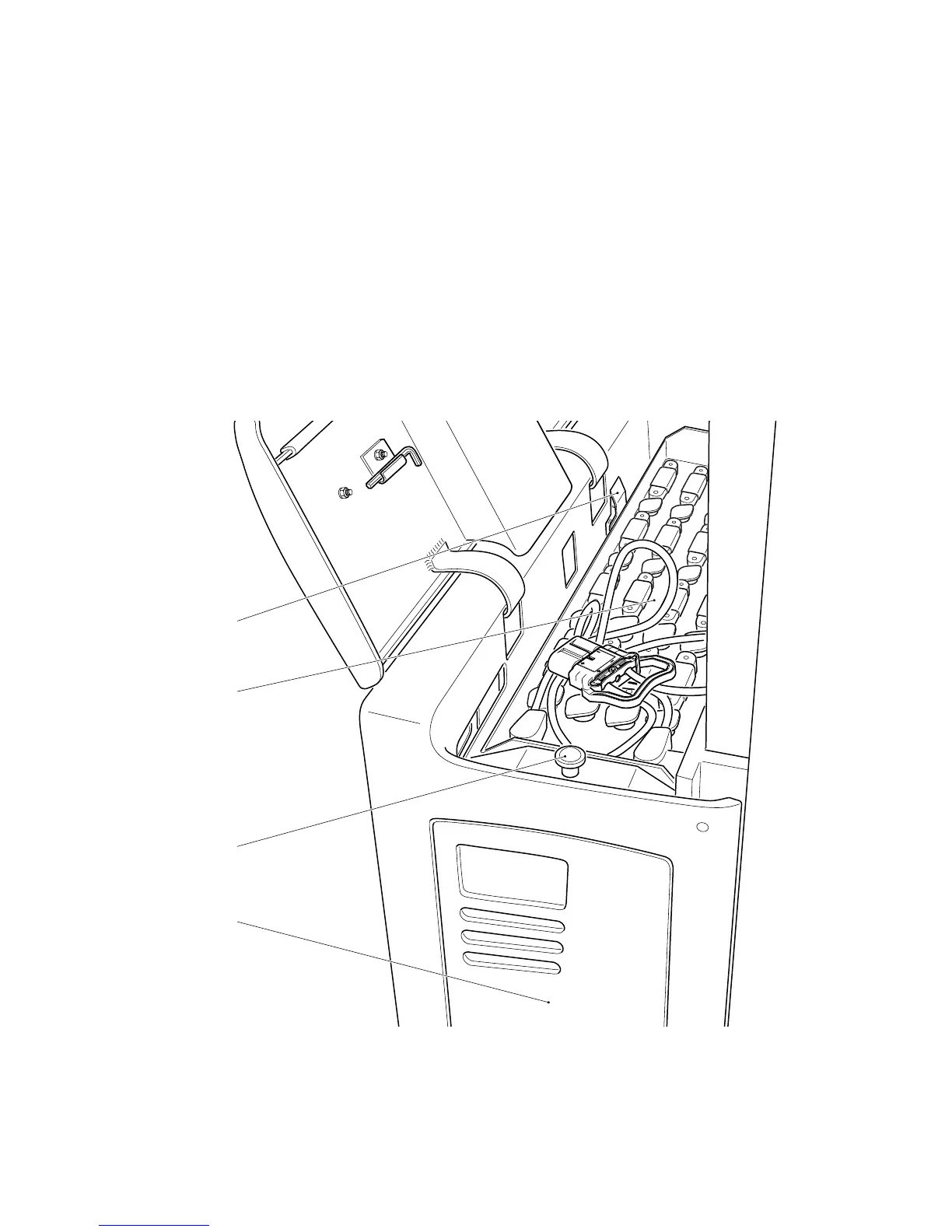

5.3 Lateral battery change (o)
– Withdraw the battery connector.
– Pull the locking mechanism (12) of the battery cover upwards while firmly holding
the battery cover (13).
– Lift out the battery cover (13) and keep it in a safe location.
– Position battery trolley next to the truck.
– Push cautiously battery (11) from the truck onto the battery trolley / battery change
station.
f
Be careful not to place your fingers between partition wall of the truck and the battery.
Heed the operating instructions of the battery change station.
Mounting the battery:
– Insert battery up to battery stop (10).
– Press in the battery stop and keep it in that position.
– Pull battery into the truck.
The re-assembly can be performed by reversing the above actions; pay attention to
the correct mounting position and battery connection.
13
12
11
10
D 9
1001.GB
5.3 Lateral battery change (o)
– Withdraw the battery connector.
– Pull the locking mechanism (12) of the battery cover upwards while firmly holding
the battery cover (13).
– Lift out the battery cover (13) and keep it in a safe location.
– Position battery trolley next to the truck.
– Push cautiously battery (11) from the truck onto the battery trolley / battery change
station.
f
Be careful not to place your fingers between partition wall of the truck and the battery.
Heed the operating instructions of the battery change station.
Mounting the battery:
– Insert battery up to battery stop (10).
– Press in the battery stop and keep it in that position.
– Pull battery into the truck.
The re-assembly can be performed by reversing the above actions; pay attention to
the correct mounting position and battery connection.
13
12
11
10
