threaded into the grounding points. Applying installaon torque to the screw when
improperly threaded may result in damage to the terminal.
CAUTION: The maximum torque rang of the grounding screws on the router is 4.34
lb-in (0.49 Nm). The grounding screws may be damaged if excessive torque is applied.
Use only a torque-controlled driver to ghten screws. Use an appropriately sized
driver, with a maximum torque capacity of 5 lb-in. or less. Ensure that the driver is
undamaged and properly calibrated and that you have been trained in its use. You may
wish to use a driver that is designed to prevent overtorque when the preset torque
level is achieved.
9. Dress the grounding cable, and verify that it does not touch or block access to router components,
and that it does not drape where people could trip on it.

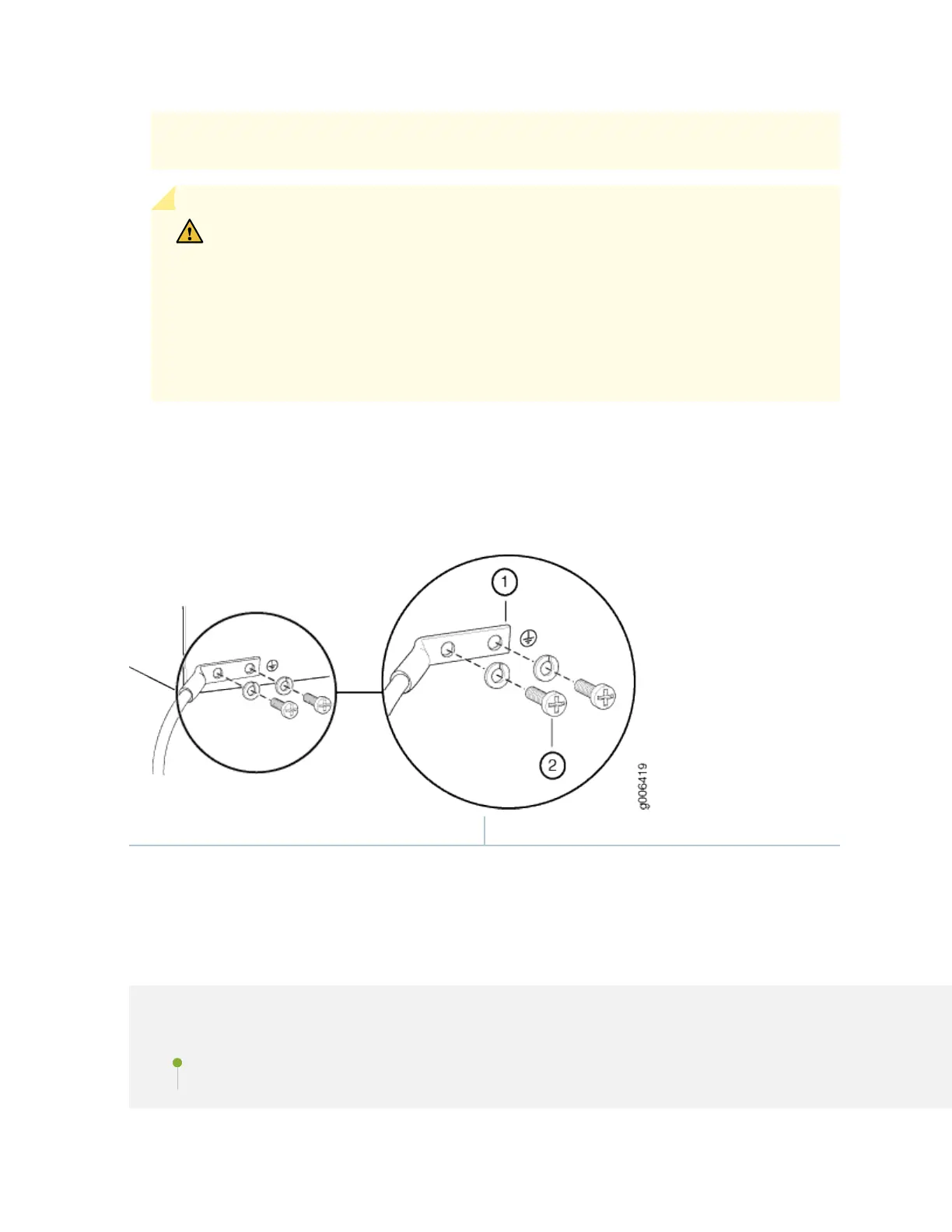

Figure 8: Grounding Points on the ACX Series Router
1—
Grounding lug
2—
SAE 10-32 screw and washer
Step 4: Connect External Devices and Cables
IN THIS SECTION
Tools Required to Connect External Devices and Cables | 10
9
