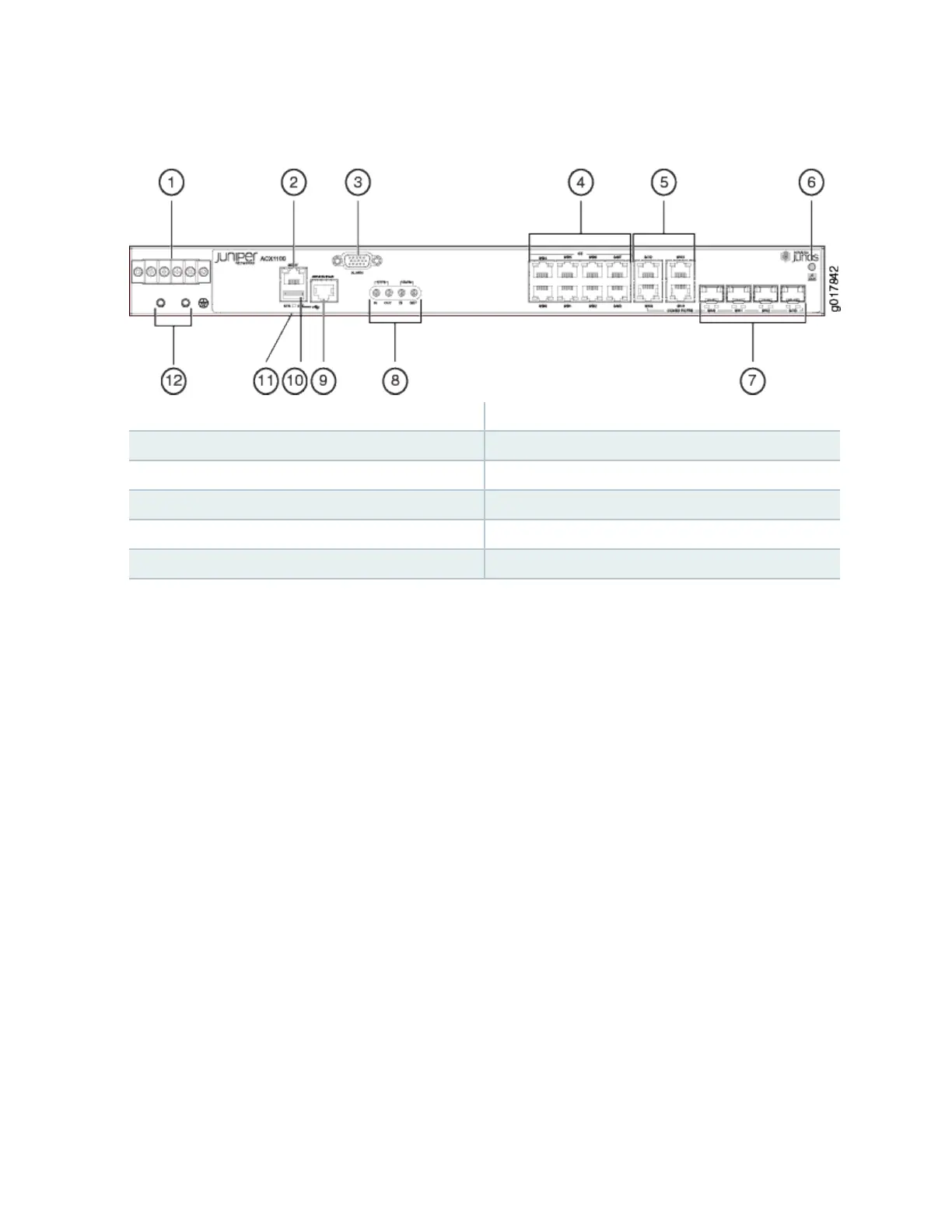

Figure 3: Front Panel of the DC-Powered ACX1100 Router

1—

DC terminals

7—

Combinaon Gigabit Ethernet SFP ports

2—

Management Ethernet port

8—

1-PPS and 10-MHz input and output

3—

Alarm input and output contacts

9—

Console or auxiliary port

4—

Gigabit Ethernet (GE) ports

10—

USB port

5—

Combinaon Gigabit Ethernet RJ-45 ports

11—

System (SYS) LED

6—

ESD point

12—

Grounding terminals

Step 1: Prepare the Site for Installaon

Prepare your site for installaon by observing the following guidelines:

• You can install the router in a four-post rack or cabinet or an open-frame rack.

• The rack rails must be spaced widely enough to accommodate the chassis's external dimensions:

1.75 in. (4.4 cm) high, 9.4 in. (24 cm) deep, and 17.5 in. (44 cm) wide. The outer edges of the

mounng brackets extend the width to 19.2 in. (48.7 cm).

• One person must be available to li the router while another secures the router to the rack.

• The rack must be strong enough to support the weight of the fully congured router, up to 7 lb

(3.2 kg).

• For service personnel to remove and install hardware components, allow at least 2.16 in. (5.5 cm) in

front of the router.

• The rack or cabinet must have an adequate supply of cooling air.
