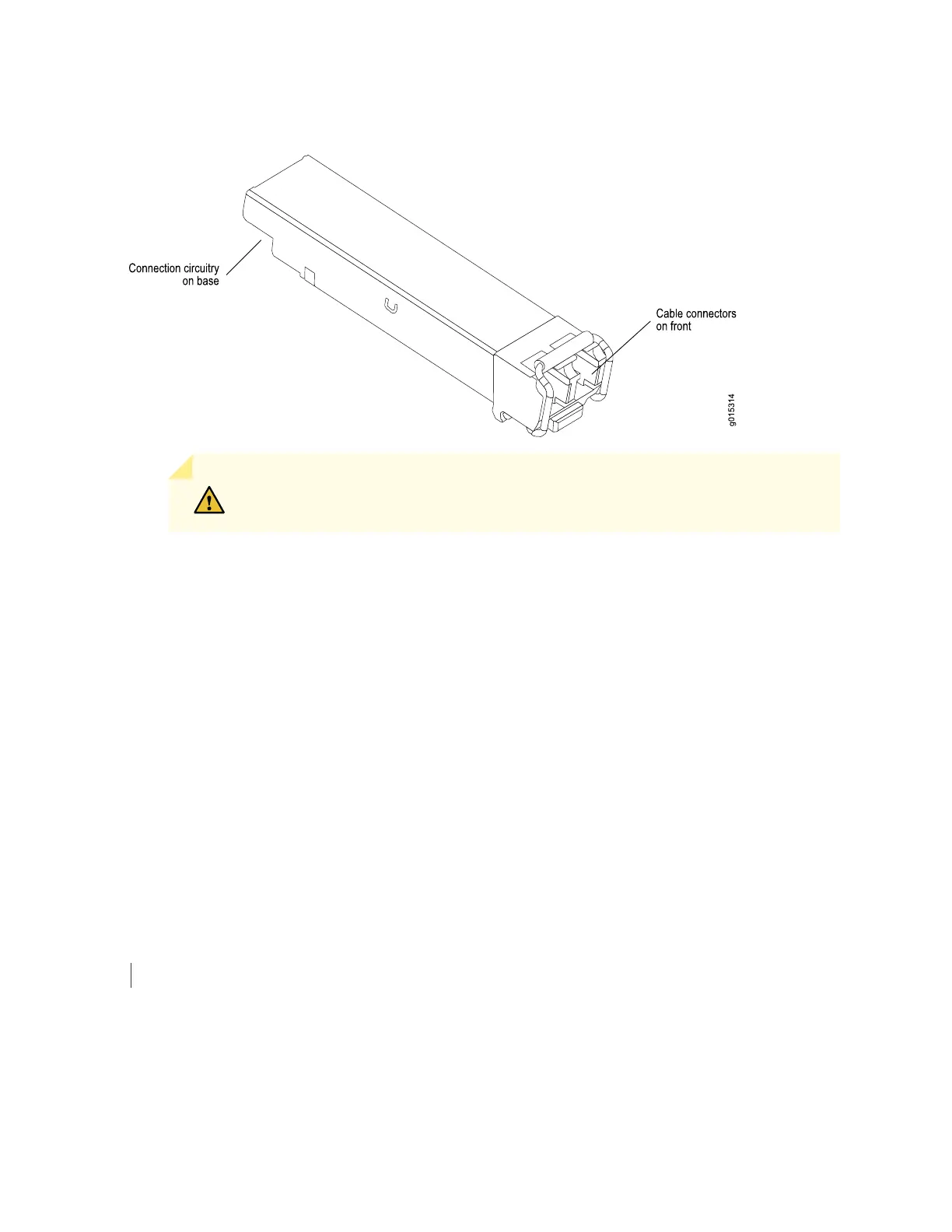

Figure 40: Representative SFP
CAUTION: Be sure to position the SFP correctly before you install it.
3. Hold the SFP so that:
•
The connection circuitry is adjacent to the module's faceplate.
•
The cable connectors are visible when you install the SFP.
4. Slide the SFP as far as you can into the module until the SFP clicks into place.
If the SFP does not slide smoothly into the module, make sure that the orientation of the SFP is correct.
5. Gently pull the SFP to confirm that it is inserted correctly.
If the SFP comes out of the slot when you pull it, repeat Step 4.
6. Connect the new cables to the SFP.
RELATED DOCUMENTATION
Removing SFPs in a CTP2000 Module | 104
