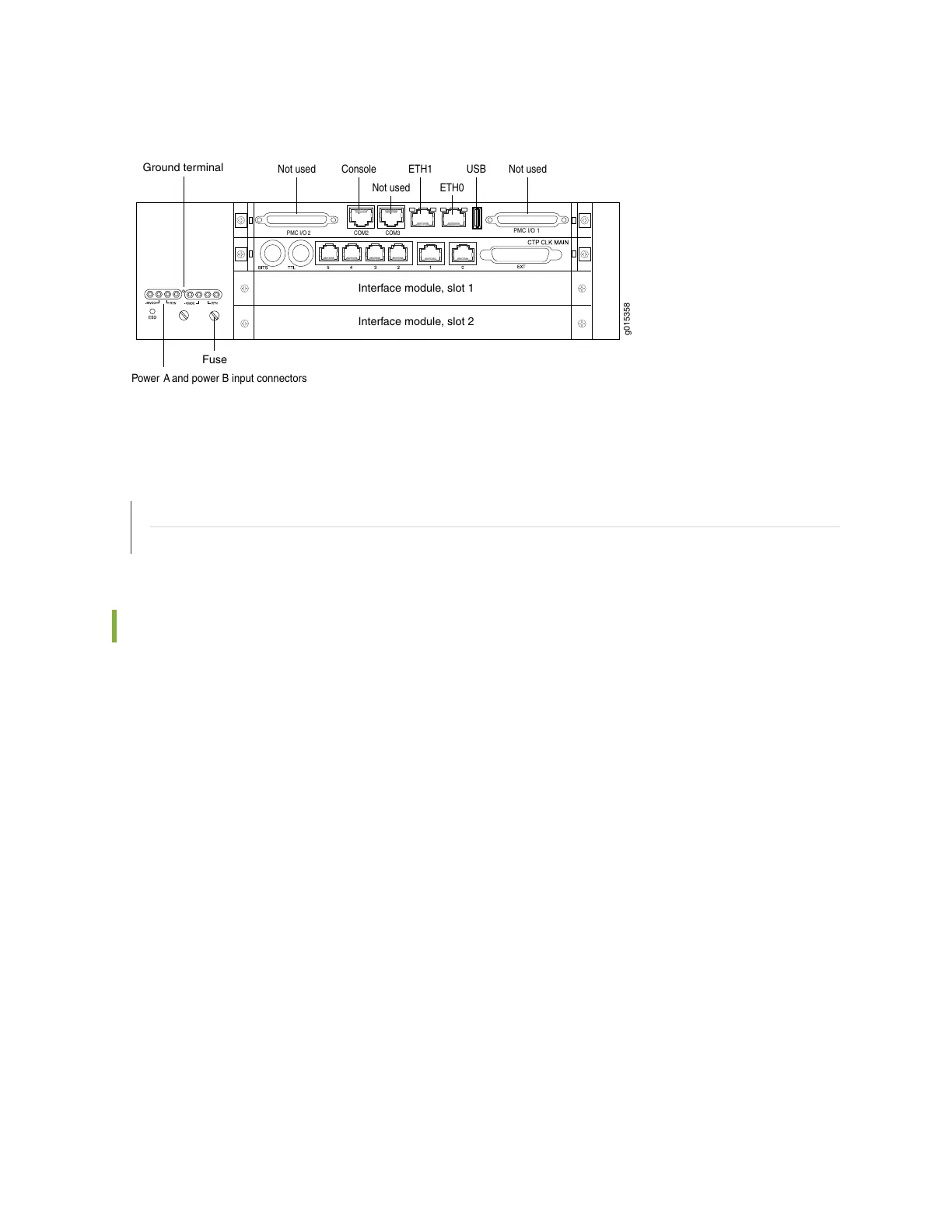

Figure 7: CTP2024 Platform Containing the PP332 Processor (DC Version, Rear View)
Power A and power B input connectors
Ground terminal
Fuse
ETH1 USBConsole
COM2 COM3PMC I/O 2
Not used
Not used
Interface module, slot 1
Interface module, slot 2
g015358
Not used
ETH0
PMC I/O 1
RELATED DOCUMENTATION
CTP2008 Platform | 3
CTP2056 Platform | 7
CTP2056 Platform
The Juniper Networks CTP2056 Circuit to Packet platform can have up to seven removable interface
modules and one removable processor module, and is available in both AC-powered and DC-powered
versions. It has a removable fan tray, and airflow is side-to-side. Figure 8 on page 8, Figure 9 on page 9,
and Figure 10 on page 10 show the CTP2056 chassis containing the PP332 processor (which requires an
RTM card for Ethernet and console port accesses). The new PP833 processor module does not require an
RTM card. All PP833 module access is located on the front panel with all CTP serial and T1/E1 ports. If
you are upgrading from the old PP310 or PP332 processor to the PP833 processor, the RTM card may
be left in the node. But, none of the interfaces (Ethernet or serial ports) on the RTM panel are functional.
7
