Ethernet connection—Provides the 1-Gbps Ethernet connection to the IP network by means of a local
Ethernet switch or router.
•
Console connection—Provides an asynchronous tty connection for locally configuring the CTP Series
device. On the PP310 and PP332 processors, you can connect a console directly to the COM2 port
(which is an RJ-45 type connector) found on the RTM panel.

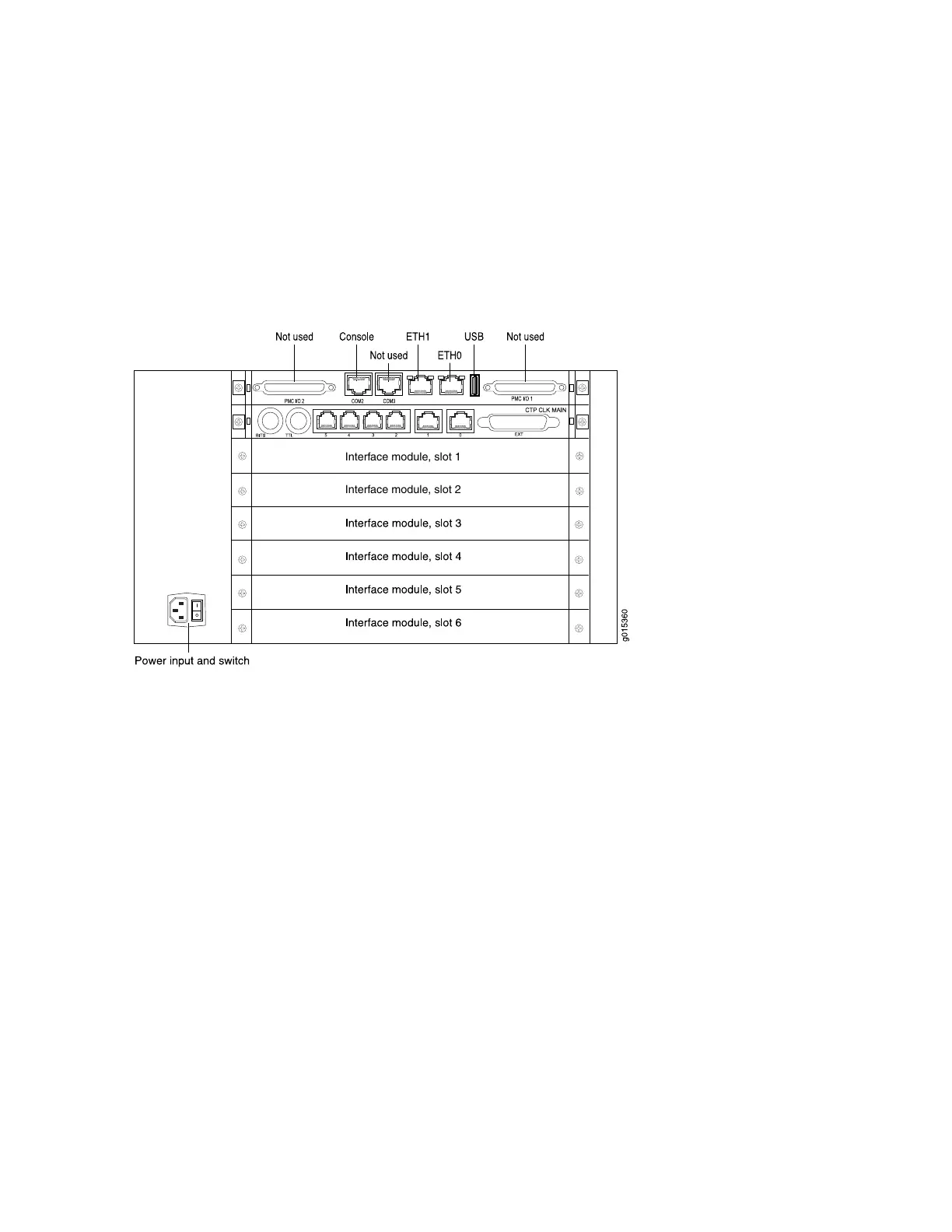

Figure 9: CTP2056 Platform Containing the PP332 Processor (AC Version, Rear View)
Interface module, slot 1
Interface module, slot 2
