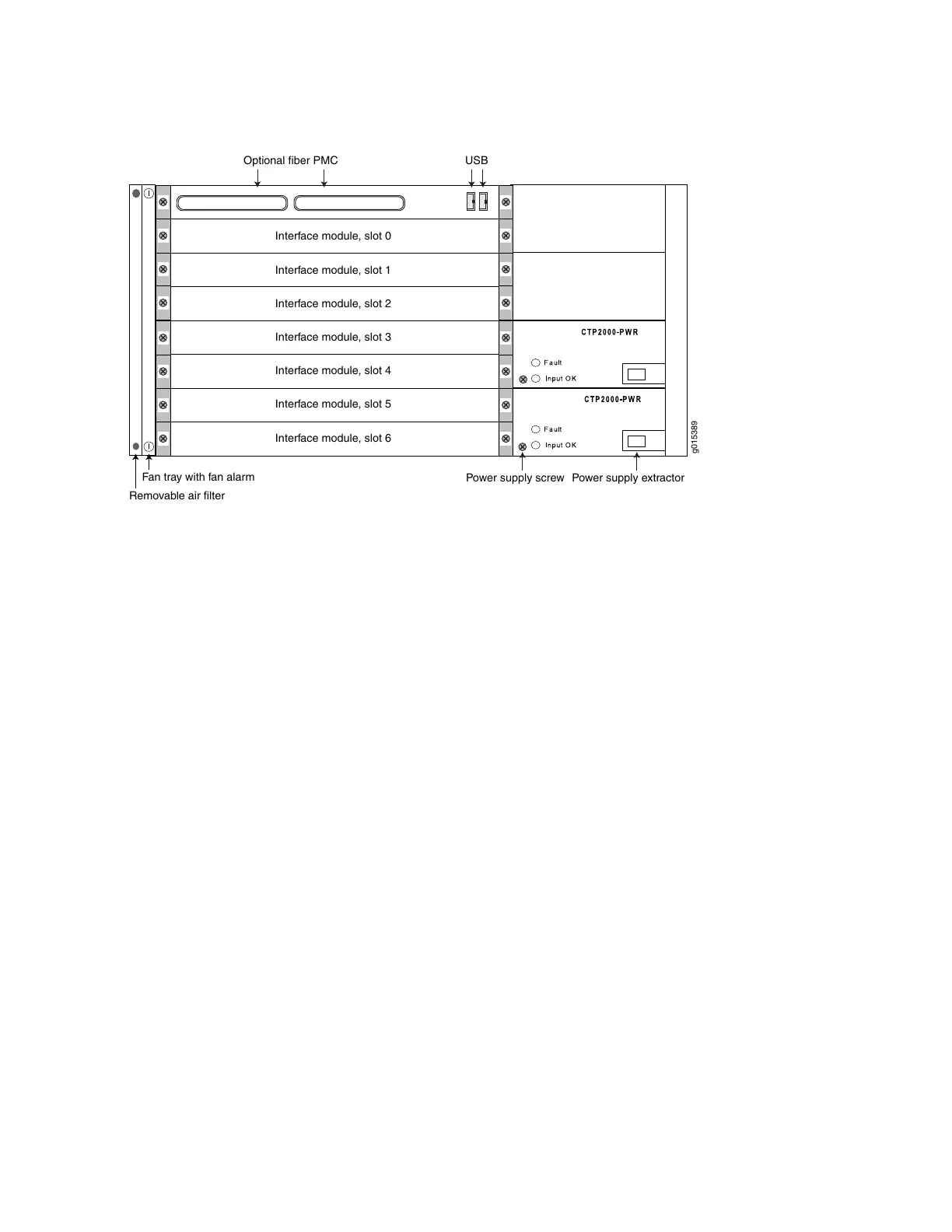

Figure 8: CTP2056 Chassis Containing the PP332 Processor (AC and DC Version, Front View)
USB
Optional fiber PMC
Power supply screw Power supply extractor
Interface module, slot 0
Interface module, slot 1
Interface module, slot 2
Interface module, slot 3
Interface module, slot 4
Interface module, slot 5
Interface module, slot 6
Fan tray with fan alarm
Removable air filter
g015389
The front panel comprises the following components (see Figure 8 on page 8):
•
Interface modules—Frame processing and forwarding engines.
•
Processor module—Two slots are available on this module for an optional fiber Gigabit Ethernet or Fast
Ethernet PMC module. The primary SC connector is on the left side. For more information about the
PMC module, see “CTP2000 PMC Module” on page 30 and “Installing a PMC on CTP2000 Platforms”
on page 99.
•
Power supply extractor—Push the button to eject the power supply module.
•
Fan tray and air filter.
The rear panel (RTM) comprises the following components (see Figure 9 on page 9 and
Figure 10 on page 10):
•
Clock module—Provides clock distribution between modules when the backplane is in use by voice
applications.
•
Power supply—Use a standard IEC power cord for the AC version. Use a 22-AWG fork terminal connector
for the DC version. Power redundancy is supported for the AC version and the DC version. A single IEC
power cord is sufficient to connect the redundant AC power supply modules, which keeps the chassis
turned on in the event of failure of one of the power supplies.
There are no power switches on CTP2000 Series DC models, so a readily accessible disconnect device
must be provided as part of the electrical installation of the unit. We recommend the 22-AWG wire for
DC power terminals.
8
