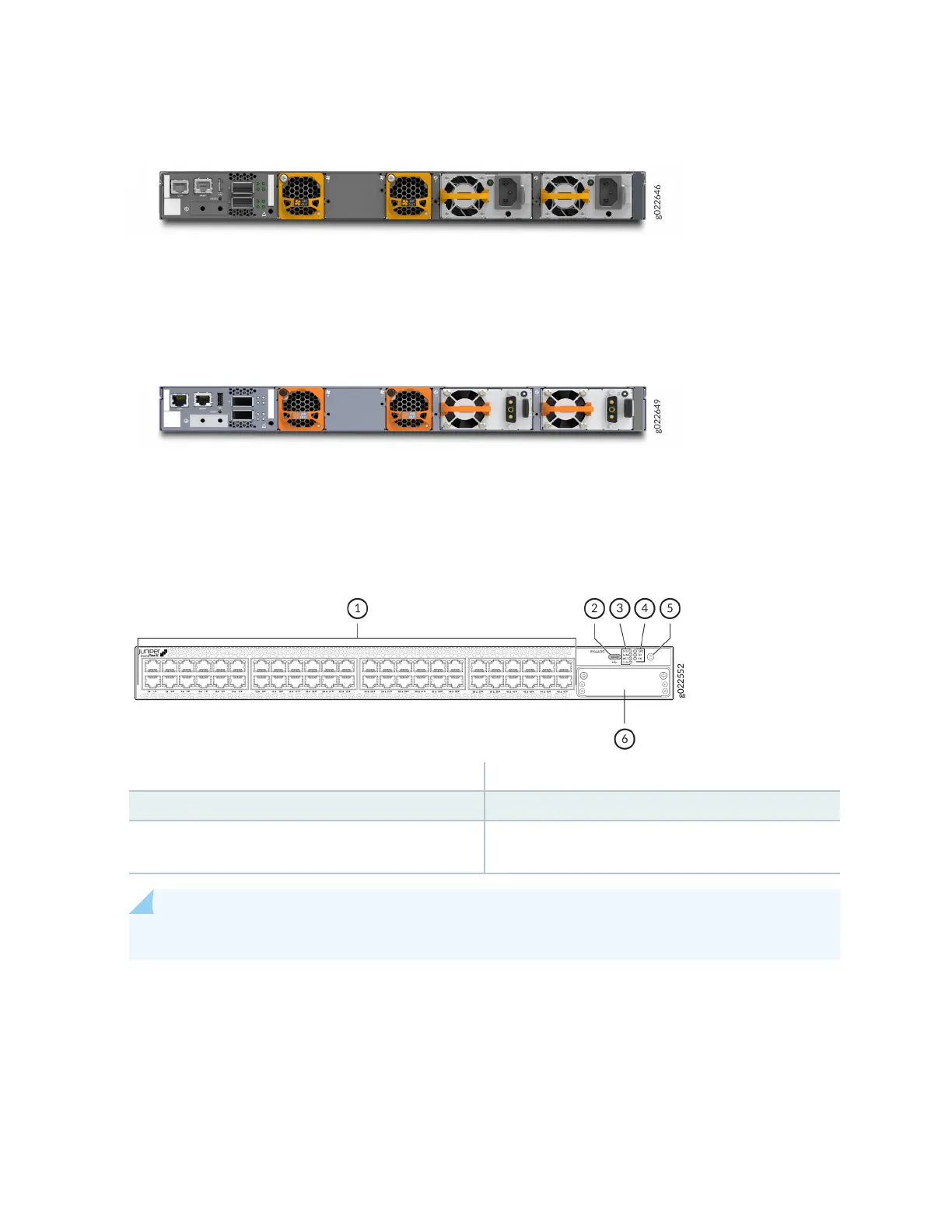

Figure 30: Rear View of an EX4400-48T Switch with AC Power Supplies
Figure 31 on page 46 shows the rear view of an EX4400-48T switch with DC power supplies.
Figure 31: Rear View of an EX4400-48T Switch with DC Power Supplies
Figure 32 on page 46 shows the components on the front panel of an EX4400-48T switch.
Figure 32: Components on the Front Panel of an EX4400-48T Switch
1—
10/100/1000BASE-T ports
4—
Port mode LEDs (labeled SPD, DX, and EN)
2—
USB-C console port
5—
Factory reset/mode buon
3—
Chassis status LEDs (labeled SYS, ALM, MST,
and CLD)
6—
Extension module slot
NOTE: We enabled the CLD LED feature in Junos OS Release 21.2R1.
EX4400-48T model supports 550-W AC or DC power supplies. You must not install AC and DC power
supplies in the same chassis.
Figure 33 on page 47 shows the components on the rear panel of an EX4400-48T switch with an AC
power supply.
