Juniper MX10008 - Page 155

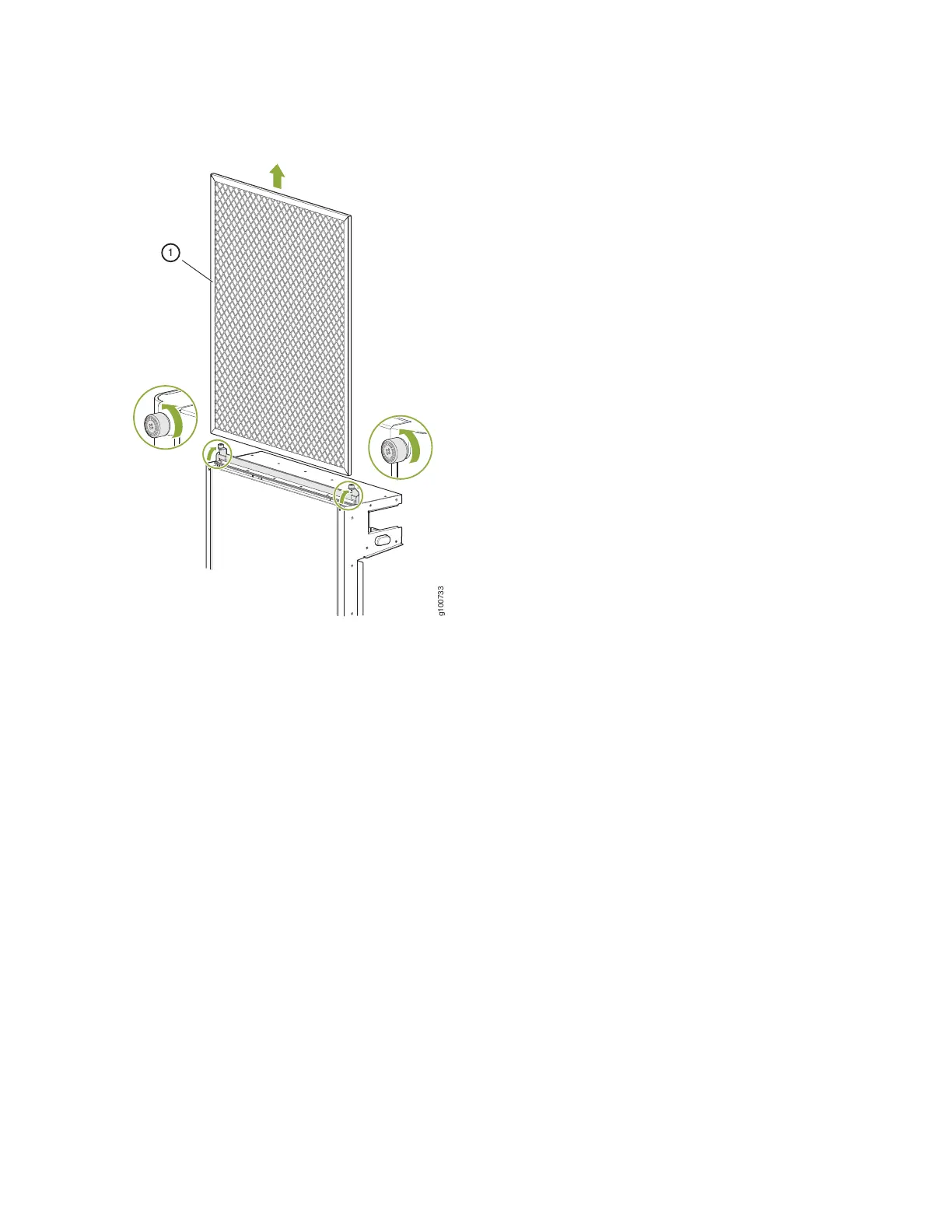

Figure 60: Air Filter in an MX10008 Front Panel
g100733
1
To install the air filter in the front panel:
1. Attach an ESD grounding strap to your bare wrist and connect the strap to one of the ESD points on
the chassis.
2. Turn the knob of the air filter frame anti-clockwise and move it over the top of the front panel.
156
