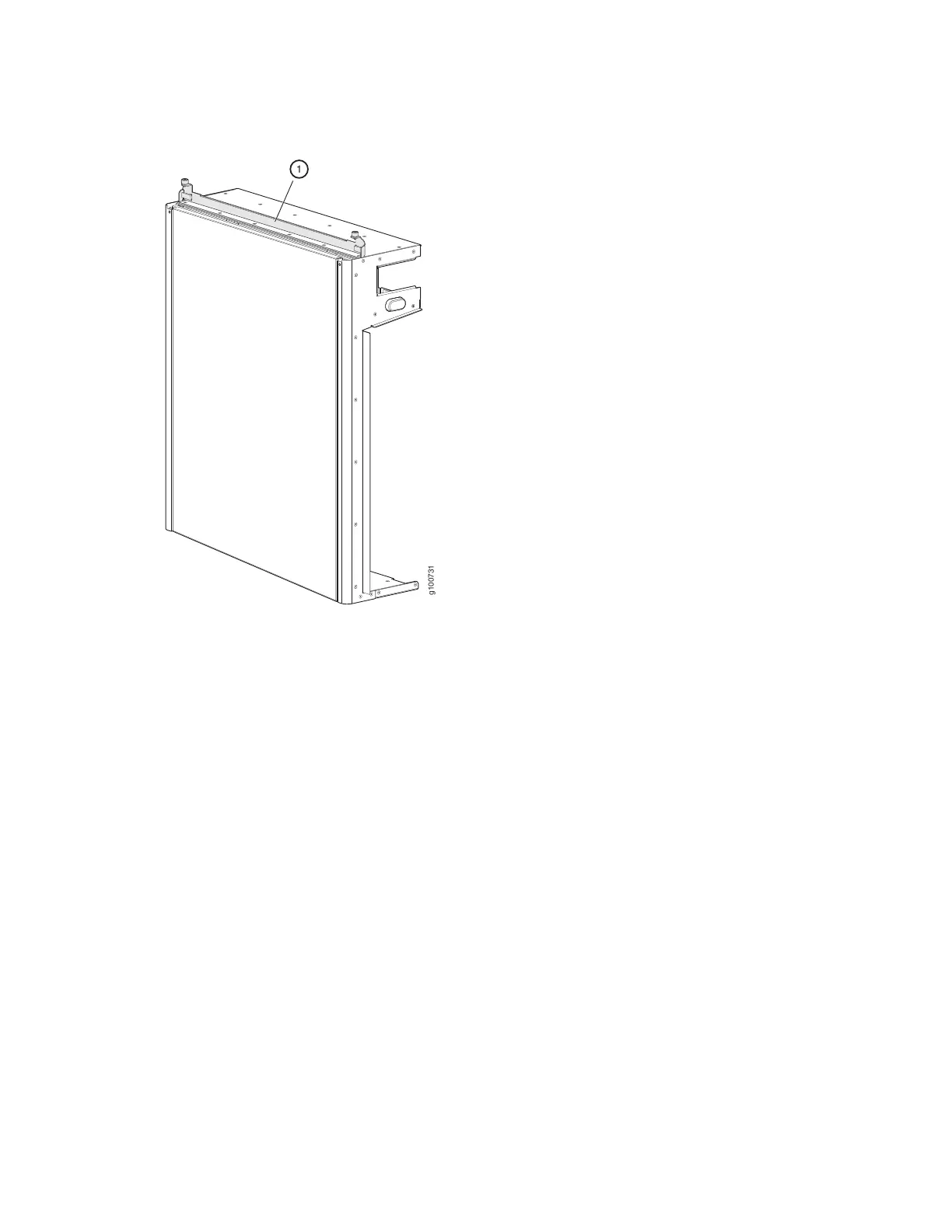

Figure 61: Air Filter Frame in an MX10008 Front Panel

g100731

1

3. Hold the air filter with both hands and insert it into the front panel until it stops.

157
