1. Attach the electrostatic discharge (ESD) grounding strap to your bare wrist, and connect the strap to
the ESD point on the chassis. There is an ESD point located next to the protective earthing terminal
and below PSU 5 on the MX10008 rear panel (see Figure 87 on page 193) and below PSU_9 on the
MX10016 (see Figure 88 on page 193).

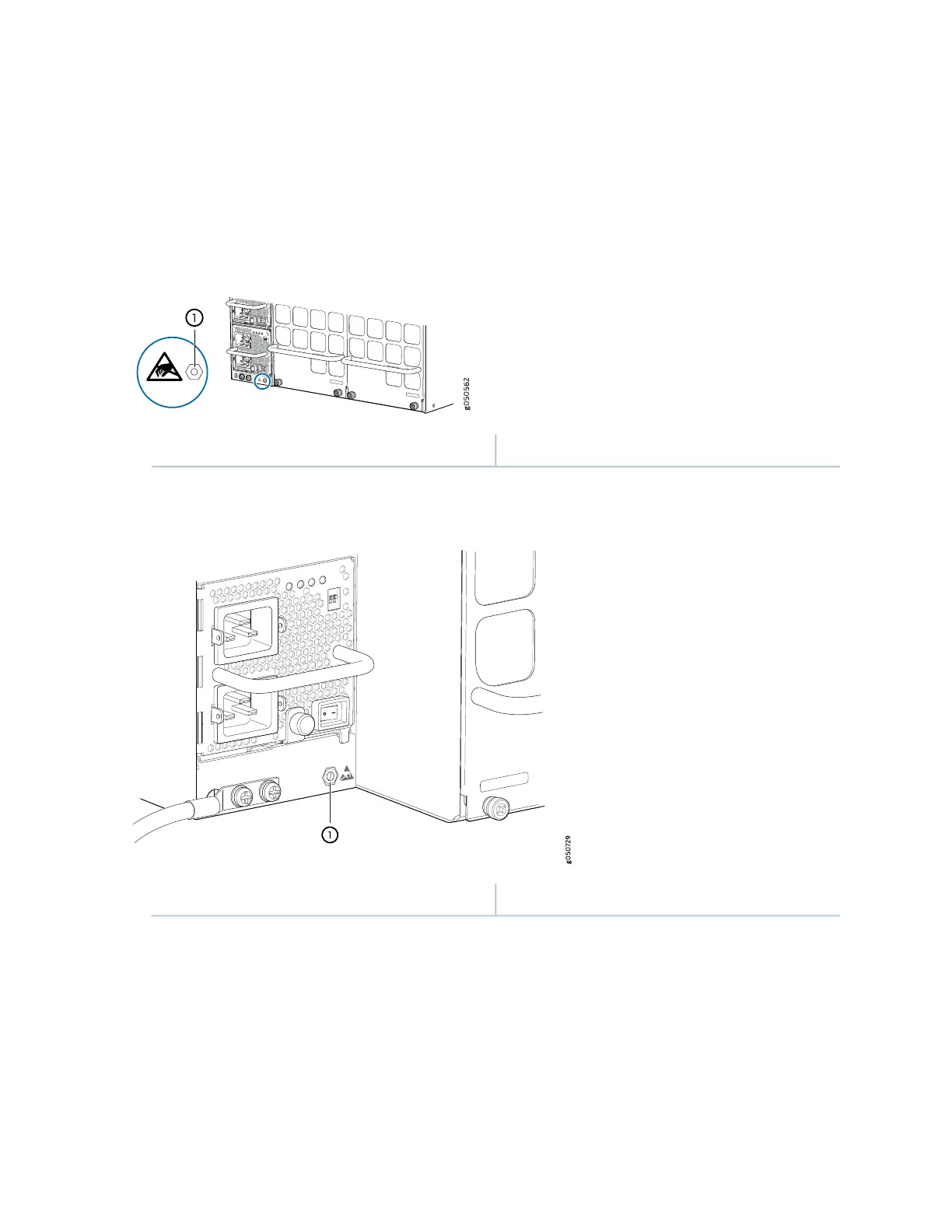

Figure 87: ESD Point on the Rear of an MX10008
1—ESD point
Figure 88: ESD Point on MX10016 Chassis Rear
1—ESD point
2. Set the Enable switch next to the appliance inlet on the power supply to the standby position.
3. Disconnect power from the router by performing one of the two following tasks:
•
If the AC power source outlets have a power switch, set them to the off (Ο) position.
•
If the AC power source outlets do not have a power switch, gently pull the male end of the power
cords connected to the power source outlets out of the outlets.
193
