Chassis Description
MX10008 is 13 U tall. Up to three MX10008 routers can fit in a standard 39 U rack with adequate cooling
and power. All key MX10008 router components are field-replaceable units (FRUs). Figure 1 on page 23
illustrates the key components visible from the front of the chassis.

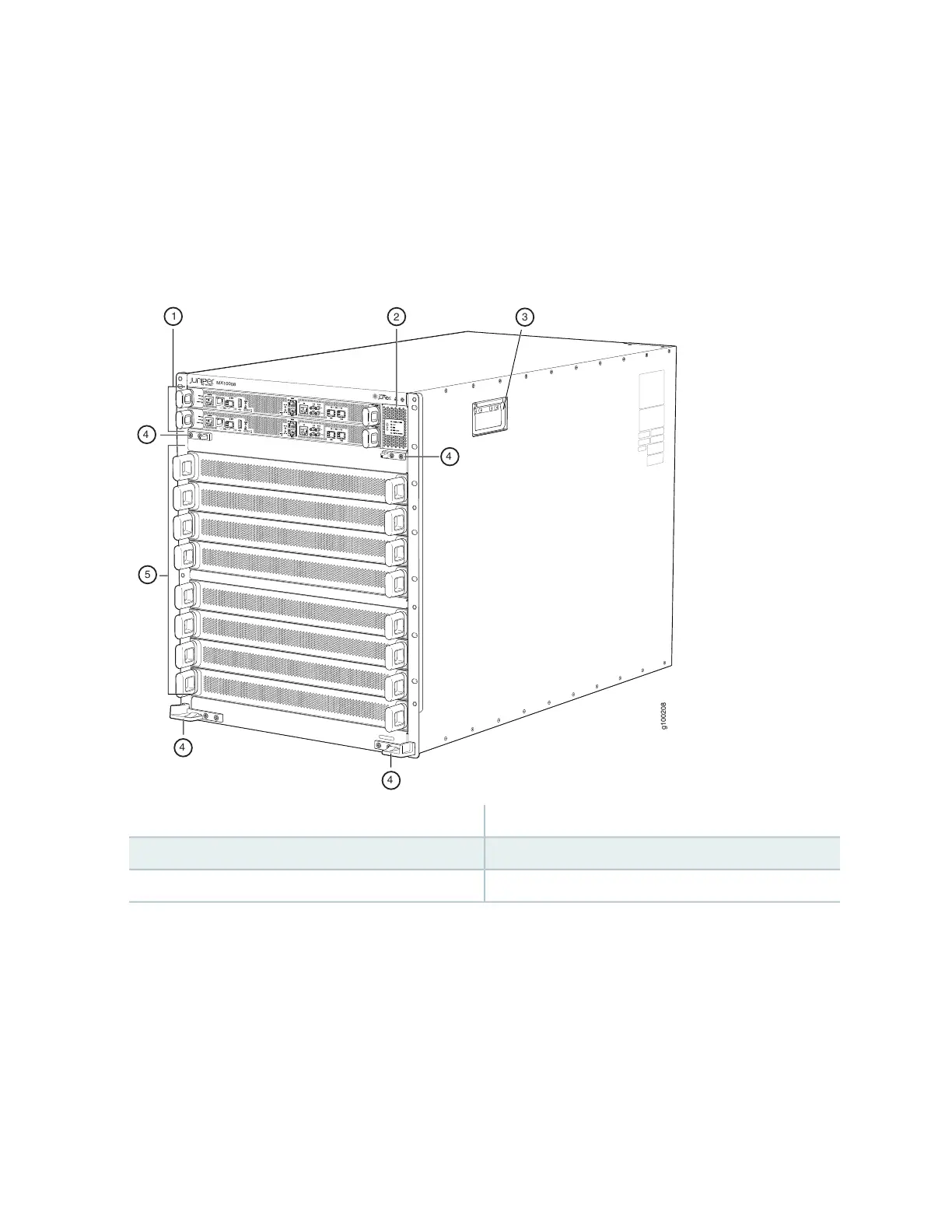

Figure 1: MX10008 Chassis Front
4—1— Installation holes for the front panelRouting and Control Boards
5—2— Line card slots 0-7 (numbered top to bottom)Status LED panel
3—Handles
Some chassis ship with an enhanced power bus to support the power needs of higher wattage line cards.
Chassis with the enhanced power bus have a modified Status Panel (see “MX10008 Status Panel LEDs”
on page 39).
Figure 2 on page 24 illustrates the components that are visible from the rear of the chassis.
23
