To install the cable management system (see Figure 153 on page 262):
1. Open the shipping carton of the cable management system and check that you have:
•
Two handle extensions
•
One cable tray

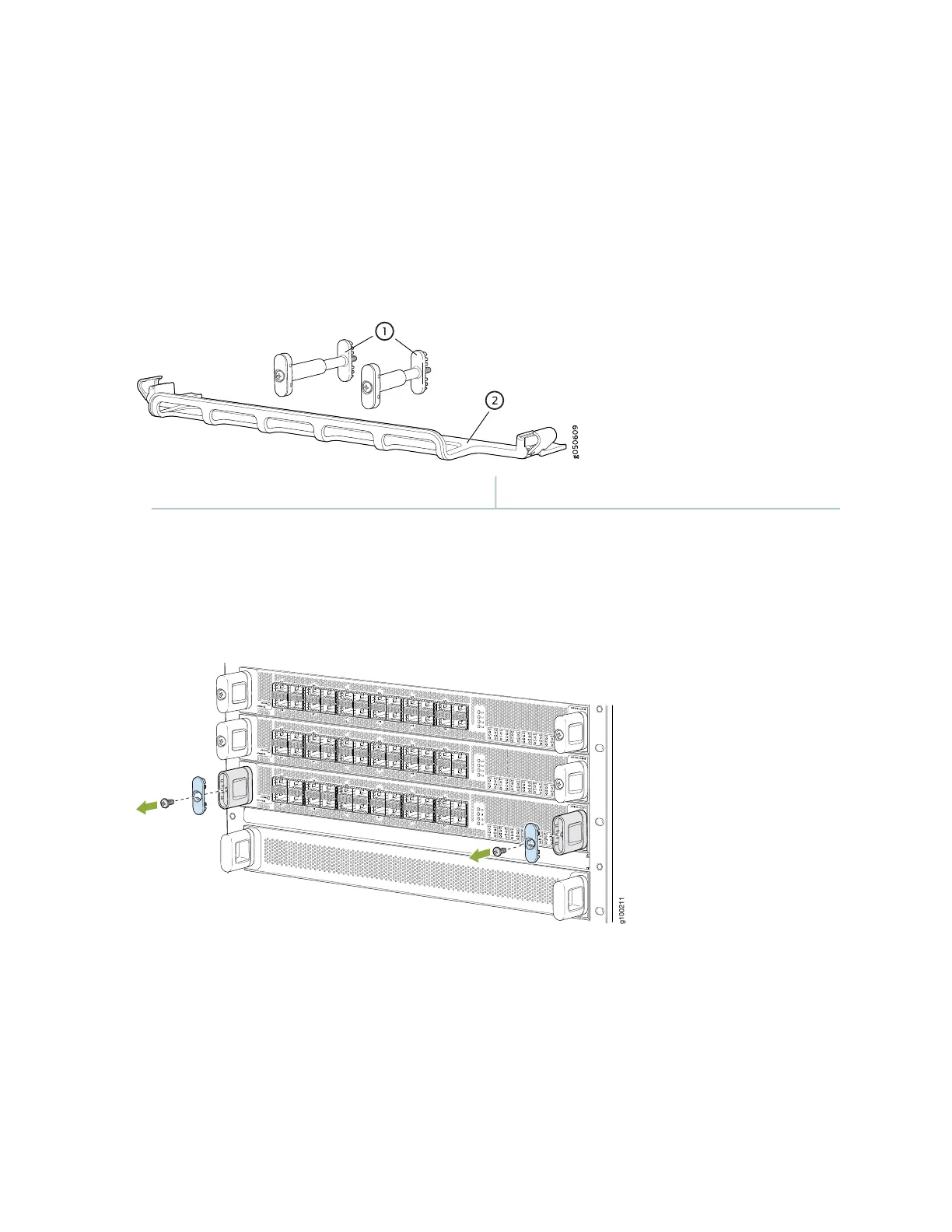

Figure 153: Cable Management System Components
2—1— Cable trayHandle extensions
2. Use the Phillips screwdriver to loosen and remove the screws on the two line card handles (see
Figure 154 on page 262).
Figure 154: Removing the Screws on the Line Card Handles
3. Replace the blue cap on each line card handle with the two handle extensions (see
Figure 155 on page 263).
