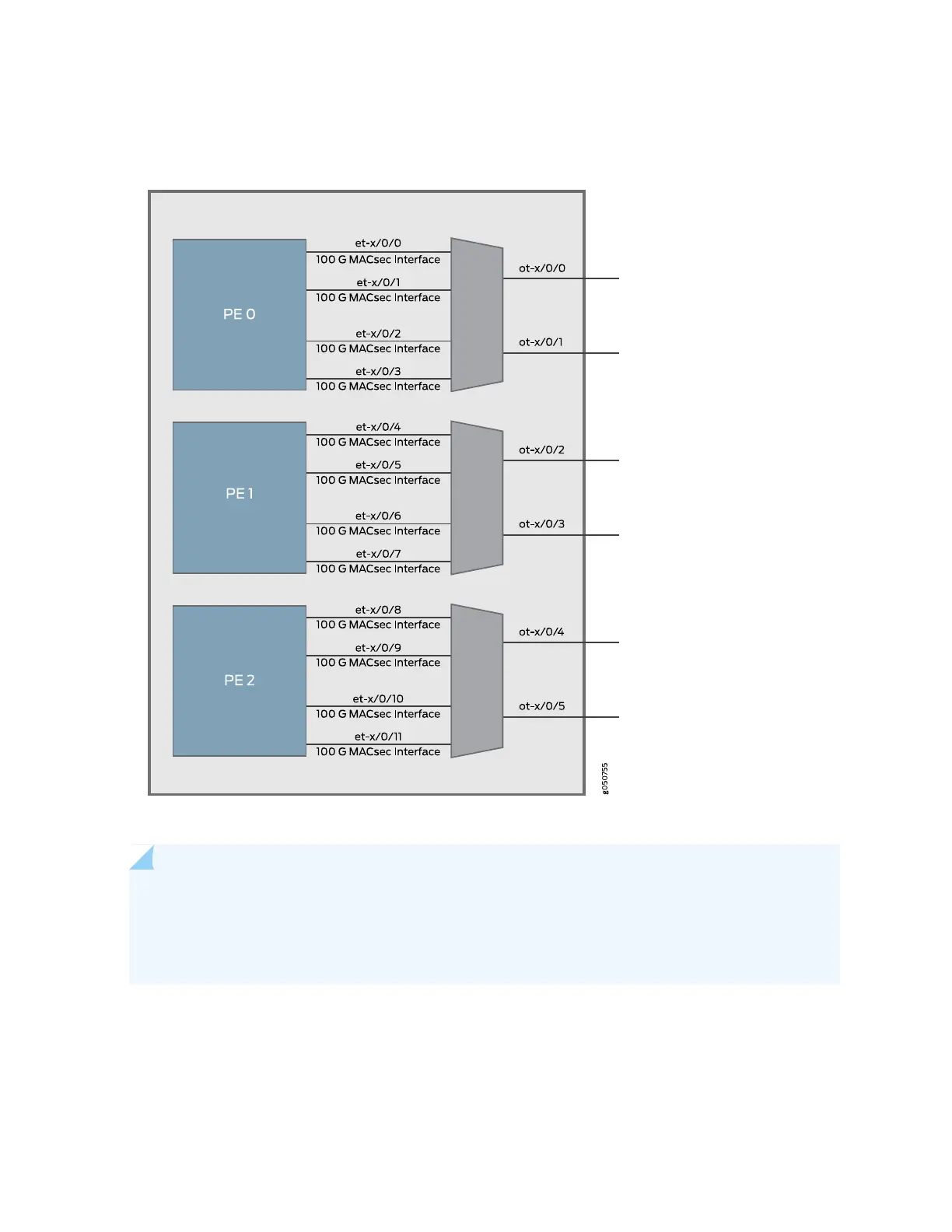

Figure 57: PTX10K-LC1104 Interfaces
NOTE: All optical properties are configured under the ot interface. Use the set interfaces ot-x/x/x
optics-options CLI command to set these options. Perform MACsec configuration on the et interface
using the set security macsec connectivity-association ca-name encryption-algorithm. Optical
transport network (OTN) related configurations also are done on the et interface.
Each of the six network ports can operate in one of three modulation formats; see Table 31 on page 102.
101
