of four PTX10K-LC1104 coherent line cards are supported in all models of the PTX10000 Packet Transport
Router.
The PTX10K-LC1104 line card is supported on Junos OS Release 17.4R1-S1 and later on PTX10008 and
Junos OS Release 18.3R1 on PTX10016.
This topic includes:
Hardware Features
The line cards in PTX10008 and PTX10016 universal routers combine a Packet Forwarding Engine and
Ethernet interfaces in a single assembly. Line cards are field-replaceable units (FRUs) that can be installed
in the line card slots on the front of the router. The line cards are hot-insertable and hot-removable; you
can remove and replace them without powering off the switch or disrupting switch functions. See
Figure 56 on page 100.

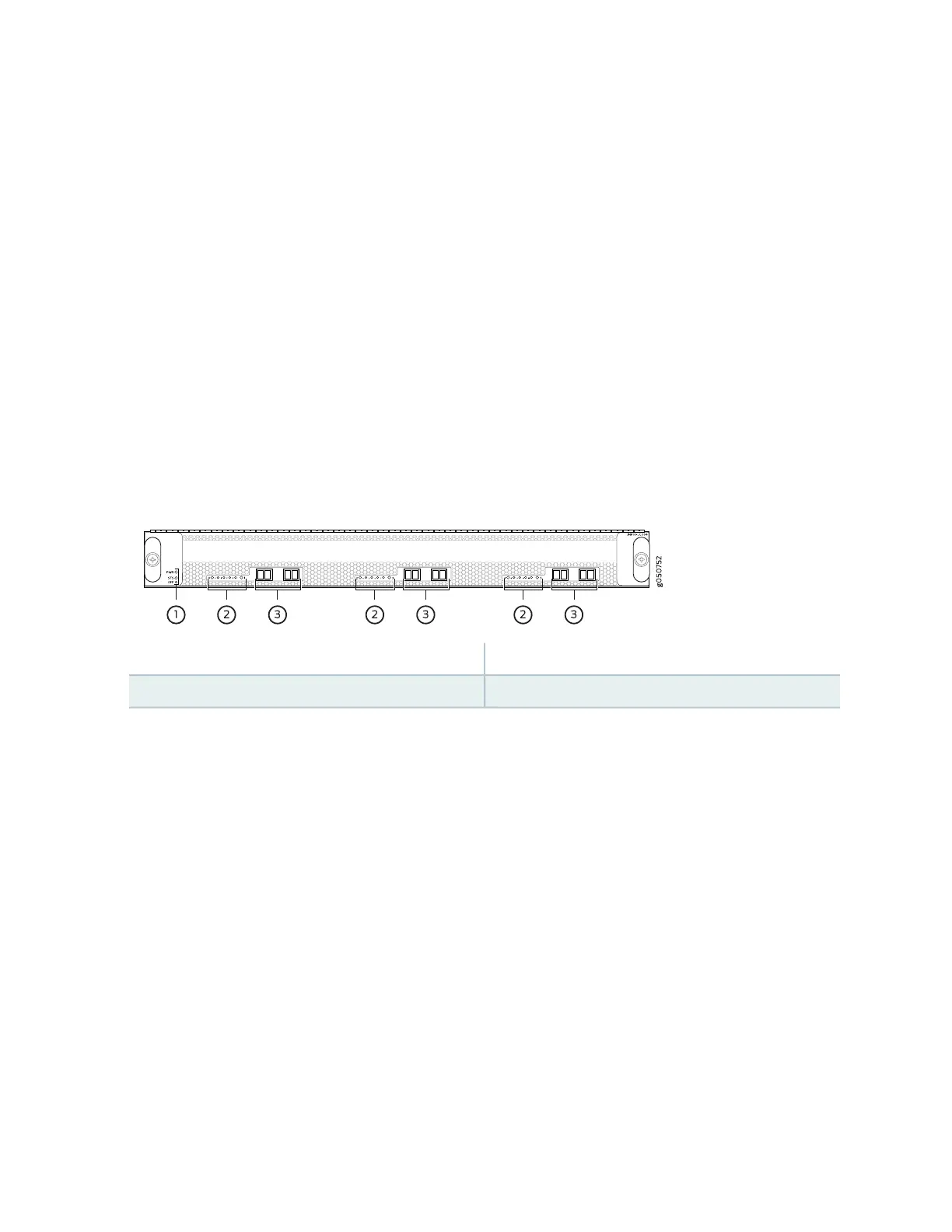

Figure 56: PTX10K-LC1104 Port Panel
3—1— Ports with embedded opticsPower and status LEDs
2—Network link and Ethernet link LEDs
Each PTX10K-LC1104 has six physical interfaces (ot-x/x/x) that connect to one of three built-in flexible
rate optical transponders for a maximum of 24 physical interfaces on a PTX10000 system.. Each transponder
connects four 100-Gigabit Ethernet logical interfaces (et-x/x/x) to one of three forwarding ASICs. The
ASICs through a MACsec to PHY to MACsec encryption is optionally supported on each 100-Gigabit
Ethernet interface. See Figure 57 on page 101.
