Table 45: Network Port Status and Activity LEDs for SFP+ Ports on a QFX10000-60S-6Q Line Card (continued)
DescriptionStateColor
The beacon function is enabled on one or more sub-channels.Slow blink, or blipYellow or Amber
The interface has a fault condition.Blinking
QSFP+ and QSFP28 Status and Activity LEDs
All QSFP+ and QSFP28 ports have an up or down indicator for each port and four bi-colored LEDs that
show port status and link activity based on whether or not the port is configured for channelization. See
Table 46 on page 143.

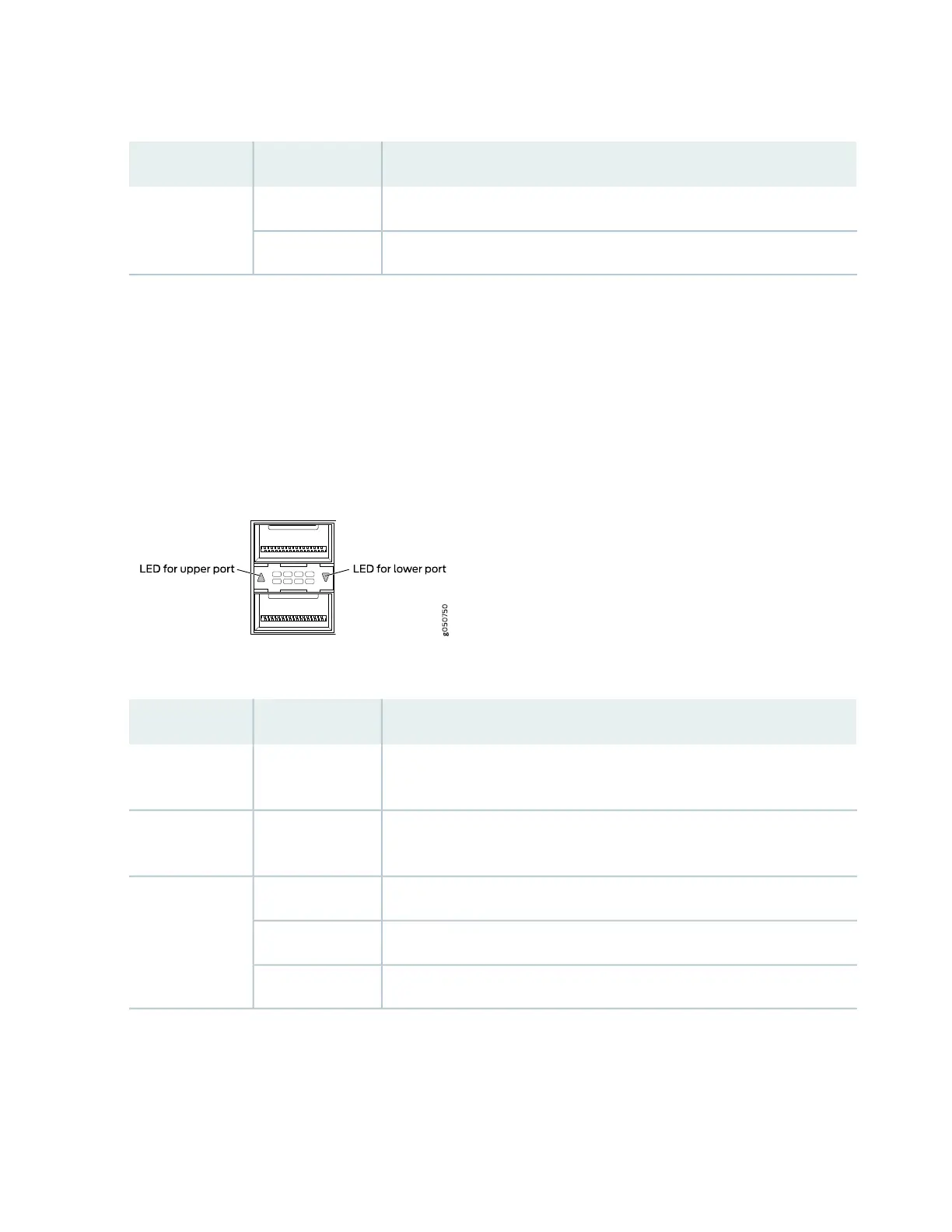

Figure 66: LED Indicators on QSFP+ and QSFP28 Ports on QFX10000-60S-6Q Line Card
Table 46: QSFP+ and QSFP28 Network Port Status and Activity LEDs
DescriptionStateColor
The port is administratively disabled, there is no power, the link is down, or
a transceiver is not present. All sub-channels are disabled.
OffUnlit
A link is established. When channelized, all sub-channels are up. When not
channelized, it indicates no activity.
On steadilyGreen
At least one channel link is up, but not all channels are up.On steadilyYellow or Amber
The beacon function is enabled on one or more sub-channels.Slow blink, or blip
One or more sub-channels has a fault condition.Blinking
SEE ALSO
