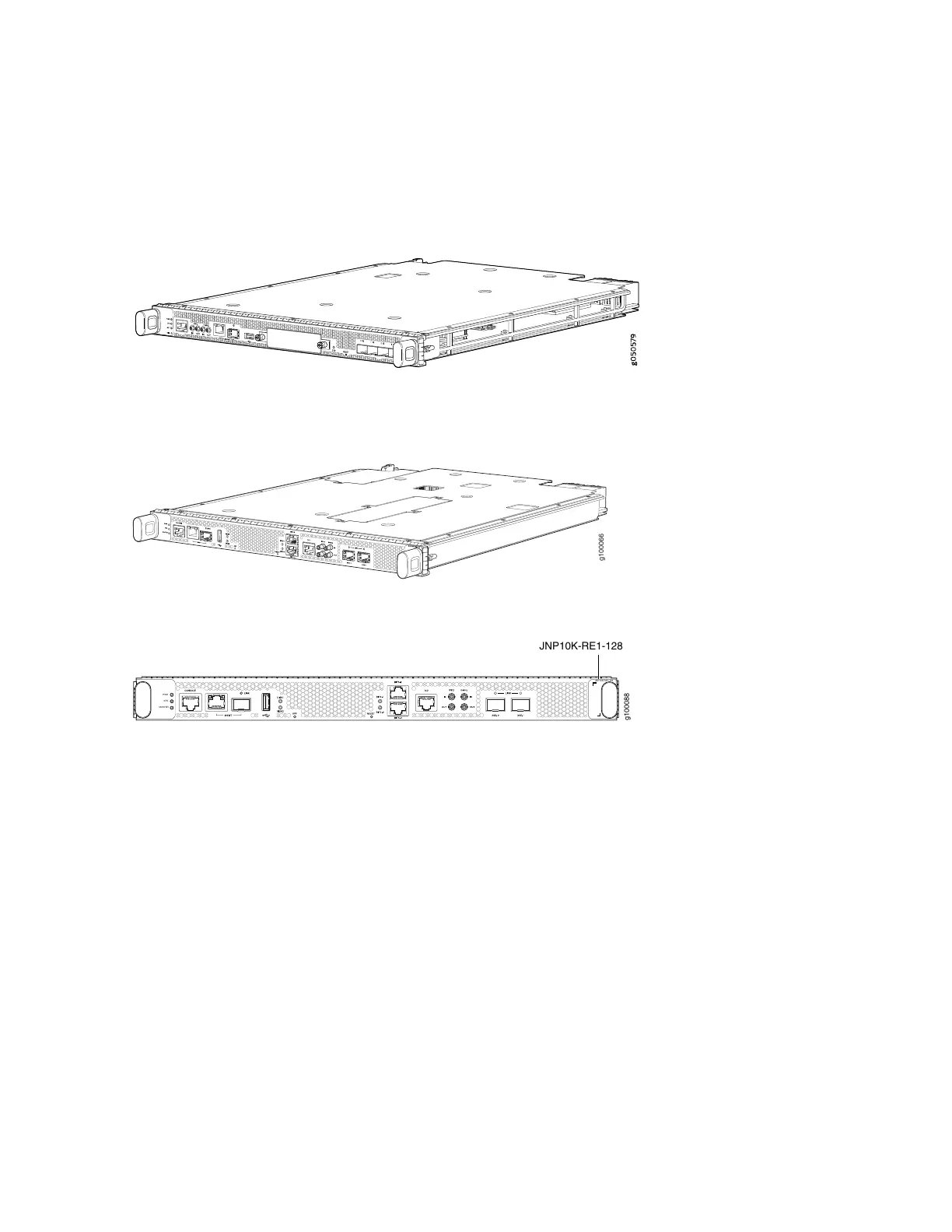

Figure 37: PTX10000 Routing and Control Board (JNP10K-RE0)
Figure 38: PTX10000 Routing and Control Board (JNP10K-RE1 and JNP-RE1-128)
PWR
STS
MASTER
JNP10K-RE1-128
g100088
JNP10K-RE1-128
This topic covers:
Routing and Control Board Functions
The Routing and Control Board integrates the control plane and Routing Engine functions into a single
management unit. Each RCB provides all the functions needed to manage the operation of the modular
chassis:
•
System control functions such as environmental monitoring
•
Routing Layer 2 and Layer 3 protocols
•
Communication to all components such as line cards, Switch Interface Boards (SIBs), and power and
cooling
•
Transparent clocking
•
Alarm and logging functions
79
