Routing and Control Board Components
Each RCB consists of the following internal components:
•
Quad-core 2.5 GHz CPU
•
32 gigabytes SDRAM
•
SATA SSD
Other standard interfaces are shown in Figure 39 on page 80.

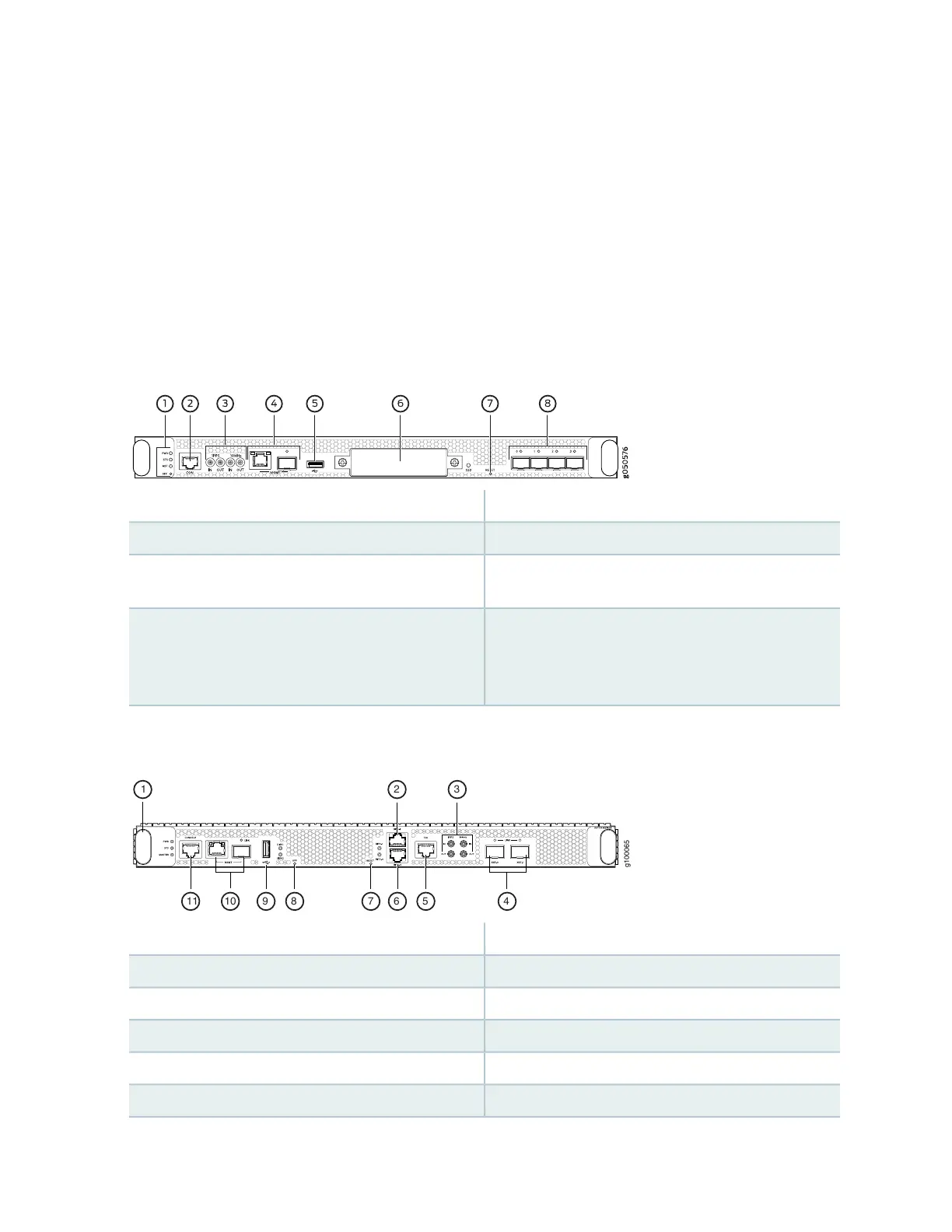

Figure 39: Routing and Control Board Faceplate (JNP10K-RE0)
5—1— USB 2.0 portRCB status LEDs
6—2— Secondary 50 GB SATA SSD slotConsole port
7—3— Reset buttonPTP-capable connections: SMB In, SMB Out, 10 MHz
In, 10 MHz Out
8—4— Four SFP+ ports (reserved for future use)Ethernet management ports: RJ-45 for
10/100/1000 BASE-T and small-form factor
pluggable (SFP) for fiber. If both copper and fiber
cables are installed, the RJ-45 is the default.
Figure 40: Routing and Control Board Faceplate (JNP10K-RE1 and JNP10K-RE1-LT)
7—1— Reset buttonHandles
8—2— OFF LEDBITS-0 clock port
9—3— USB portGPS clock ports
10—4— Management (MGMT) portsXGE-0 and XGE-1 JCS ports
11—5— Console (CONSOLE) portToD—Time-of-day (TOD) port
6—BITS-1 clock port
80
