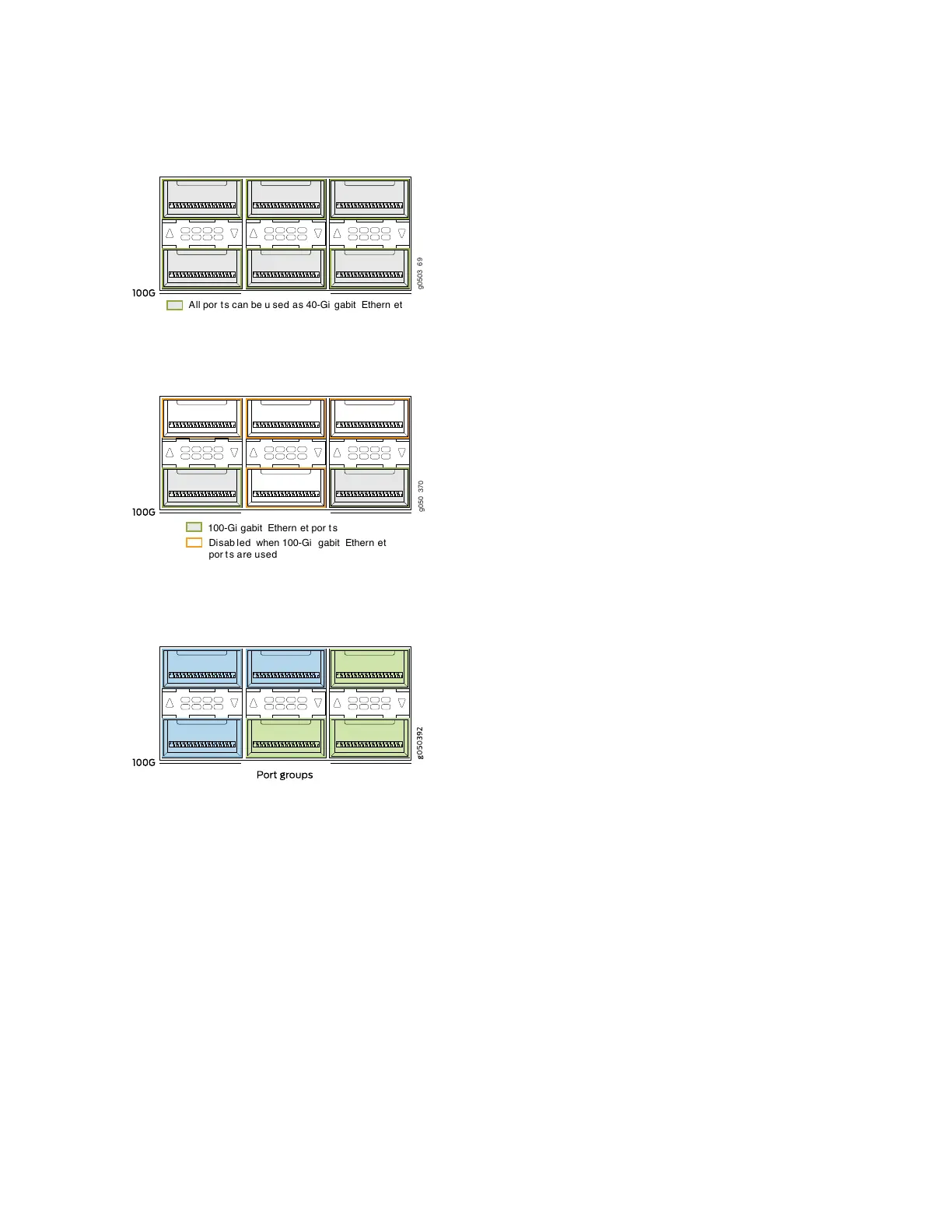

Figure 52: All Ports Are Enabled for Channelized 4x10-Gigabit Ethernet by Default
g0503 6 9
All por t s can be u sed as 40-Gi gabit Ethern et
Figure 53: 100-Gigabit Ethernet Ports
g050 370
100-Gi gabit Ethern et por t s
Disab led when 100-Gi gabit Ethern et
por ts are used
Figure 54: 100-Gigabit Ethernet Port Disables Two Associated 40-Gigabit Ethernet Ports
The 40-Gigabit Ethernet ports can operate independently, be channelized into four 10-Gigabit Ethernet
ports, or bundled with the next two consecutive ports and channelized into twelve 10-Gigabit Ethernet
ports as a port range. Only the first and fourth port in each 6XQSFP cage are available to channelize a port
range (see Figure 55 on page 97). The port speed must be configured using the set chassis fpc pic port
speed command. For example, to channelize the first router port, use the set chassis fpc 0 pic 0port 1speed
10g command.
