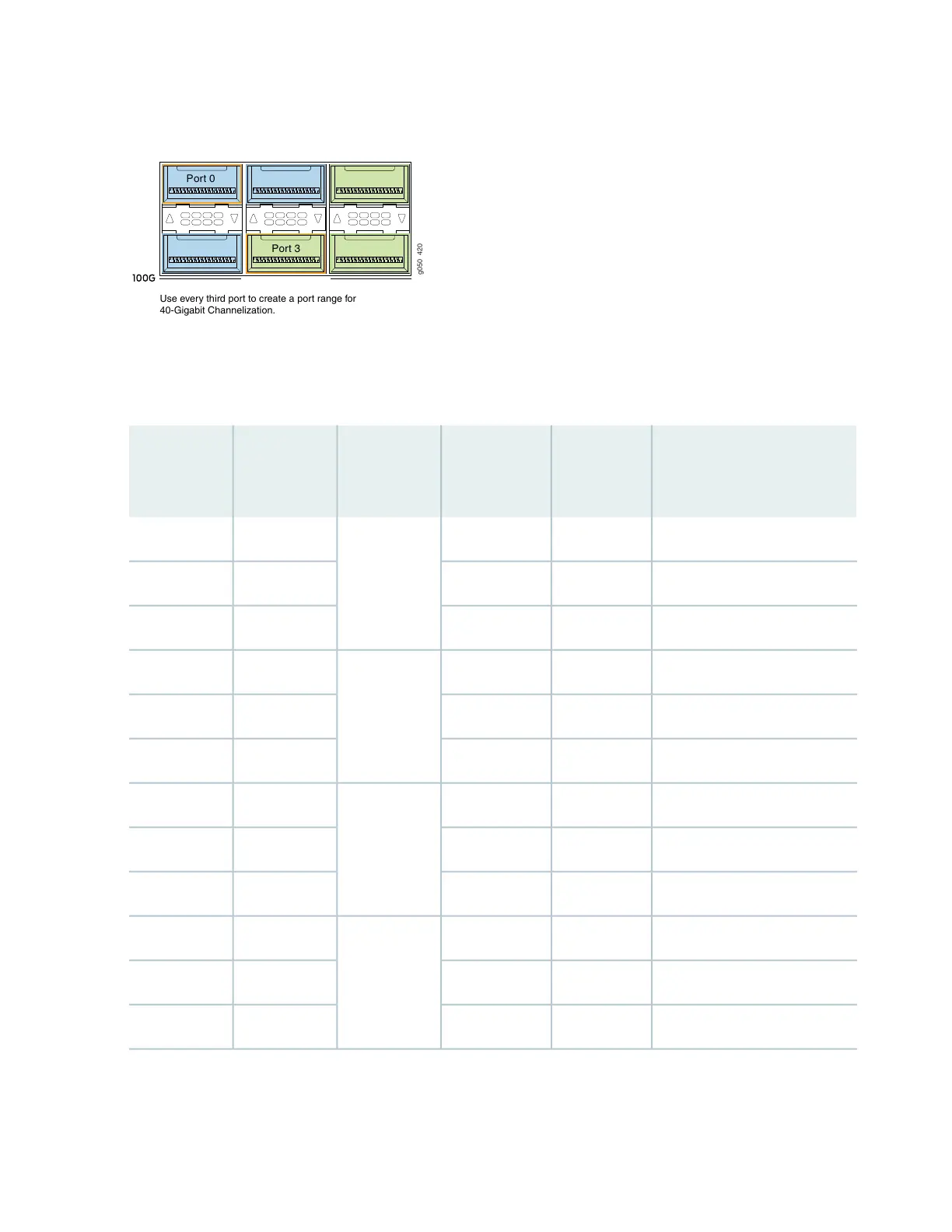

Figure 55: Use the First and Fourth Port in Each 6XQSFP Cage to Channelize a Port Range
g050 420
Use every third port to create a port range for
40-Gigabit Channelization.
Port 0
Port 3
Table 30 on page 97 shows the available combinations for the ports. On the LC1102, the ports are enabled
by default.
Table 30: PTX10K-LC1102 Port Mapping
100-Gigabit Ethernet
Disables
100-Gigabit
Ethernet
40-Gigabit
Ethernet
4X10-Gigabit
Channelized
Port Group
4X10-Gigabit
EthernetPort Number
––✓✓✓0
0, 2✓✓✓1
––✓✓2
––✓✓✓3
––✓✓4
3, 4✓✓✓5
––✓✓✓6
6, 8✓✓✓7
––✓✓8
––✓✓✓9
––✓✓10
9, 10✓✓✓11
