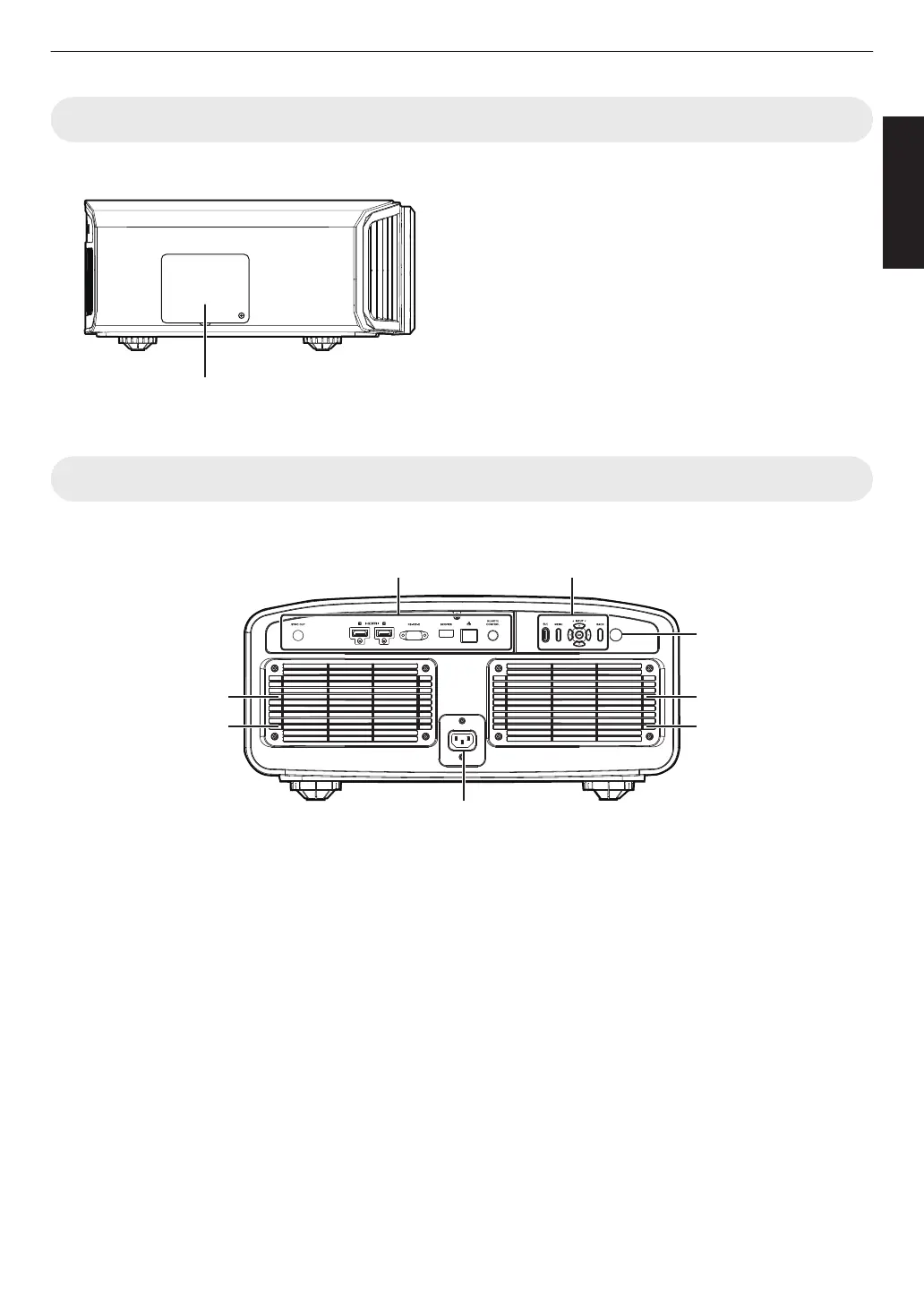

Main Unit - Side

4 8

Lamp Cover

When replacing the light source lamp, remove this cover.

(P. 91)

Main Unit - Rear

x y z 5 6 7

Input terminals

For details

on the terminals, refer to “Main Unit - Input

Terminals”P. 23.

Operation panel

For more details, please refer to the “Operation

panel”P. 22.

Remote Sensor (rear)

Please aim the remote control at this area when using

it.

* There is also a remote sensor at the front.

Power input terminal

Connect the supplied power cord to this terminal.

Air Inlets

The inlets take in air to cool down the internal

temperature.

not block the inlet. Do not blow hot air on the inlet.

Doing so may cause the unit to malfunction.

Filter Cover

To perform maintenance of the filter, remove this

cover. (P. 94)

Getting Started
