Input terminals

Please see “Main Unit - Input Terminals”P.

23 for

more details about the terminals.

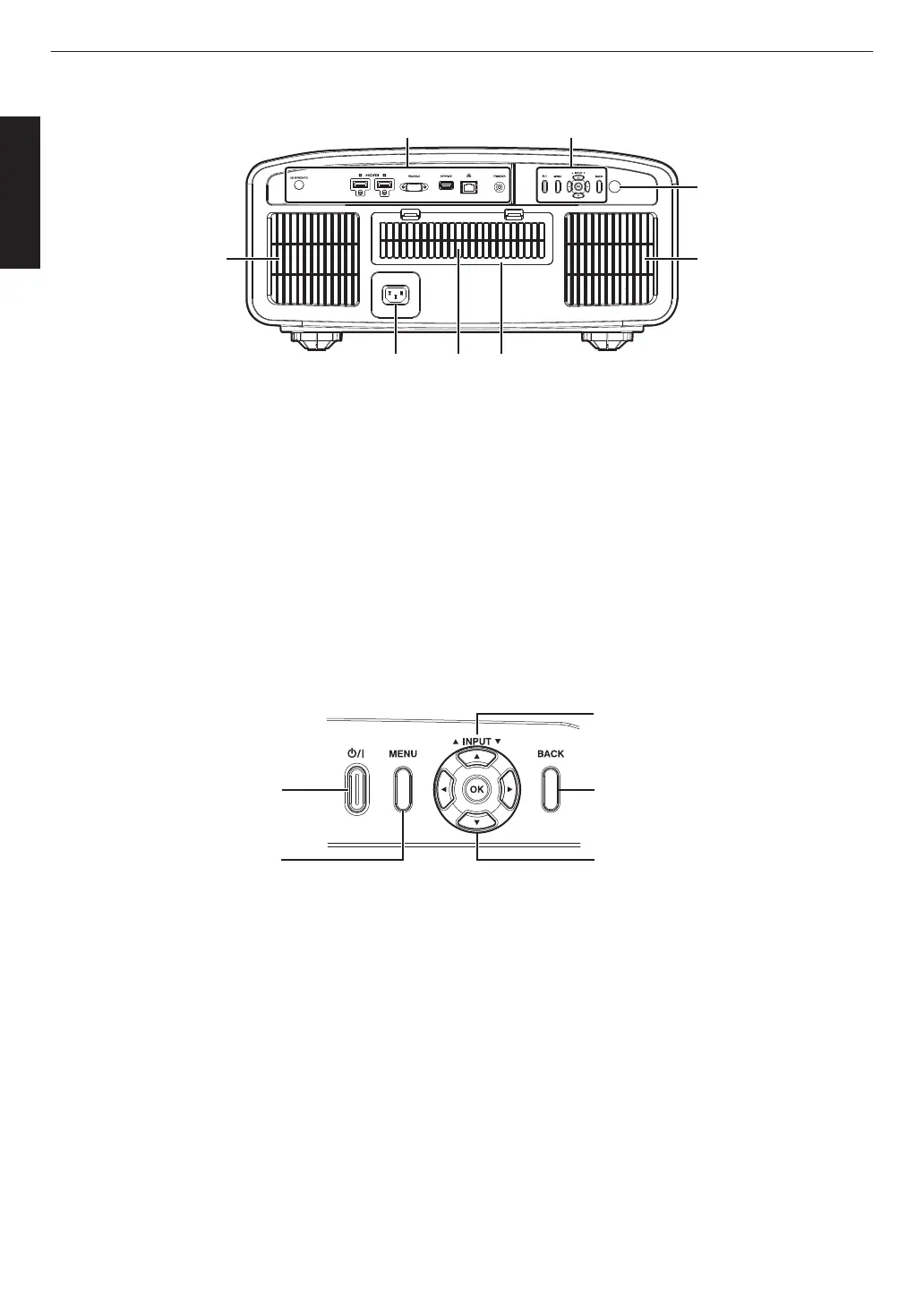

Operation panel

For more details, please refer to the “Operation

panel” in the diagram below.

Remote Sensor (rear)

Please aim the remote control at this area when using

it.

* There is also a remote sensor at the front.

Power input terminal

Connect the supplied power cord to this terminal.

Air Inlets

The inlets take in air to cool down the internal

temperature.

not block the inlet. Do not blow hot air on the inlet.

Doing so may cause the unit to malfunction.

Filter Cover

To perform maintenance of the filter, remove this

cover. (P. 94)

Operation panel

[MENU]: Displays the menu

[BACK]: Returns to the previous menu

[JKH I] keys: Selects an item

[OK]: Confirms a selection

[J INPUT K]: Switches the input

A: Turns “on”/“off” the

power
